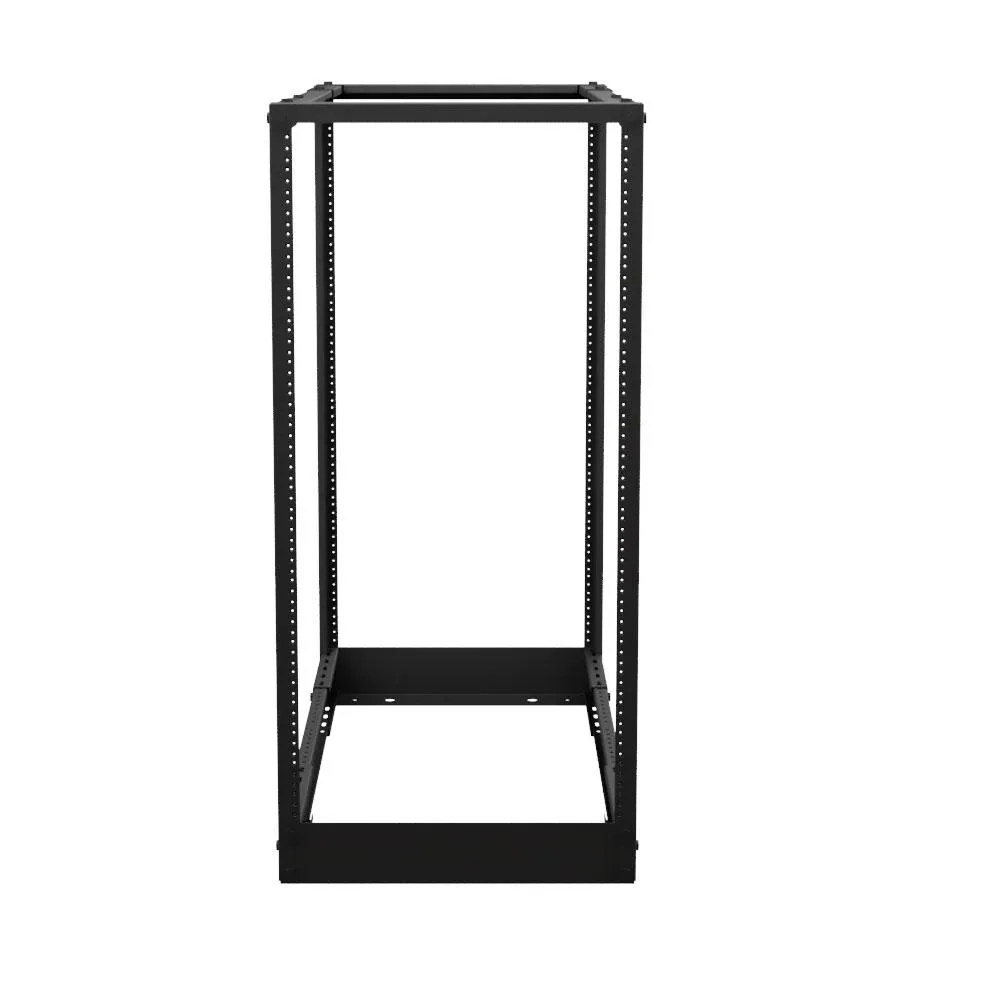

Black open-frame 22U server rack, adjustable depth 22 to 40 inches, 14 gauge steel, caster compatible

NavePoint

NavePoint 22U 4-Post Adjustable Server Rack 12-24 Threaded Caster Compatible Black

SKU CH-T4XP-A6DSC

Open-frame 19-inch rack with adjustable 22-to-40-inch depth, 14-gauge steel construction and 661.38-pound static capacity

  • TypeRack Mount Cabinet
  • ColorBlack
  • Numbered mounting positions simplify installation
  • 12-24 threaded rails accept standard rack-mount hardware
  • 14 gauge cold-rolled steel supports 661.38 lb stationary load
  • Adjustable depth from 22 in to 40.16 in fits varied equipment
  • Optional casters enable pre-configuration and easy relocation

22U Adjustable Server Rack

The NavePoint 4-post rack provides 22U of 19-inch mounting space for network and server equipment in telecom or data rooms. Its open-frame design allows flexible configuration around cabling and airflow needs. Numbered mounting positions simplify alignment during assembly. The rack ships with 20 x 12-24 screws and plastic washers for immediate installation.

Sustained Load Capacity

Constructed from 14 gauge cold-rolled steel with a black powder-coated finish, the frame supports a stationary load of 661.38 pounds. The self-squaring design with bolt-down provisions maintains structural integrity under continuous weight. Adjustable depth ranges from 22 to 40 inches, letting the chassis accommodate full-size servers without flex. Overall dimensions measure 20.3 inches wide by 44 inches high at maximum depth.

Upgrade From Wall Mounts

This rack replaces wall-mounted shelves or 2-post frames when equipment depth exceeds their fixed limits or when rear access becomes critical. The jump is worth it when you need 40.16 inches of maximum mounting depth for full-size servers. Optional casters (sold separately) add mobility for pre-configuration before final placement. It is not suited for environments requiring enclosed side panels or integrated cooling ducts.

Highlights

  • Numbered mounting positions simplify installation
  • 12-24 threaded rails accept standard rack-mount hardware
  • 14 gauge cold-rolled steel supports 661.38 lb stationary load
  • Adjustable depth from 22 in to 40.16 in fits varied equipment
  • Optional casters enable pre-configuration and easy relocation

Specifications

BrandNavePoint
TypeRack Mount Cabinet
ColorBlack

Questions about this item

How much heat or noise does this 22U rack generate when fully loaded and running all day?

The open-frame steel rack itself produces no heat or noise; only the installed equipment contributes to thermal output and sound levels.

What hardware must I already own to mount gear in this 12-24 threaded rack?

You need 19-inch rack-mount equipment with matching 12-24 threaded rails or cage nuts; the rack includes 20 screws and plastic washers to get started.

Will my older 19-inch servers fit the adjustable 40.16-inch depth of this 4-post rack?

Yes, the mounting depth adjusts from 22 to 40.16 inches, so legacy 19-inch gear within that range secures directly to the threaded rails.
