Black 18U wall-mount server cabinet with welded frame and one fan

NavePoint

NavePoint 18U Wall Mount Server Rack Consumer Series Fan

SKU CH-1MSM-5GQ1X

Wall-mounted 18U cabinet with welded frame, 110 lb capacity and included fan for network gear

  • TypeWall-Mounted
  • Rack Units18U
  • ColorBlack
  • 18U wall-mount design saves floor space
  • 110 lb capacity supports heavy network gear
  • 450 mm depth fits standard equipment
  • 75 in usable depth allows full device insertion
  • Included fan provides active cooling

18U Wall-Mount Cabinet for Small LANs

This 18U wall-mounted cabinet suits installers who need secure equipment storage when floor space is limited. The welded steel frame supports up to 110 pounds of network and voice gear. A 450 mm overall depth provides 13.75 inches of usable rail-to-rail space for active devices. Locking doors protect the hardware in retail units, remote sites or compact server rooms.

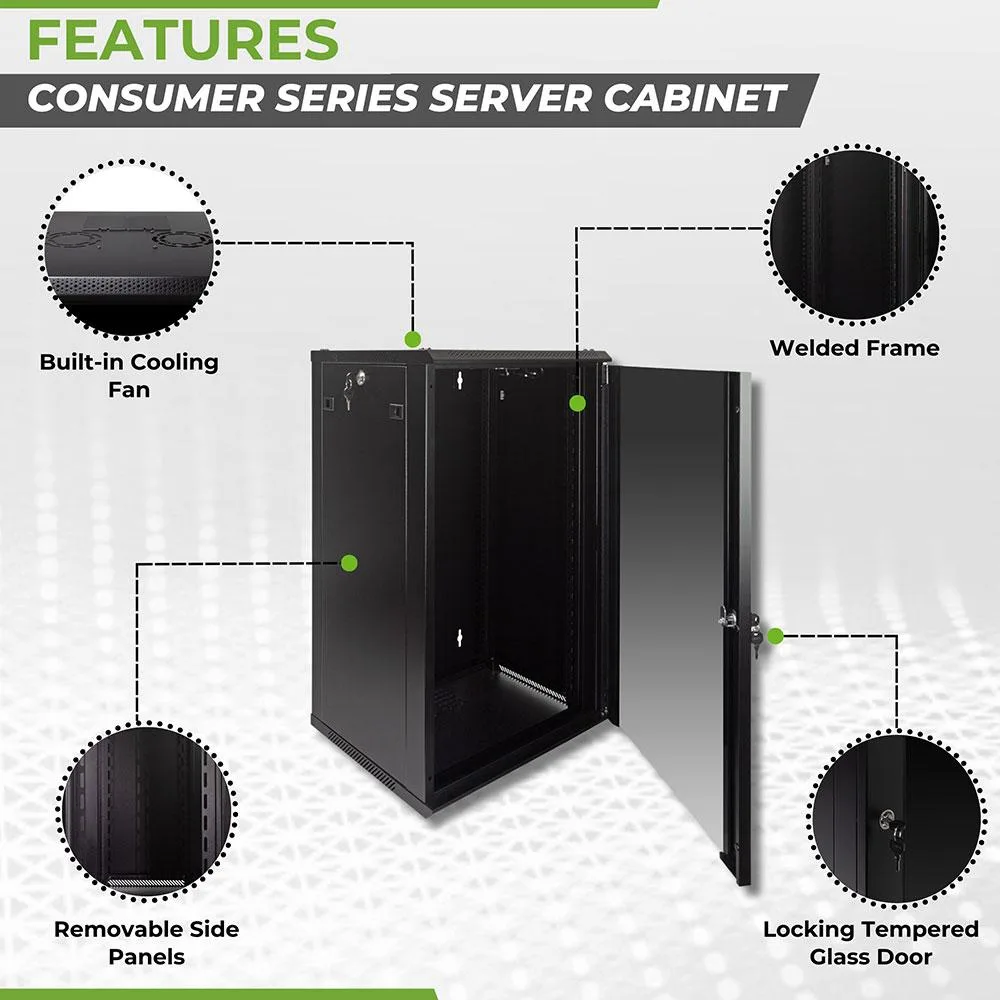

Included Fan and Cage-Nut Rails

One fan ships with the enclosure to promote airflow through the vented panels. Cage-nut style rails accept standard square-hole mounting hardware, so installers can bolt patch panels, switches or small servers directly without extra adapters. The fan and rail kit together reduce the need for separate accessory orders on typical small-LAN deployments.

Wall Installation and Depth Constraints

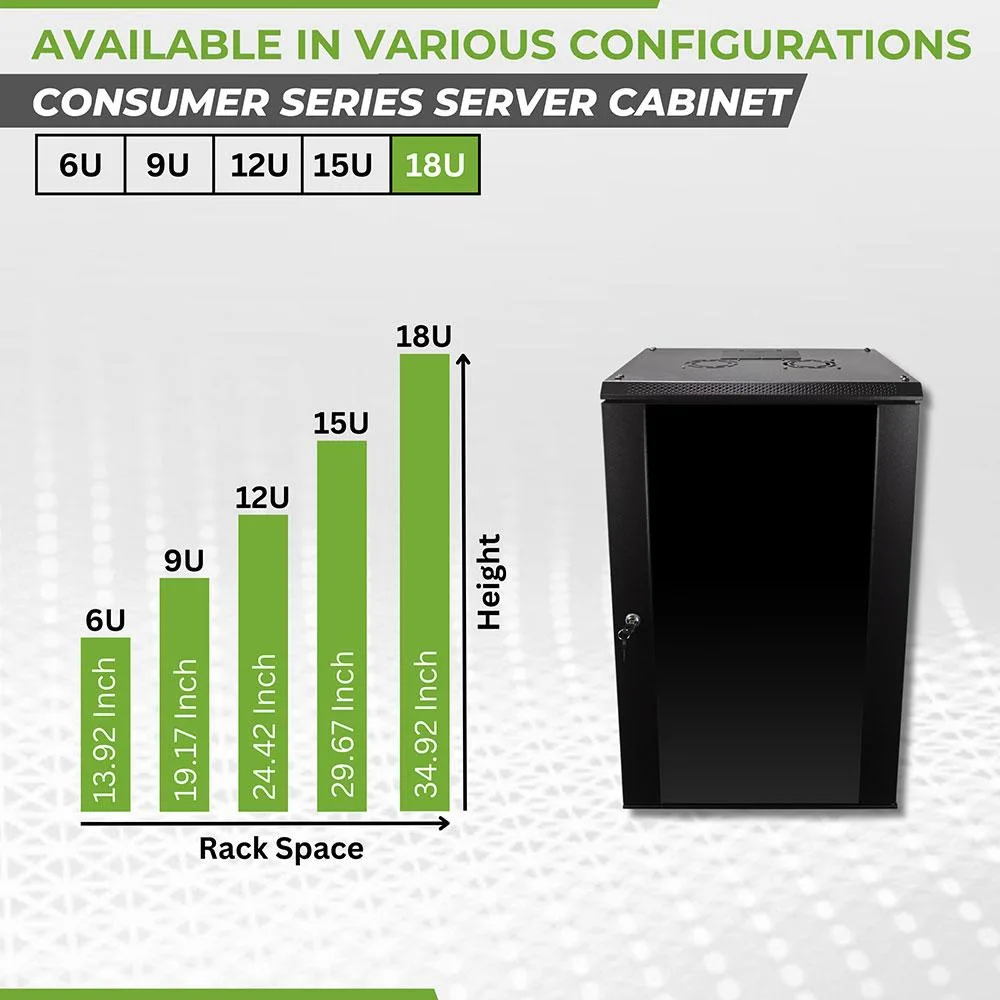

Mounting requires suitable wall structure and hardware rated for the loaded cabinet weight. The 17.72 inch projection from the wall and 34.92 inch height determine the clearance needed above and in front of the unit. Installers must verify that the 13.75 inch usable depth accommodates their deepest device before purchase, as deeper chassis will not fit.

Highlights

  • 18U wall-mount design saves floor space
  • 110 lb capacity supports heavy network gear
  • 450 mm depth fits standard equipment
  • 75 in usable depth allows full device insertion
  • Included fan provides active cooling

Specifications

BrandNavePoint
TypeWall-Mounted
Rack Units18U
ColorBlack

Questions about this item

Will the single included fan need replacing before the cabinet itself?

One fan is supplied; its lifespan depends on duty cycle and environment, so plan to monitor airflow and replace the unit if bearing noise or reduced output appears.

What stops me from loading the full 110 lb capacity continuously?

The welded frame is rated for 110 lb total; sustained loads at that limit rely on proper wall anchoring and even weight distribution across the cage-nut rails.

How loud and hot does the cabinet get with the fan running all day?

The single fan provides active ventilation through the vented panels; actual noise and temperature rise vary with installed equipment and room ambient conditions.
