Black 12U open-frame wall rack with reversible swing gate, 24 inch depth

NavePoint

NavePoint 12U Wall Mount Open Frame Server Rack, Swing Gate, 24 Inch Depth

SKU CH-0F13-06TQT

Wall-mounted 12U open-frame rack with a reversible 180-degree swing gate for 19-inch servers and networking gear

  • TypeRack Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • 12U wall-mount rack holds standard 19-inch servers and AV gear
  • Swing gate opens 180 degrees for full rear cable access
  • Reversible gate offers threaded 12-24 or square mounting holes
  • 110 lb capacity built from 1.5 mm cold-rolled steel
  • Includes 10 M6 cage nuts, screws and wall-mount hardware

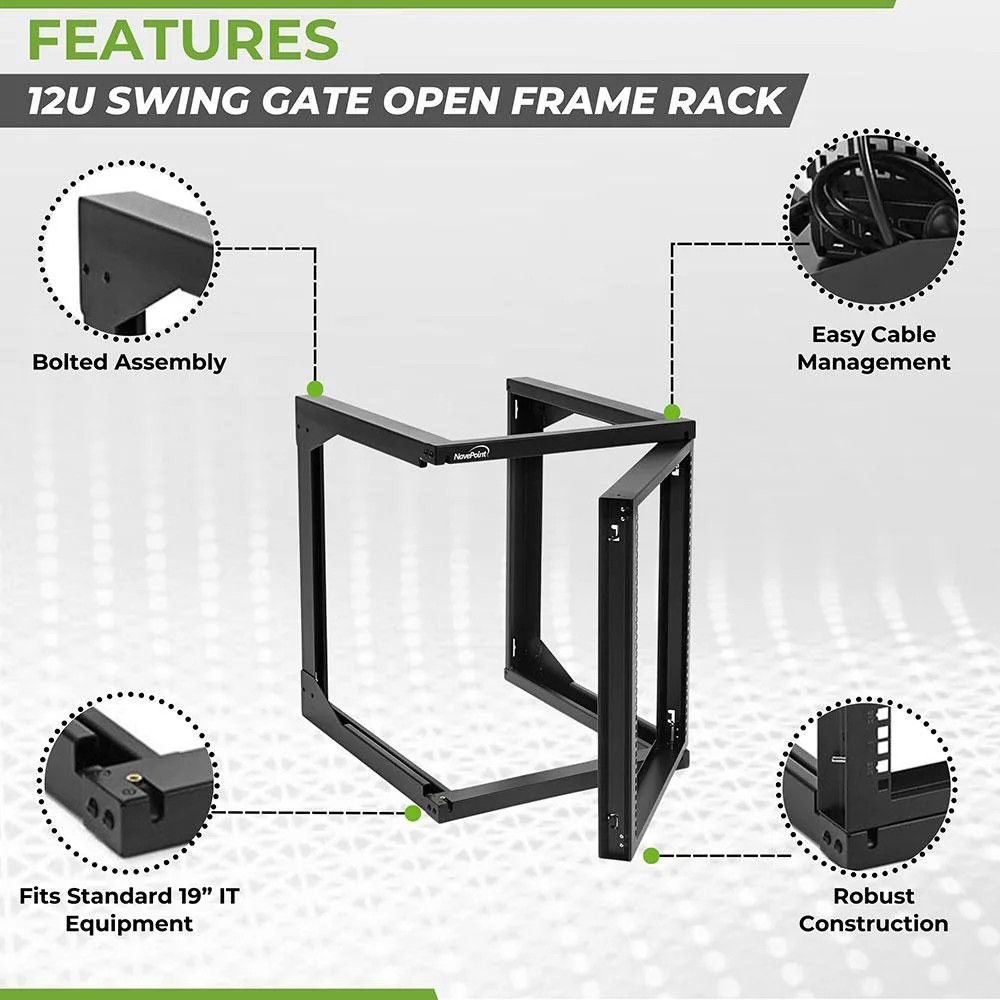

Wall-mount open frame rack for 19" equipment

The NavePoint 12U swing-gate rack mounts to a wall and accepts standard 19-inch servers, networking gear and AV components. Its open-frame design promotes airflow and gives clear access for installation, servicing and cable management. The unit is built from 1.5 mm cold-rolled steel with a black powder-coated finish and supports a 110 lb weight capacity.

Dual-hinged gate frees rear access

The front gate swings 180 degrees from either left or right hinging thanks to spring-loaded pivot pins, letting you pick the side that suits the room layout. The gate can be lifted off completely for bench assembly or maintenance and then returned to position. When mounted, the reversible gate presents either 12-24 threaded holes or square rack holes to match different equipment rails.

Included hardware covers wall and equipment mounting

The package supplies 10 M6 cage nuts, 10 M6 screws, 10 12-24 screws, 6 M6 washers and 6 M6 wall-mounting screws so the rack can be secured to the wall and populated without extra trips for fasteners. Rack spaces are clearly marked and numbered to speed alignment during build-out.

Highlights

  • 12U wall-mount rack holds standard 19-inch servers and AV gear
  • Swing gate opens 180 degrees for full rear cable access
  • Reversible gate offers threaded 12-24 or square mounting holes
  • 110 lb capacity built from 1.5 mm cold-rolled steel
  • Includes 10 M6 cage nuts, screws and wall-mount hardware

Specifications

BrandNavePoint
TypeRack Mount Cabinet
Rack Units12U
ColorBlack

Questions about this item

How much weight can the 12U rack hold before the steel frame becomes the limiting factor?

The cold-rolled steel frame is rated for 110 lbs total equipment weight.

Will the open-frame design and black powder coat keep internal temperatures manageable during 24-hour operation?

Open sides allow unrestricted airflow; the 1.5 mm steel and black finish dissipate heat passively with no fan noise.

Which mounting-hole pattern do I need on my 19-inch gear to use the reversible front gate?

The gate offers 12-24 threaded holes on one face and square holes on the other, so either pattern works.
