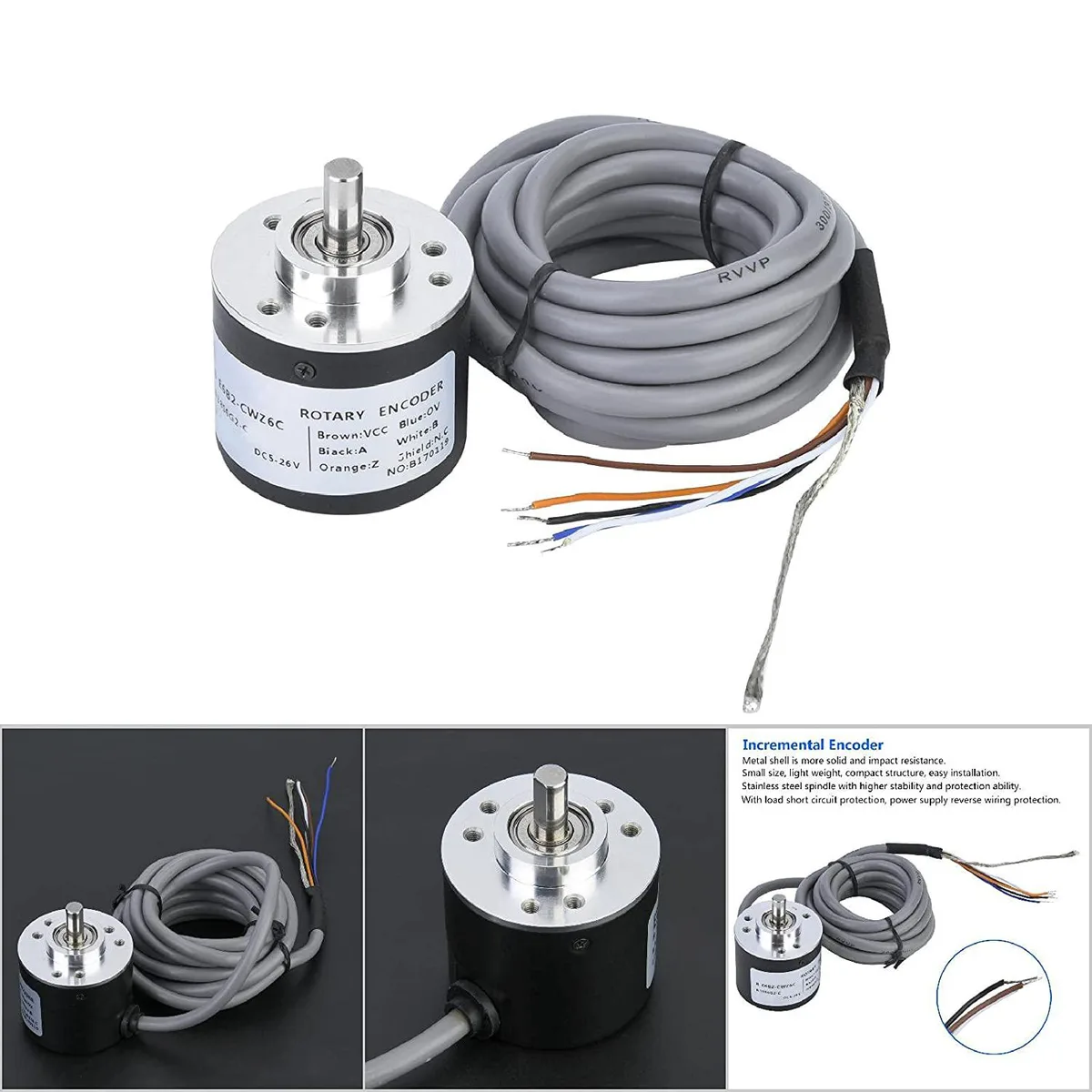

Cylindrical metal encoder 38mm diameter with stainless steel shaft and 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 600P/R

SKU CH-W8AV-XASFA MPN E6B2-CWZ6C

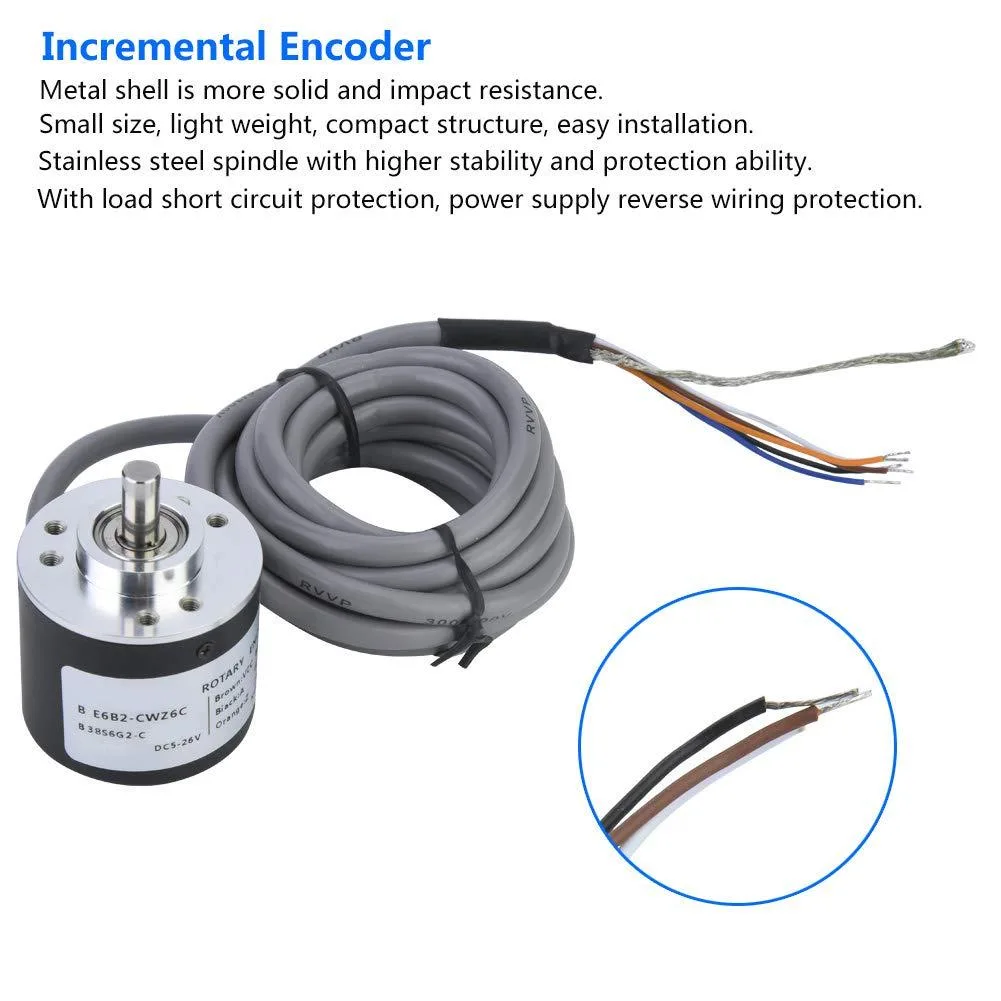

38 mm incremental encoder delivering 600 pulses per revolution with DC5–26 V open-collector output, ASIC circuitry, stainless spindle, and load short-circuit plus reverse-wiring protection

  • TypeAT
  • Compact 38 mm diameter fits tight machine spaces
  • 600 pulses per revolution gives precise position feedback
  • DC 5–26 V supply range suits varied power systems
  • Stainless spindle and metal shell resist shock and wear
  • Built-in short-circuit and reverse-wiring protection prevents damage

Product Identity

The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder built for industrial motion control. It delivers 600 pulses per revolution with A, B and Z phase outputs. The unit operates on a DC 5 to 26V supply and offers multiple output modes including voltage, collector and differential drive. A 2m cable provides the wiring connection.

Target Users

This encoder suits engineers integrating position feedback into servo systems, CNC machines or automated assembly lines where a 6mm stainless shaft and 30N radial load rating are required. The compact metal housing fits tight enclosures and the ASIC design resists electrical noise. Buyers needing hollow-shaft mounting, absolute position data or resolutions above 5000 P/R should look elsewhere.

Deciding Specification

The fixed 600 pulses per revolution resolution determines whether this encoder matches the motion controller’s counting requirements. If the application demands a different count — such as 100, 1024 or 2500 P/R — a variant from the optional range must be selected instead.

Highlights

  • Compact 38 mm diameter fits tight machine spaces
  • 600 pulses per revolution gives precise position feedback
  • DC 5–26 V supply range suits varied power systems
  • Stainless spindle and metal shell resist shock and wear
  • Built-in short-circuit and reverse-wiring protection prevents damage

Specifications

TypeAT

Questions about this item

Which resolution should I select for the E6B2-CWZ6C encoder?

Choose from 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 pulses per revolution to match your controller’s counting requirements.

What does the 600 P/R rating mean when the encoder is mounted on a machine?

The shaft produces 600 pulses for each full rotation, giving the controller 600 discrete position steps per turn.

What output standard does the open-collector version use and what voltage range does it support?

Open-collector output operates from DC 5 V to 26 V, compatible with common PLC and motion-controller inputs.
