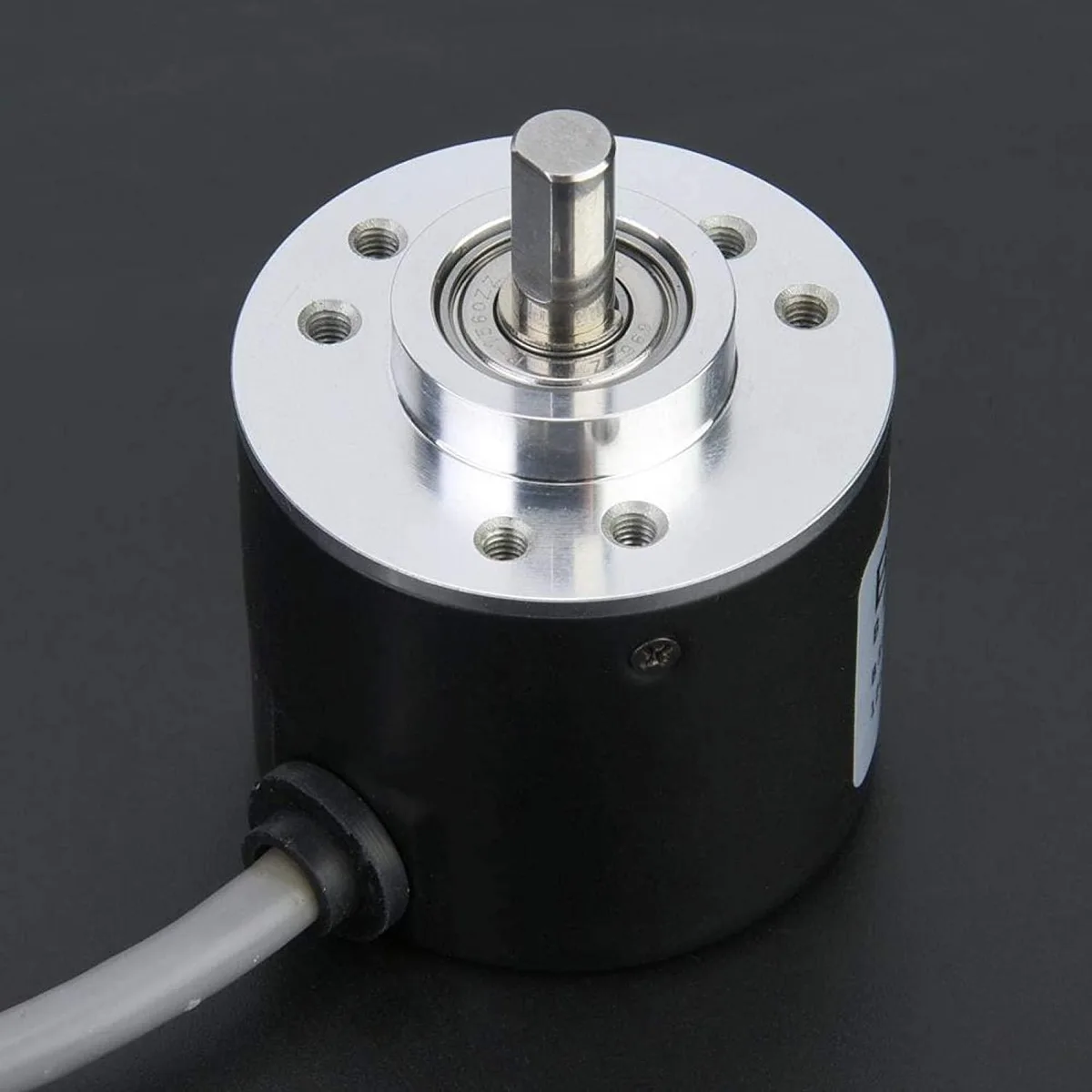

Cylindrical incremental encoder 38mm diameter metal shell 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 100P/R 2m Cable Circuit Protection

SKU CH-5WYF-QJDM8 MPN E6B2-CWZ6C

38mm incremental encoder delivering 100 pulses per revolution with 2m cable and built-in circuit protection against short circuits and reverse wiring

  • TypeAT
  • 38 mm diameter fits compact installations
  • 100 pulses per revolution for precise position feedback
  • 2 m cable allows flexible routing
  • DC 5 to 26 V supply range suits varied power systems
  • Short circuit and reverse wiring protection guards the encoder

38 mm Incremental Encoder with Circuit Protection

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for motion-control systems that need reliable position feedback. It delivers 100 pulses per revolution through a 2 m cable and operates from a DC 5 to 26 V supply. Internal ASIC devices provide load short-circuit protection and power-supply reverse-wiring protection. A stainless-steel spindle and metal shell give mechanical rigidity for continuous industrial use.

Suited for Compact Position-Feedback Tasks

This encoder suits designers integrating rotary sensing into small-footprint machinery where a 38 mm body and 6 mm thrust shaft fit easily. The open-collector output type works with standard PLC and counter inputs without extra conditioning. Buyers who need higher resolution than 100 P/R or a hollow-shaft mounting style should look at alternative models. Applications requiring absolute position data at power-up are not served by this incremental device.

100 P/R Resolution and 30 N Radial Load Capacity

At the factory-set 100 pulses per revolution the encoder provides basic angular granularity for speed monitoring and simple indexing. The shaft tolerates 30 N radial and 20 N thrust loads, giving headroom for light coupling misalignment. Resolution options up to 5000 P/R exist in the series but are not fitted to this unit. The 2 m cable length limits mounting distance unless an extension is added.

Highlights

  • 38 mm diameter fits compact installations
  • 100 pulses per revolution for precise position feedback
  • 2 m cable allows flexible routing
  • DC 5 to 26 V supply range suits varied power systems
  • Short circuit and reverse wiring protection guards the encoder

Specifications

TypeAT

Questions about this item

What power-supply voltage range must I already have available for the E6B2-CWZ6C to operate?

The encoder runs from any DC source between 5 V and 26 V, so your existing supply must fall within that window.

Will the 38 mm diameter and 6 mm shaft of this encoder match the mounting pattern and coupling on my current motor?

The body is 38 mm across and the thrust shaft is 6 mm, so it fits standard 38 mm frames and 6 mm couplings used on many small motors.

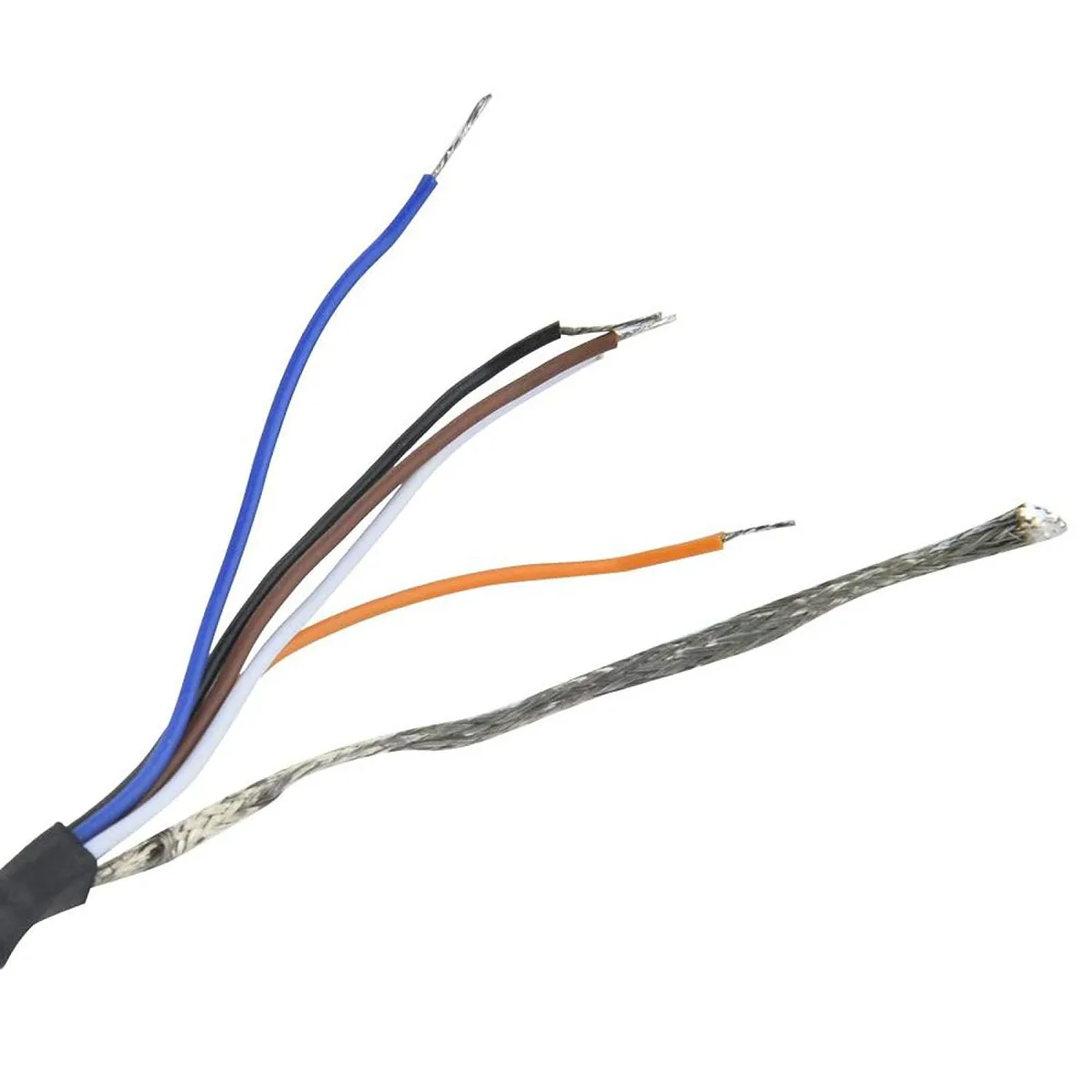

How can I confirm the A, B and Z channels are delivering clean pulses after wiring the 2 m cable?

Rotate the shaft one full turn and count 100 pulses on each of the A and B channels with a scope or counter; the Z channel should emit a single index pulse per revolution.
