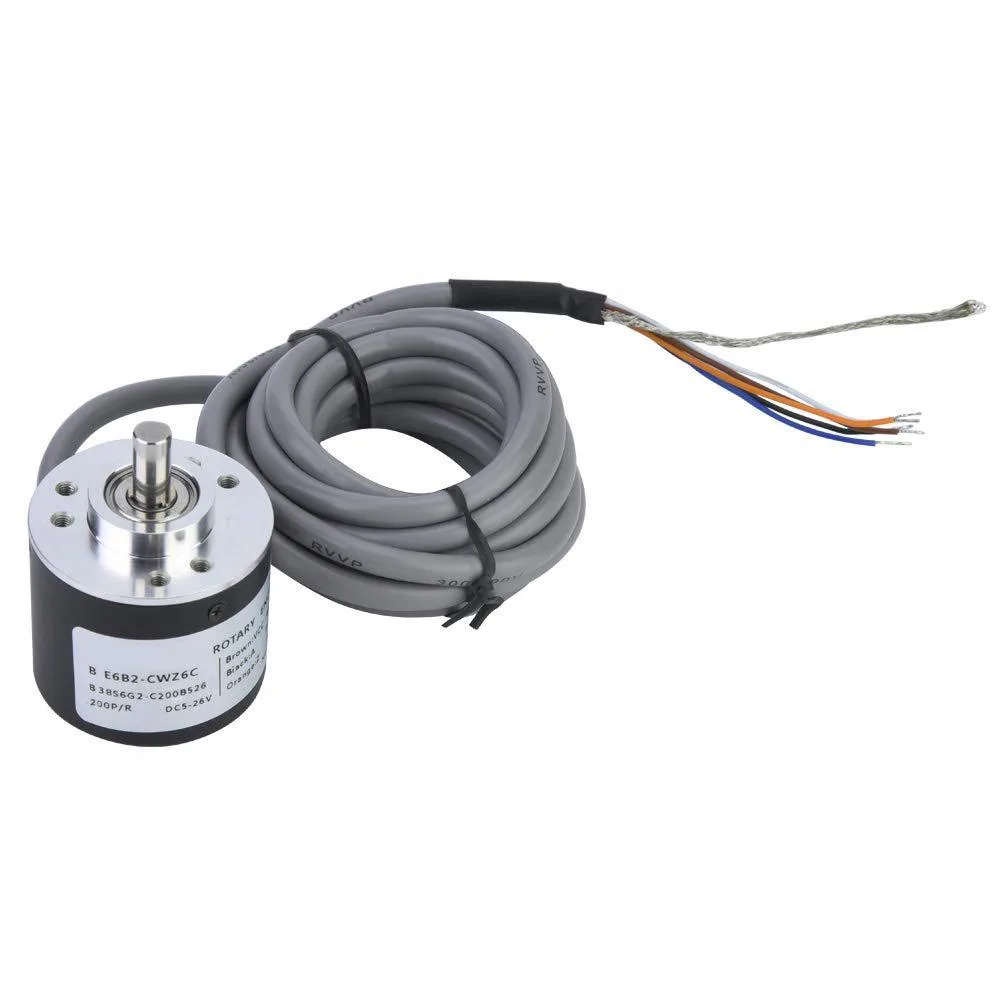

Small silver metal encoder cylinder with stainless shaft and brown blue black wires

myVolts

myVolts E6B2-CWZ6C 38 mm Incremental Encoder 200 P/R Circuit Protection

SKU CH-GZES-WHSRP MPN E6B2-CWZ6C

38 mm incremental encoder delivering 200 pulses per revolution with DC 5–26 V supply, load short-circuit protection and reverse-wiring protection

  • TypeAT
  • Reliable position feedback from 200 pulses per revolution
  • Resists electrical noise with internal ASIC circuitry
  • Protected against short circuits and reverse polarity wiring
  • Durable stainless steel spindle withstands 30 N radial and 20 N axial loads
  • Compact 38 mm metal housing fits tight installations

38 mm Incremental Encoder 200 P/R

The myVolts E6B2-CWZ6C is a new general-purpose incremental encoder with a 38 mm outer diameter and 200 pulses per rotation. It suits automation engineers and machine builders who need precise position feedback for motor control or motion tracking applications.

Open-Collector Output DC 5–26 V

The encoder operates from a DC 5 V to 26 V supply via an open-collector output stage with brown positive and blue negative leads. It provides A, B and Z phase signals plus short-circuit and reverse-wiring protection, freeing the designer from adding external protection circuitry.

Metal Shell With ASIC Anti-Interference

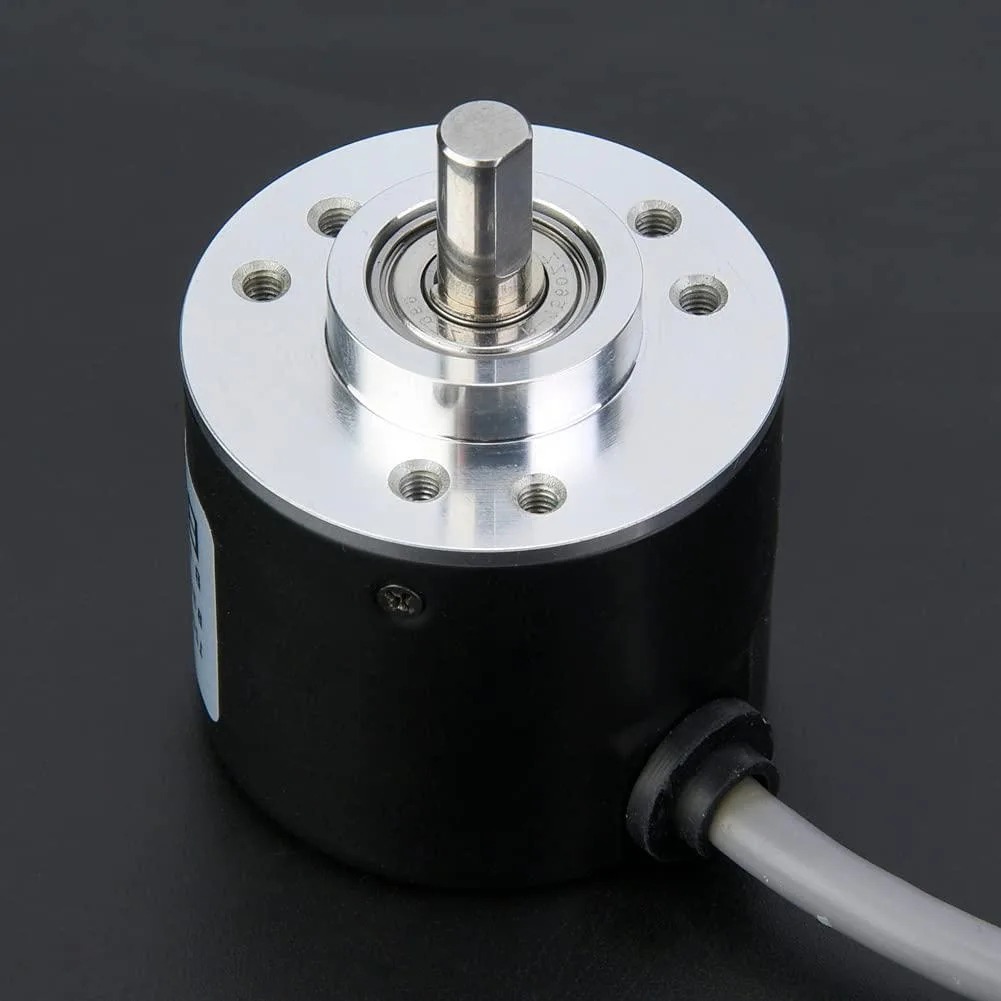

A stainless-steel spindle and alloy shell resist 30 N radial and 20 N thrust loads while the internal ASIC maintains signal integrity under continuous operation. The 2 m cable supports voltage, collector, complementary, push-pull, long-line drive, differential and fork output modes for sustained reliability.

Highlights

  • Reliable position feedback from 200 pulses per revolution
  • Resists electrical noise with internal ASIC circuitry
  • Protected against short circuits and reverse polarity wiring
  • Durable stainless steel spindle withstands 30 N radial and 20 N axial loads
  • Compact 38 mm metal housing fits tight installations

Specifications

TypeAT

Questions about this item

What is the maximum radial shaft load the E6B2-CWZ6C can handle before mechanical limits are reached?

The encoder withstands radial shaft loading of 30 N, which is the mechanical limit for side forces on the 6 mm stainless steel spindle.

How much heat or noise does the encoder produce during continuous all-day operation?

The solid metal shell dissipates heat passively with no fan, and the internal ASIC design runs silently, so sustained use adds negligible noise or temperature rise.

Which power supply voltage must I already have available to run this encoder?

You need a DC source between 5 V and 26 V; the brown wire connects to positive and the blue wire to 0 V for open-collector output.
