Black aluminium HDMI switch, five inputs, one output, slim rectangular shape, IR remote included

Mrocioa

Mrocioa D514 5-Port 4K 30Hz HDMI Switch with IR Remote

SKU CH-Y6K2-Y7HER

A 5-port HDMI switch supporting 4K at 30 Hz with IR remote control up to 22 ft and ARC on port one

  • Type4K- 5 Port 30Hz Normal
  • ColorBlack
  • Ports5
  • Cable Lengthfeet
  • Input Connector5 x HDMI Female
  • Maximum ResolutionsMedium
  • Connect five devices to one display via 5 HDMI inputs
  • Watch 4K content at 30Hz with 18Gbps bandwidth
  • Control switching from the sofa with 16-26ft IR remote range
  • Reduce eye strain with auto-dimming LED brightness feature
  • Power directly through HDMI cable without external adapter

Five-input 4K 30 Hz HDMI switch

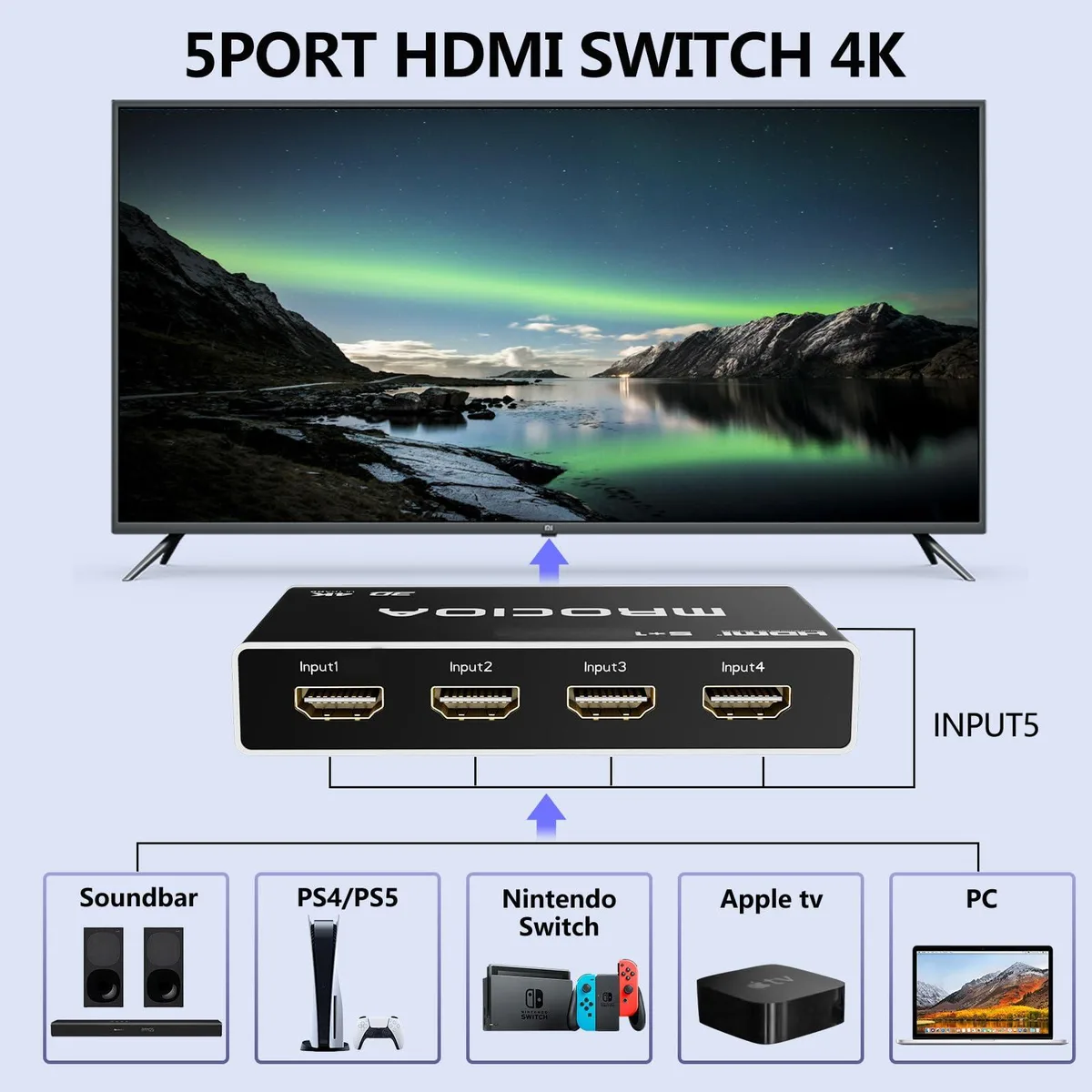

The Mrocioa D514 routes five HDMI sources to a single display at up to 4K resolution and 30 Hz refresh. It handles 1080p and 720p signals and passes DTS 7.1, DTS-HD, PCM and AC3 audio formats. The aluminium alloy case stays cool and the unit draws power directly from the HDMI cables, so no external adapter is required.

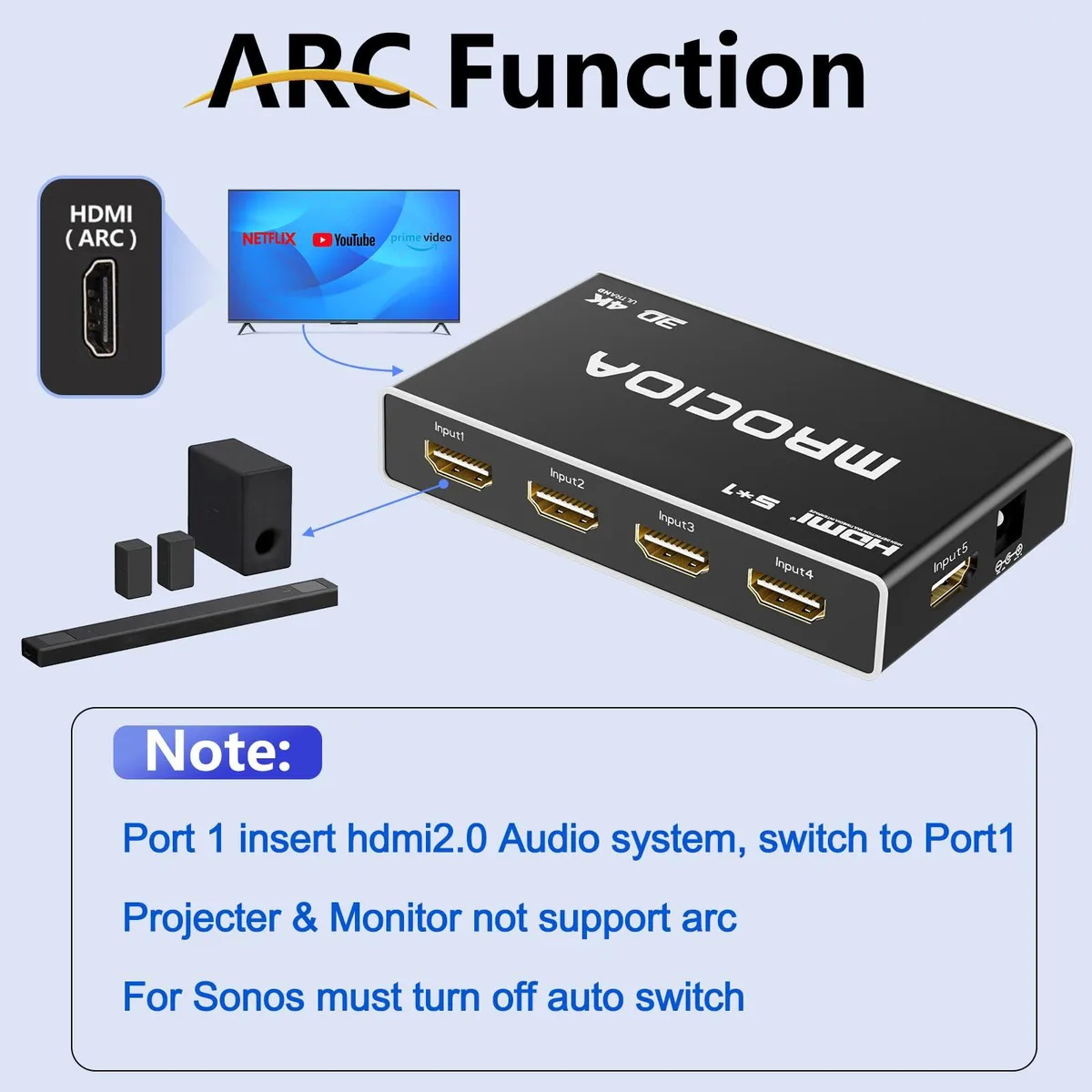

IR remote and ARC on port 1

A small infrared remote works at 16 to 22 feet, letting you change inputs from the sofa. Port 1 adds ARC and eARC support for sending audio back to a sound system; the manufacturer notes that the TV or projector must also support ARC and that Sonos users should disable auto-switching. Pressing the front button for three seconds toggles automatic input selection on or off.

Bandwidth ceiling and 4K 60 Hz limitation

The switch operates at up to 18 Gbps with a high-quality cable, which is sufficient for 4K at 30 Hz but not for 4K at 60 Hz. The supplier advises that 4K 60 Hz sources should use port 1 or 2 and still require a premium cable. HDCP 2.3 is the maximum content-protection version supported, so newer HDCP revisions will not work.

Highlights

  • Connect five devices to one display via 5 HDMI inputs
  • Watch 4K content at 30Hz with 18Gbps bandwidth
  • Control switching from the sofa with 16-26ft IR remote range
  • Reduce eye strain with auto-dimming LED brightness feature
  • Power directly through HDMI cable without external adapter

Specifications

Brandmrocioa
ModelD514
Part Number4348183751
Type4K- 5 Port 30Hz Normal
ColorBlack
Ports5
Cable Lengthfeet
Input Connector5 x HDMI Female
Maximum ResolutionsMedium
Dimensions4.6 L x 2.5 W x 0.82 H inches

Questions about this item

Does the D514 need an external power adapter or will it run off the HDMI cables alone?

It draws power directly from the connected HDMI cables so no separate power supply is required.

What is the maximum refresh rate the switch can pass at 4K resolution?

The unit is rated for 4K at 30 Hz; 4K at 60 Hz is only suggested on ports one or two with a high-quality cable.

How warm does the aluminium case get after hours of continuous switching?

The manufacturer states the heating value is reduced by 90 % compared with other HDMI switches, keeping the case cool during all-day use.
