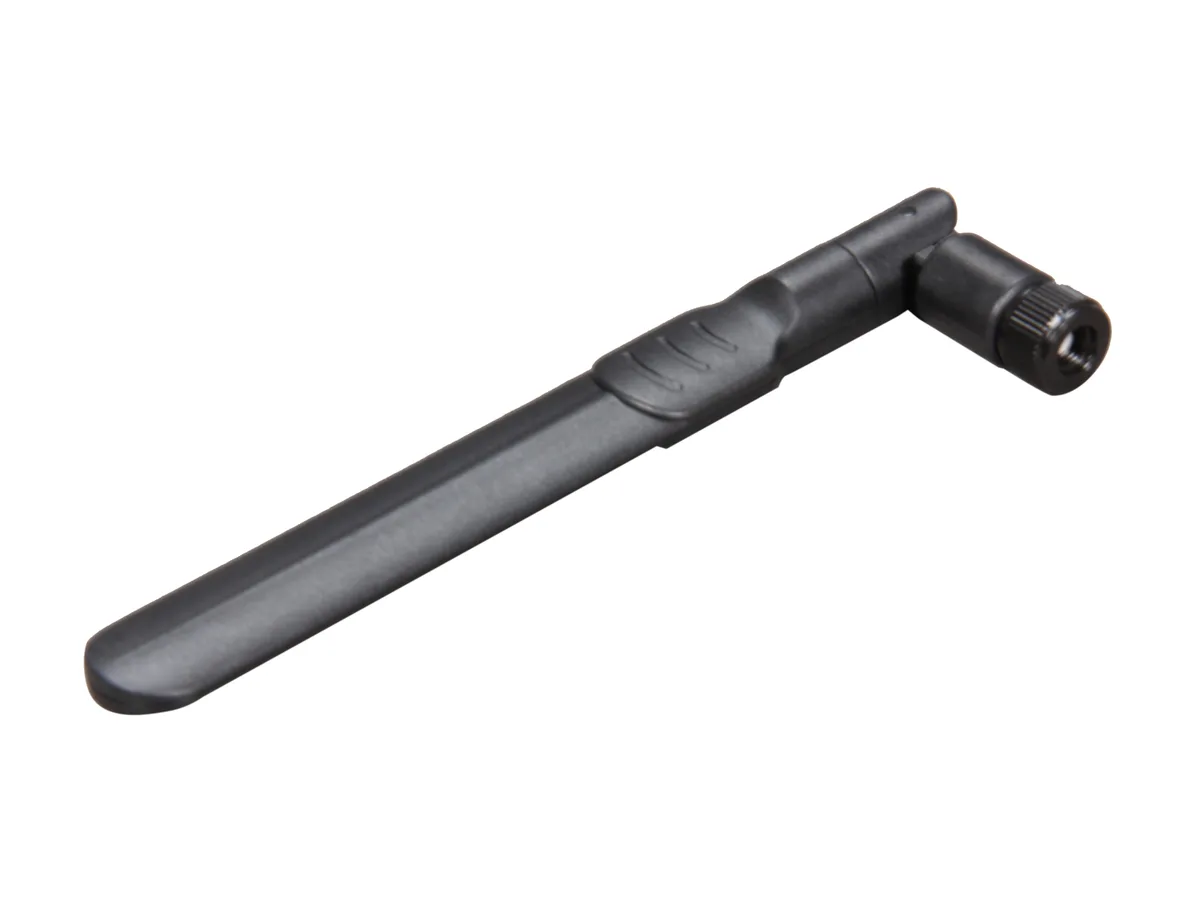

Motorola ML-2452-APA2-01 dual-band dipole network antenna
Dual-band dipole antenna covering 2.4 GHz and 5 GHz with 3 dBi and 4 dBi gain for 802.11 a/g networks
- TypeAntenna
- SpecificationsApplication/Usage: Television Frequency: 2.40 GHz to 2.50 GH
- FeaturesHigh Performance Dual band 802.11 a/g Dipole Antenna Capable
- Dual-band coverage supports 2.4 GHz and 5 GHz Wi-Fi networks
- 4 dBi gain at 5 GHz extends wireless range
- 3 dBi gain at 2.4 GHz improves signal penetration
- 360° horizontal beamwidth provides omnidirectional coverage
- Low 1.92:1 VSWR ensures efficient power transfer
Dual-band dipole antenna for television
The Motorola ML-2452-APA2-01 is a dual-band dipole antenna built for television applications. It operates across 2.40 GHz to 2.50 GHz and 5.15 GHz to 5.85 GHz with gain of 3 dBi and 4 dBi respectively. Linear vertical polarisation supports 802.11 a/g wireless standards. This antenna suits installers adding wireless reception to TV equipment.
Passive component with no power draw
As a passive dipole the antenna draws no power and generates no heat or noise. Its VSWR of 1.92:1 indicates acceptable impedance matching across both bands. The 35° vertical and 360° horizontal beamwidths shape the radiation pattern without active cooling. Performance is stable because there are no electronic parts to age.
Omnidirectional horizontal coverage for fixed
The 360° horizontal beamwidth gives omnidirectional coverage so orientation around the vertical axis is not critical. Vertical beamwidth of 35° focuses energy toward the horizon which suits roof or mast mounting. No external power supply or controller is required. Installers needing narrow vertical lobes or active steering should choose a different antenna type.
Highlights
- Dual-band coverage supports 2.4 GHz and 5 GHz Wi-Fi networks
- 4 dBi gain at 5 GHz extends wireless range
- 3 dBi gain at 2.4 GHz improves signal penetration
- 360° horizontal beamwidth provides omnidirectional coverage
- Low 1.92:1 VSWR ensures efficient power transfer
Specifications
| Brand | MOTOROLA |
|---|---|
| Model | ML-2452-APA2-01 |
| Type | Antenna |
| Specifications | Application/Usage: Television Frequency: 2.40 GHz to 2.50 GHz / 5.85 GHz to 5.15 GHz Gain: 3 dBi / 4 dBi Polarization: Linear / Vertical Beamwidth: 35° Vertical / 360° Horizontal VSWR: 1.92:1 |
| Features | High Performance Dual band 802.11 a/g Dipole Antenna Capable of both 5 GHz (802.11a, 4dBi Gain) and 2.4 GHz (802.11b/g, 3dBi Gain) Performance |
| Shipping weight | 0.03 kg |
| Package size | 159 × 32 × 10 mm |
Questions about this item
How do I mount the ML-2452-APA2-01 dipole antenna and which orientation mistake should I avoid?
Mount the antenna vertically so the 35° vertical beamwidth covers the intended area; installing it horizontally rotates the 360° horizontal pattern into the vertical plane and reduces coverage.
What maintenance or replacement will the ML-2452-APA2-01 need over time?
The passive dipole has no moving parts or firmware; inspect the N-type connector and radome annually for corrosion or UV cracking and replace the unit only if physical damage degrades the 1.92:1 VSWR.
What performance limit appears first when the ML-2452-APA2-01 runs continuously at 2.40 GHz to 2.50 GHz?
The 1.92:1 VSWR is the primary limit; sustained operation at high duty cycle can raise feed-point temperature, increasing reflected power beyond the specified VSWR before the 3 dBi gain drops.
