White DisplayPort to DVI cable, 3.00 ft, 28AWG, gold connectors

Monoprice Inc.

Monoprice Inc. 6014 3.00 ft 28AWG displayport cable

SKU CH-5R54-M0ZHD MPN 6014

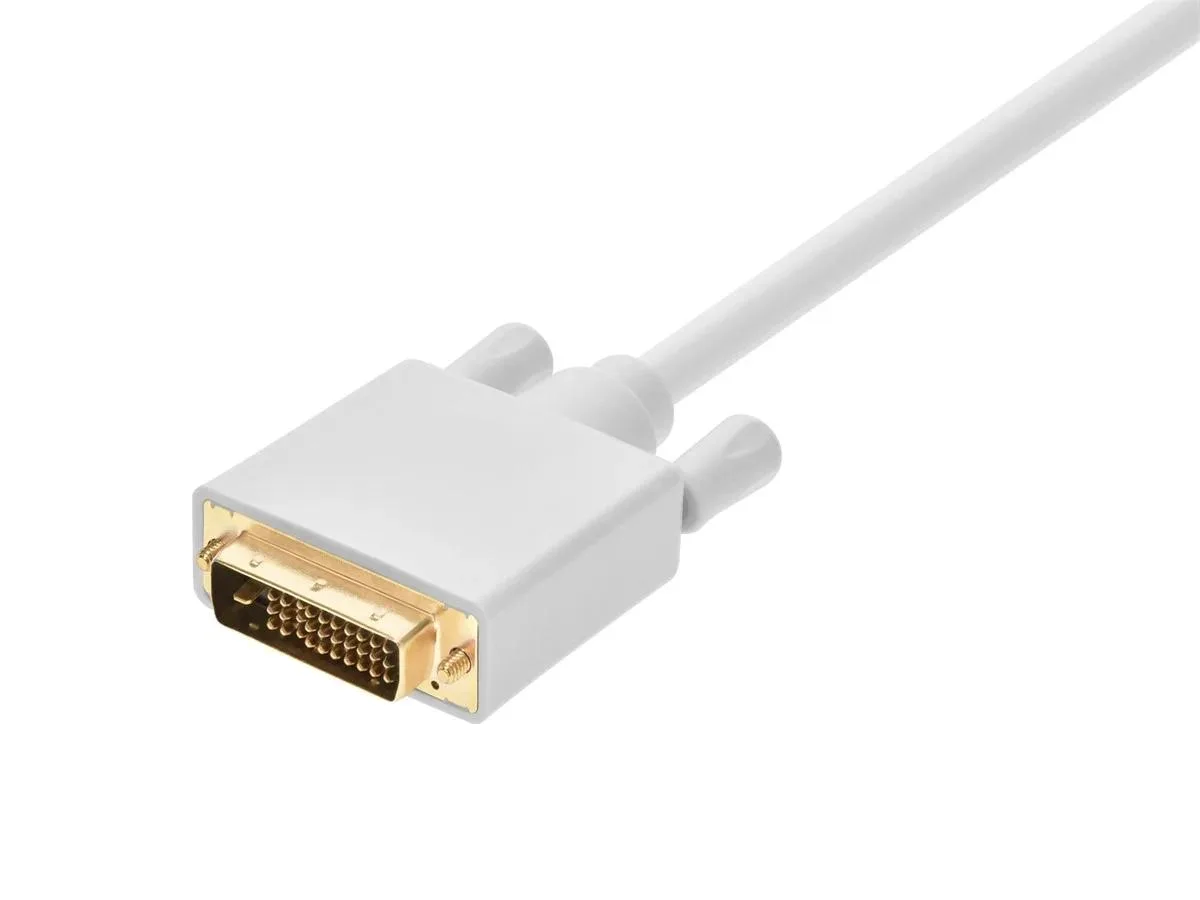

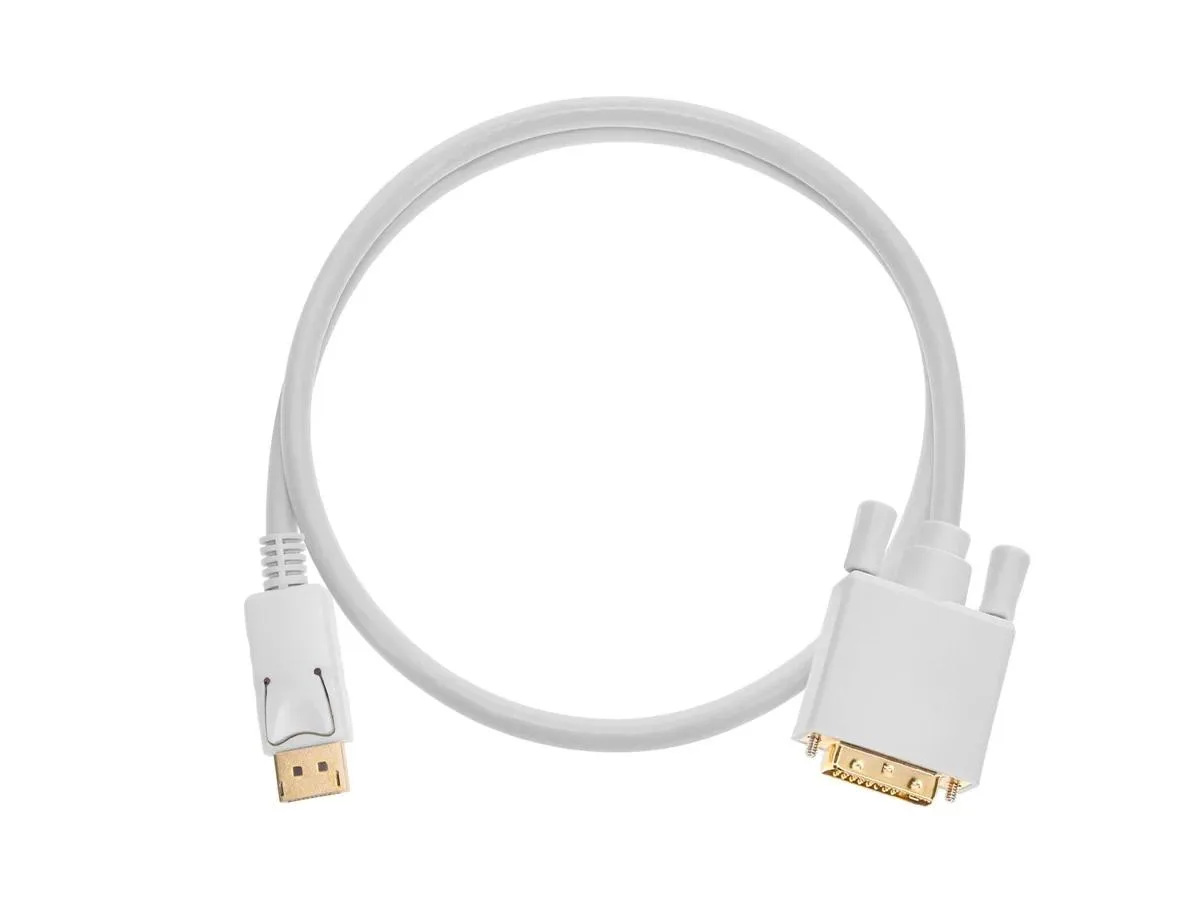

A 3.00 ft white DisplayPort-to-DVI cable with 28AWG copper conductors and gold-plated connectors for direct computer-to-monitor links

  • TypeVideo Cables
  • ColorWhite
  • Length3.00 ft.
  • Cable Length3 ft.
  • Connector Number2
  • Connect DVI display directly via DisplayPort without separate adapter
  • 00 ft length suits close-range desktop or monitor placement
  • 28AWG tin-plated copper conductors with gold-plated connectors for durability
  • Passive cable requires DisplayPort source capable of outputting DVI signal
  • Not recommended for Eyefinity multi-display configurations

DisplayPort to DVI passive cable

This 3.00 ft white cable carries a DVI signal from a DisplayPort source to a DVI-equipped monitor or HDTV. It uses 28AWG tin-plated conduits with pure copper cores and gold-plated connectors. The passive design means the source device must be capable of outputting a DVI signal through its DisplayPort jack.

Passive adapter signal constraints

Because the cable is passive, it cannot convert a native DisplayPort signal into DVI; the graphics card or laptop must already emit a DVI-compatible stream. The supplier notes that these cables are not recommended for Eyefinity multi-display setups. No active conversion circuitry is present inside the connectors.

Straightforward plug-and-play install

Connect the DisplayPort end to the computer and the DVI end to the display; no drivers or external power are required. Installation issues usually arise when the source device does not support DVI output over DisplayPort, resulting in no picture. Verify that capability before purchasing.

Highlights

  • Connect DVI display directly via DisplayPort without separate adapter
  • 00 ft length suits close-range desktop or monitor placement
  • 28AWG tin-plated copper conductors with gold-plated connectors for durability
  • Passive cable requires DisplayPort source capable of outputting DVI signal
  • Not recommended for Eyefinity multi-display configurations

Specifications

BrandMonoprice
Model106014
TypeVideo Cables
ColorWhite
Length3.00 ft.
Cable Length3 ft.
Connector Number2
Shipping weight0.23 kg
Package size203 × 203 × 51 mm

Questions about this item

Should I choose the 3 ft 28AWG version or a longer length for my desk setup?

The 3 ft 28AWG cable suits short runs between a desktop GPU and a nearby monitor; longer cables add slack but increase signal loss risk on passive DisplayPort to DVI links.

What does the 28AWG rating mean once the cable is plugged into my PC and monitor?

28AWG indicates thinner conductors that keep the cable flexible for tight routing, but the passive design still requires the source DisplayPort to output a native DVI signal for video to appear.

Which interface standard does the DisplayPort end use and what resolution does that cap in practice?

The DisplayPort connector must emit a DVI-compatible signal; the passive wiring carries single-link DVI, so the practical ceiling is the resolution and refresh rate your source device can push through that mode.
