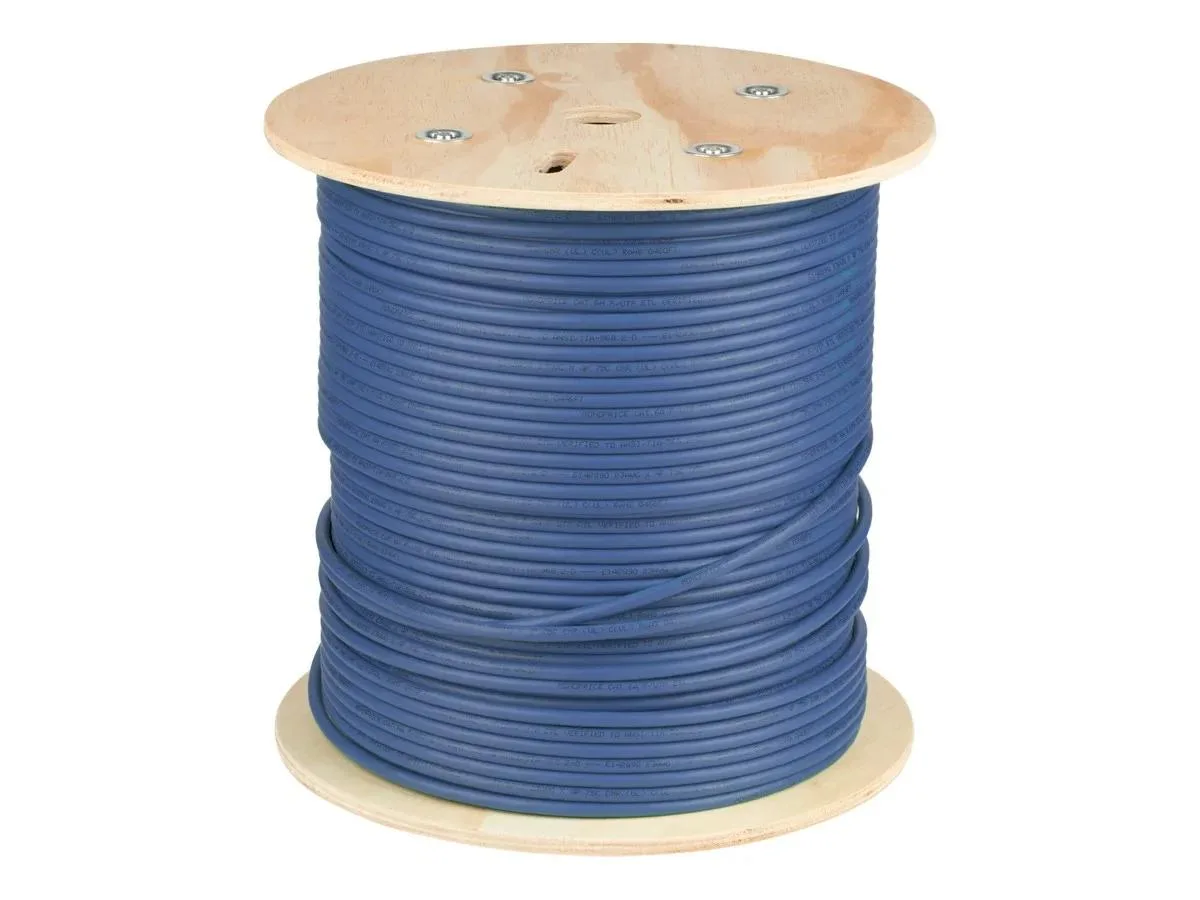

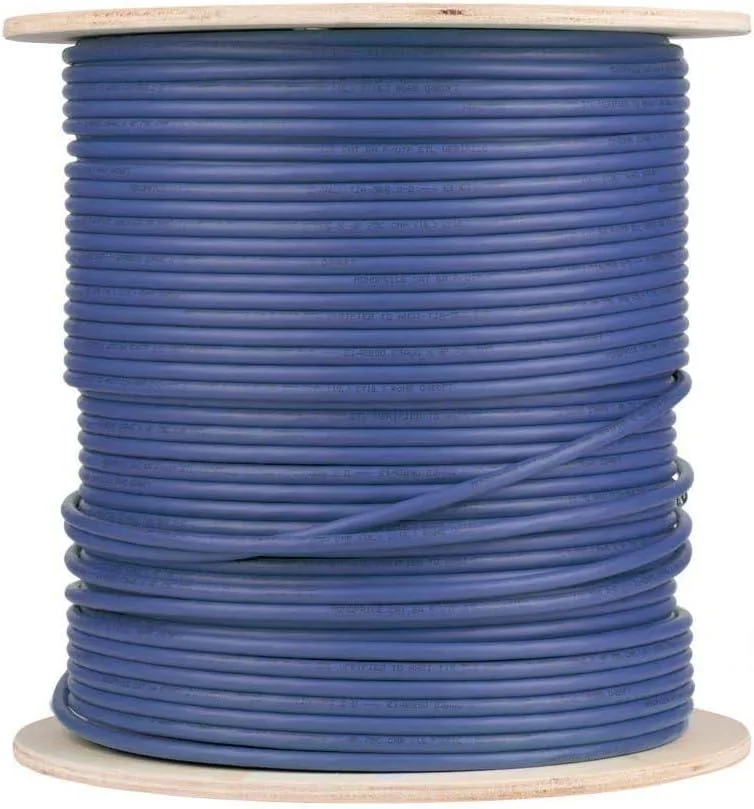

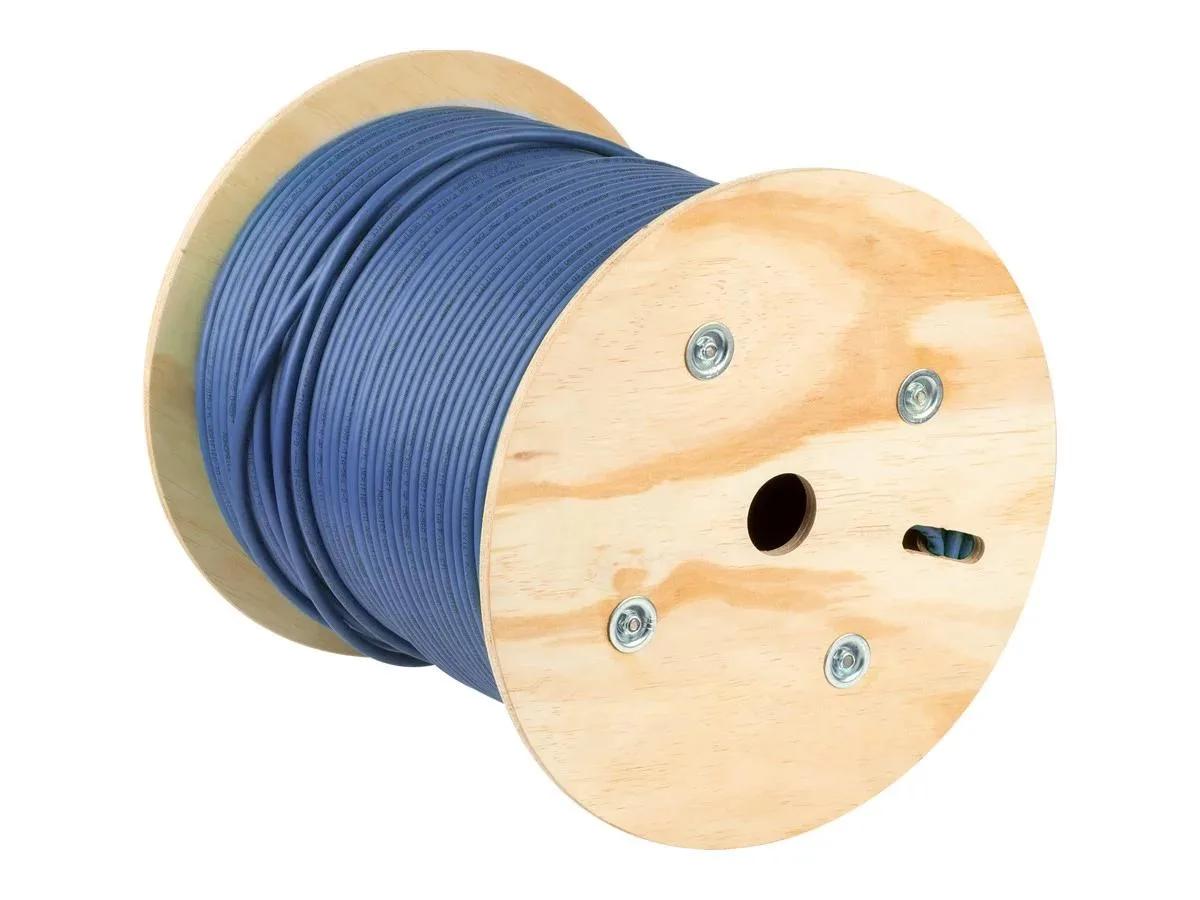

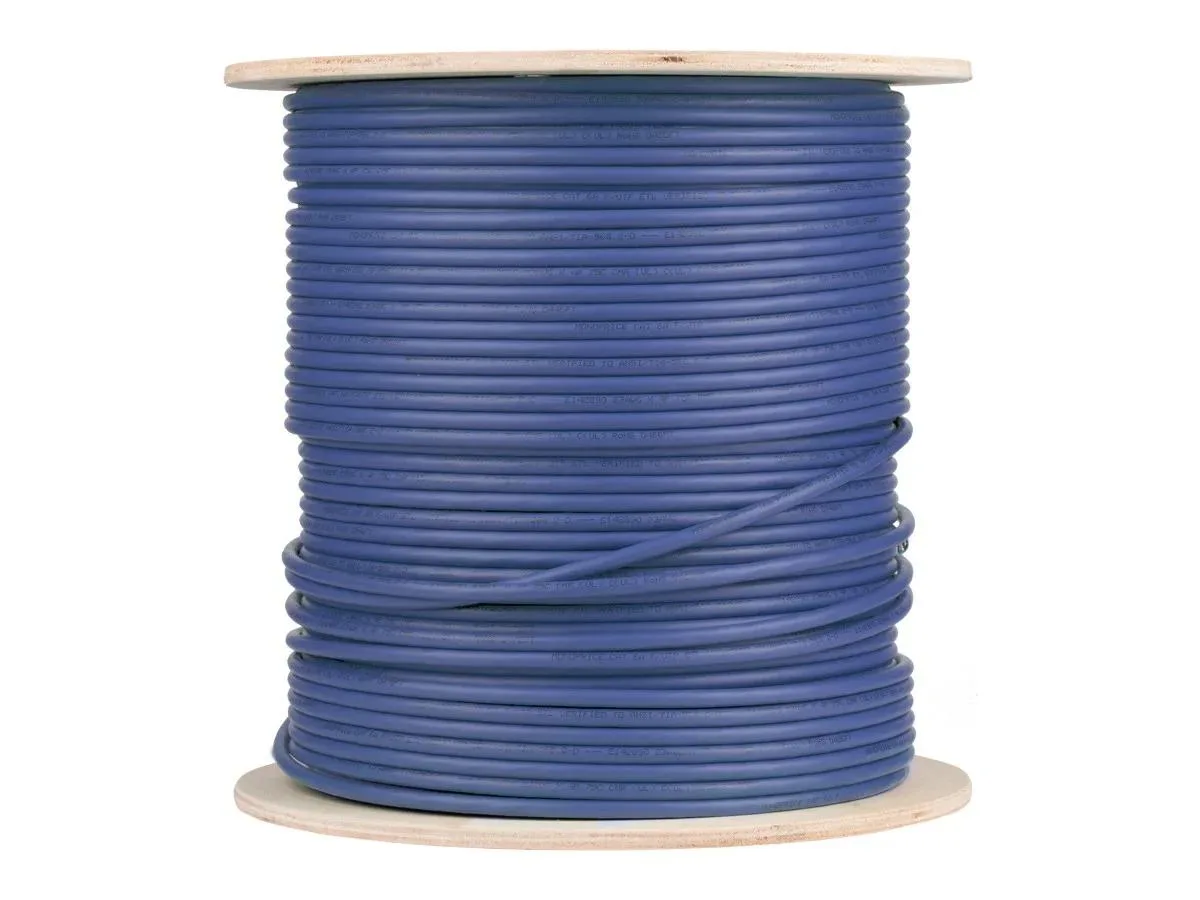

Blue Cat6A bulk ethernet cable on 500-foot reel-in-box, solid 23AWG copper, foil shielded, CMR rated

Monoprice Inc.

Monoprice Inc. 141485 Cat6A network ethernet cable 500 ft Blue solid F/UTP 23AWG 550MHz CMR

SKU CH-M2C2-0DSG9 MPN 141485

Solid 23AWG pure copper Cat6A cable with foil shielding, CMR riser rating and 550MHz bandwidth for 10Gbps runs up to 500 feet

  • TypeBulk Networking Cables
  • Length500 ft.
  • ColorBlue
  • FeaturesShielded Twisted Pair (F/UTP) Category 6A Ethernet cable. 23
  • Supports 10 Gbps networking with 550 MHz bandwidth
  • Pure bare copper conductors reduce signal loss over distance
  • CMR riser rating meets fire-safety code for vertical runs

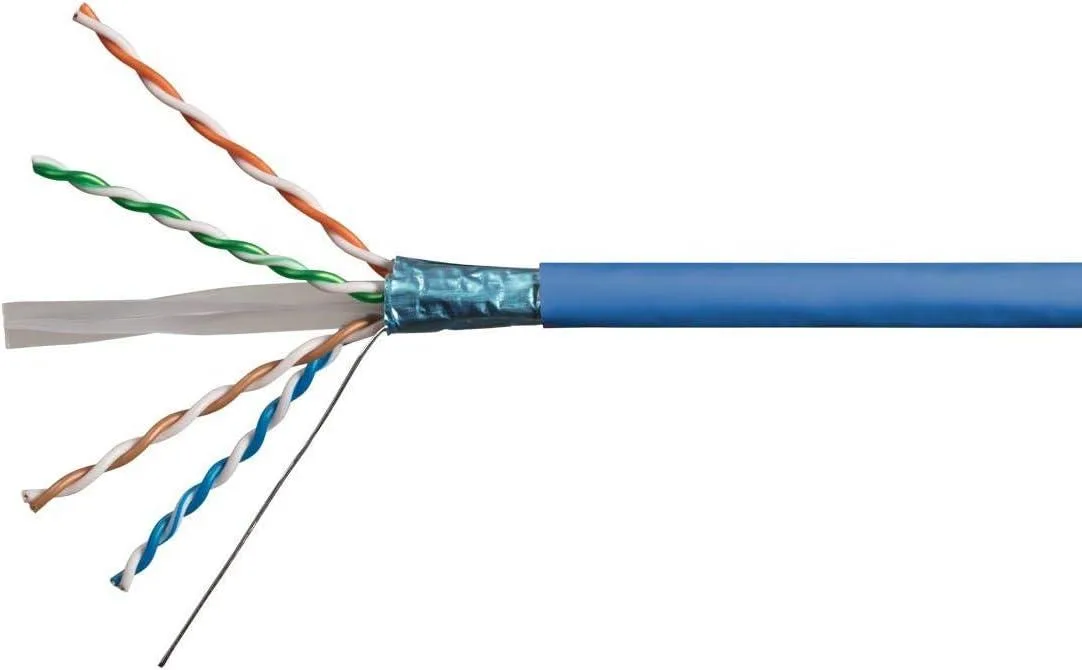

  • F/UTP foil shield blocks EMI in dense cable trays
  • Reel-in-box with length markings speeds installation and tracking

Cat6A bulk cable for 10Gbps runs

This 500-foot reel of Monoprise Cat6A F/UTP cable uses 23AWG solid bare copper conductors and a foil shield to support 10GBase-T speeds up to 550MHz. It carries a CMR riser rating and meets ANSI/TIA-568-C.2 requirements for in-wall and between-floor installations. The box includes length markings for accurate cut-to-length work.

Suited for installers wiring 10Gbps backbone links

The shielded construction and riser rating make it appropriate for server rooms, cloud infrastructure, surveillance systems and high-definition streaming backhauls where EMI protection and fire-code compliance are required. Buyers needing plenum-rated cable for air-handling spaces or a 1000-foot spool for larger projects should look at alternatives.

500-foot length with 550MHz headroom

The reel provides enough cable for multiple long drops while the 550MHz tested bandwidth gives margin above the 500MHz Cat6A minimum for 10Gbps operation. Runs approaching the 100-metre channel limit remain supported, but distances beyond that or environments requiring plenum fire ratings exceed what this CMR-rated reel can deliver.

Highlights

  • Supports 10 Gbps networking with 550 MHz bandwidth
  • Pure bare copper conductors reduce signal loss over distance
  • CMR riser rating meets fire-safety code for vertical runs
  • F/UTP foil shield blocks EMI in dense cable trays
  • Reel-in-box with length markings speeds installation and tracking

Specifications

BrandMonoprice
Model141485
TypeBulk Networking Cables
Length500 ft.
ColorBlue
FeaturesShielded Twisted Pair (F/UTP) Category 6A Ethernet cable. 23AWG solid, pure bare copper conductors.
Shipping weight10.61 kg
Package size368 × 363 × 358 mm

Questions about this item

What keystone jacks or patch panels accept 23AWG solid conductors for this Cat6A cable?

Use Cat6A-rated keystone jacks or patch panels designed for 23AWG solid bare copper wire; they provide the correct IDC spacing for the thicker conductors and maintain 550MHz performance.

Will this F/UTP cable work with my existing unshielded Cat6 patch cords and keystones?

Yes, the F/UTP cable is backward compatible with unshielded Cat6 components; the overall foil shield simply remains unused at those connection points while the twisted pairs carry the signal.

How can I verify the 550MHz bandwidth after I terminate the cable?

Test each run with a Cat6A-certified cable analyser that reports insertion loss, NEXT and ACR-F up to 550MHz; a pass confirms the link meets the 10GBase-T specification.
