Monoprice Inc.

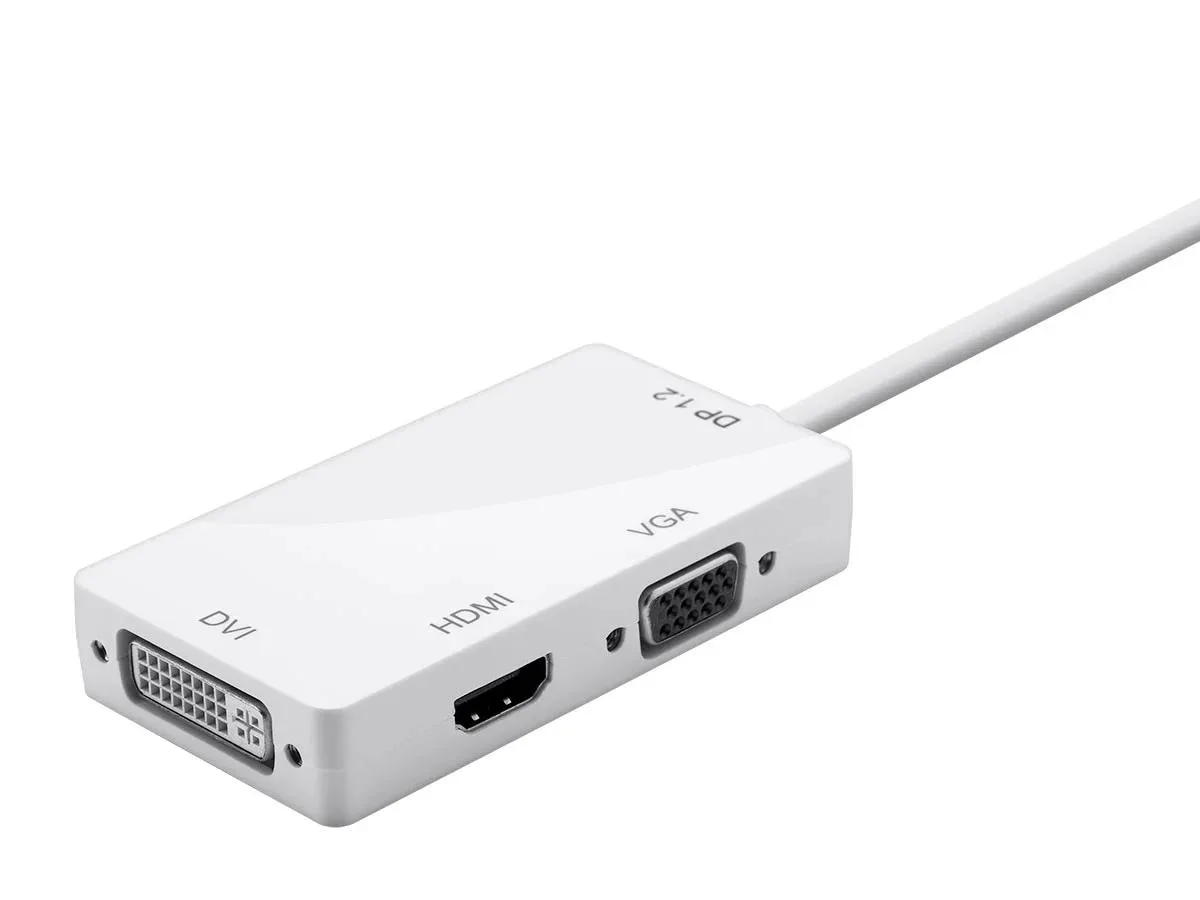

Monoprice 112800 DisplayPort 1.2 to HDMI DVI VGA Adapter White
Converts a DisplayPort 1.2a source to 4K HDMI at 30 Hz, Dual Link DVI at 2560x1600p @60 Hz, or VGA at 1920x1080p @60 Hz, one output at a time
- FeaturesConforms to DisplayPort 1.2a standard
- Connect a 4K HDMI display at 3840×2160 @30Hz
- Drive a Dual Link DVI monitor up to 2560×1600 @60Hz
- Output to VGA at 1920×1080 @60Hz
- Passive design works without external power
- Single-output operation keeps setup simple
Connectivity for legacy and 4K displays
This passive adapter lets a DisplayPort 1.2a source drive one HDMI, Dual Link DVI, or VGA monitor at a time. It targets users who need to connect older projectors or newer 4K screens without an active converter. Only one output operates at once, so multi-display modes such as Eyefinity or Surround are not supported. The white polycarbonate housing measures 6 feet end to end.
Passive design means no extra power or heat
Because the adapter draws no external power, it adds no measurable thermal load or fan noise to the system. Power consumption stays within the DisplayPort source capability, so there is no need for an additional supply. The passive circuitry also keeps the signal path simple for reliable operation at the rated resolutions.
Screw-down VGA and DVI connectors stay secure
Panel screw holes on the VGA and DVI ports let you fasten the cable to the display, preventing accidental disconnects in tight racks or busy desks. The fixed 6-foot length and large multi-output head (50 by 90 mm) may limit routing in very small enclosures. No software or drivers are bundled; the adapter works purely through the host graphics configuration.
Highlights
- Connect a 4K HDMI display at 3840×2160 @30Hz
- Drive a Dual Link DVI monitor up to 2560×1600 @60Hz
- Output to VGA at 1920×1080 @60Hz
- Passive design works without external power
- Single-output operation keeps setup simple
Specifications
| Brand | Monoprice |
|---|---|
| Model | 112800 |
| Part Number | 112800 |
| Features | Conforms to DisplayPort 1.2a standard |
Questions about this item
How do I install the 112800 adapter and what is the common mistake?
Plug the DisplayPort end into the source and choose one of the three outputs — HDMI, DVI or VGA — for the display. The mistake is connecting more than one output at the same time; only a single output works.
What upkeep or replacement will the 112800 need over time?
No routine maintenance is required. Replace the adapter if the cable jacket frays, the 6 ft length develops kinks, or the panel screws on the VGA and DVI connectors strip and no longer hold.
What limit appears first during sustained use of the 112800?
The HDMI output caps at 3840x2160p @30Hz, so 4K content runs at half the refresh rate of the DVI and VGA outputs, which both reach 60Hz at their maximum resolutions.
