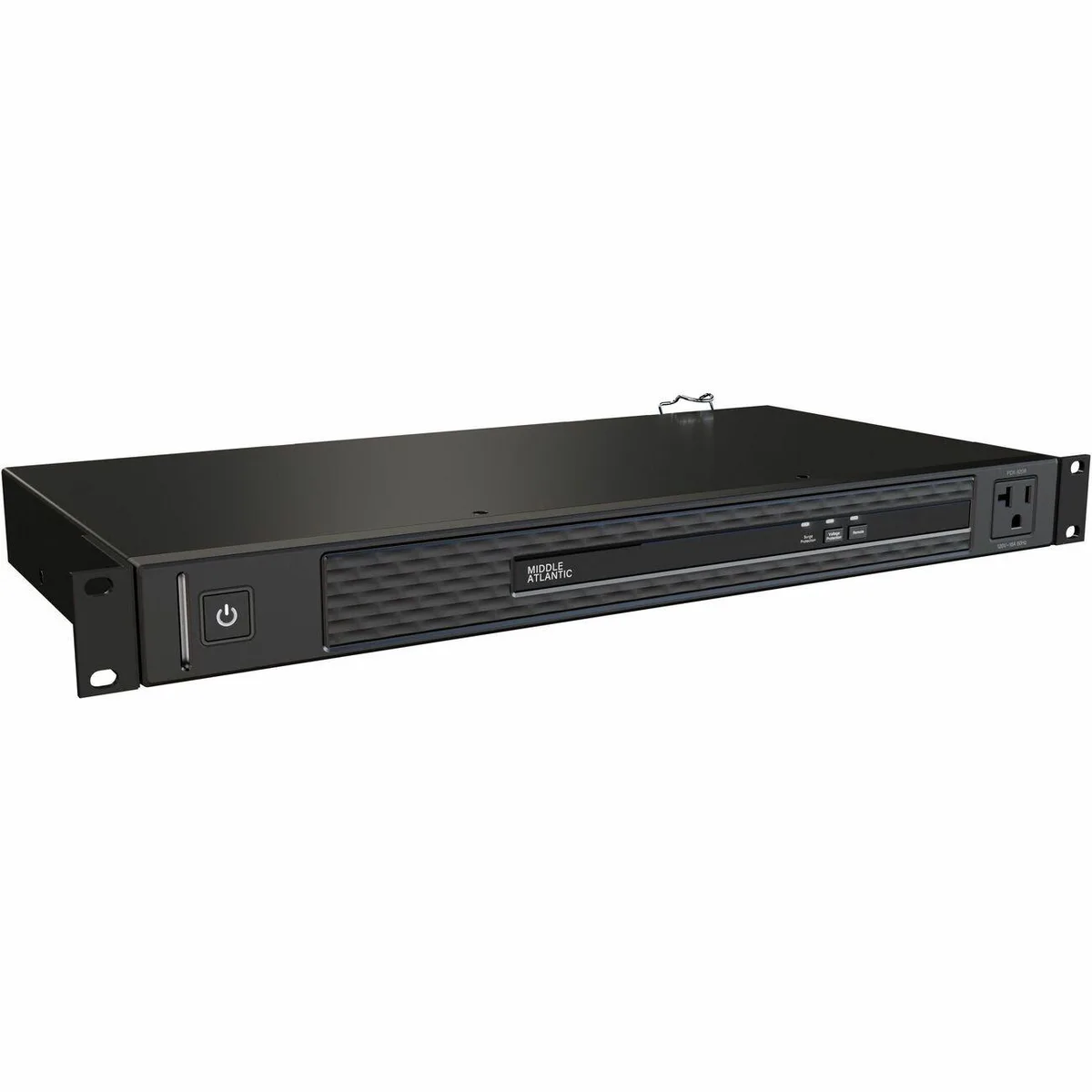

Black metal rack-mount power strip with nine outlets and front status lights

Middle Atlantic

Middle Atlantic PDX-920R 20A 9-Outlet PDU

SKU CH-38ZS-MEFNP MPN PDX-920R

Rack-mountable 20 A PDU with nine NEMA 5-20R outlets, multi-stage surge protection and voltage monitoring

  • Rear outlets oriented for wall warts prevent blocked connections
  • Front outlet provides convenient access for temporary devices
  • 20 A input current supports high-power equipment loads
  • Multi-stage surge protection with visual status indicators safeguards gear
  • Selectable voltage protection via dry contact auto-disconnects during over/under voltage

NEXSYS 20 A rack PDU

The Middle Atlantic PDX-920R is a 20 A NEXSYS rack-mounted power distribution unit with nine NEMA 5-20R outlets. It is designed for installers who need reliable surge and voltage protection in compact AV racks, digital-signage enclosures or kiosks. Two mounting options — a clamp and L-brackets — attach to a Lever Lock plate for tool-free installation. Front and side LEDs show surge status at a glance.

Upgrade from unprotected strips

Basic power strips lack multi-stage surge suppression and automatic over- or under-voltage shutdown. The PDX-920R adds selectable voltage protection via a dry-contact port that cuts power during unsafe conditions and restores it when voltage returns to normal. The jump is worth it when sensitive AV gear must stay online through brownouts or transients without manual reset.

Nine outlets with transformer spacing

Eight rear outlets are oriented so that wall-wart transformers do not block neighbouring sockets, and a single front outlet provides convenient temporary access. The 20 A rating supports typical behind-the-display loads such as media players, small amplifiers and network switches. Installations that require more than nine outlets or a higher current rating will need an additional PDU or a larger unit.

Highlights

  • Rear outlets oriented for wall warts prevent blocked connections
  • Front outlet provides convenient access for temporary devices
  • 20 A input current supports high-power equipment loads
  • Multi-stage surge protection with visual status indicators safeguards gear
  • Selectable voltage protection via dry contact auto-disconnects during over/under voltage

Specifications

BrandMiddle Atlantic
ModelPDX-920R
Part NumberPDX-920R

Questions about this item

What rack-mounting hardware is included with the PDX-920R?

The unit includes a clamp and L-brackets that can be attached to a Lever Lock plate for tool-free mounting inside a rack, kiosk or in-wall box.

How is the PDX-920R connected to the power source and what step is often missed?

A standard 9 ft power cord is supplied; the step often missed is selecting the desired cord length before installation to ensure clean cable management.

What front-panel indicators show the surge-protection status on the PDX-920R?

Visual indicators on the front and side display the surge-status so you can confirm protection is active.
