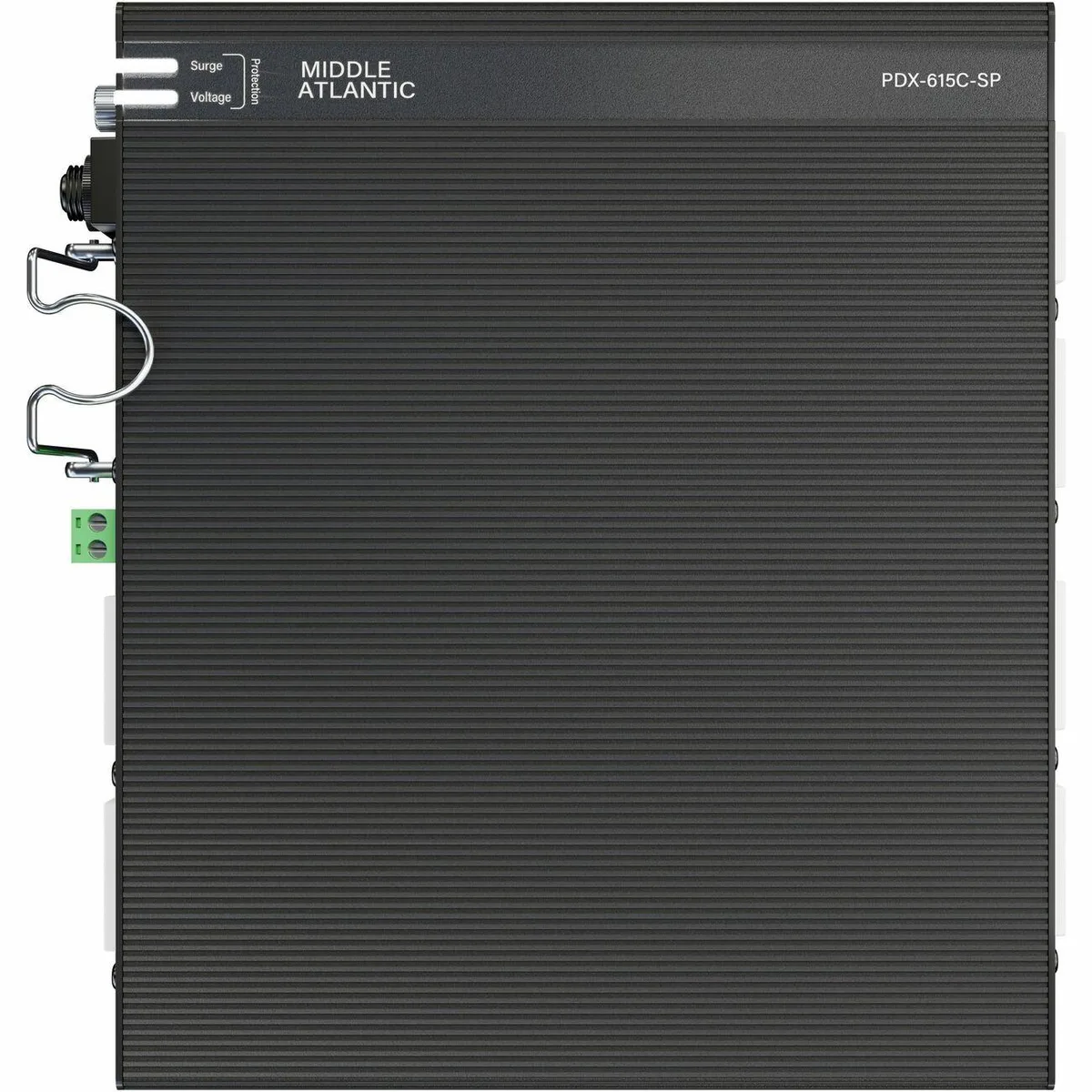

Compact black metal PDU with six NEMA 5-15R outlets, clamp and L-brackets

Middle Atlantic

Middle Atlantic PDX-615C-SP 15 A 6-Outlet PDU

SKU CH-7K5X-K686J MPN PDX-615C-SP

Compact 15 A PDU with six NEMA 5-15R outlets, surge protection and selectable voltage monitoring for digital-signage installs

  • TypePDUs & Line Conditioners
  • Output Connector(s)(6) NEMA 5-15R Outlets
  • Compact 0U design fits behind displays
  • Six NEMA 5-15R outlets accept wall-wart transformers without blocking
  • 15 A surge-protected power with automatic over/under voltage shutdown
  • Clamp and L-bracket mounts enable tool-free rack or wall installation

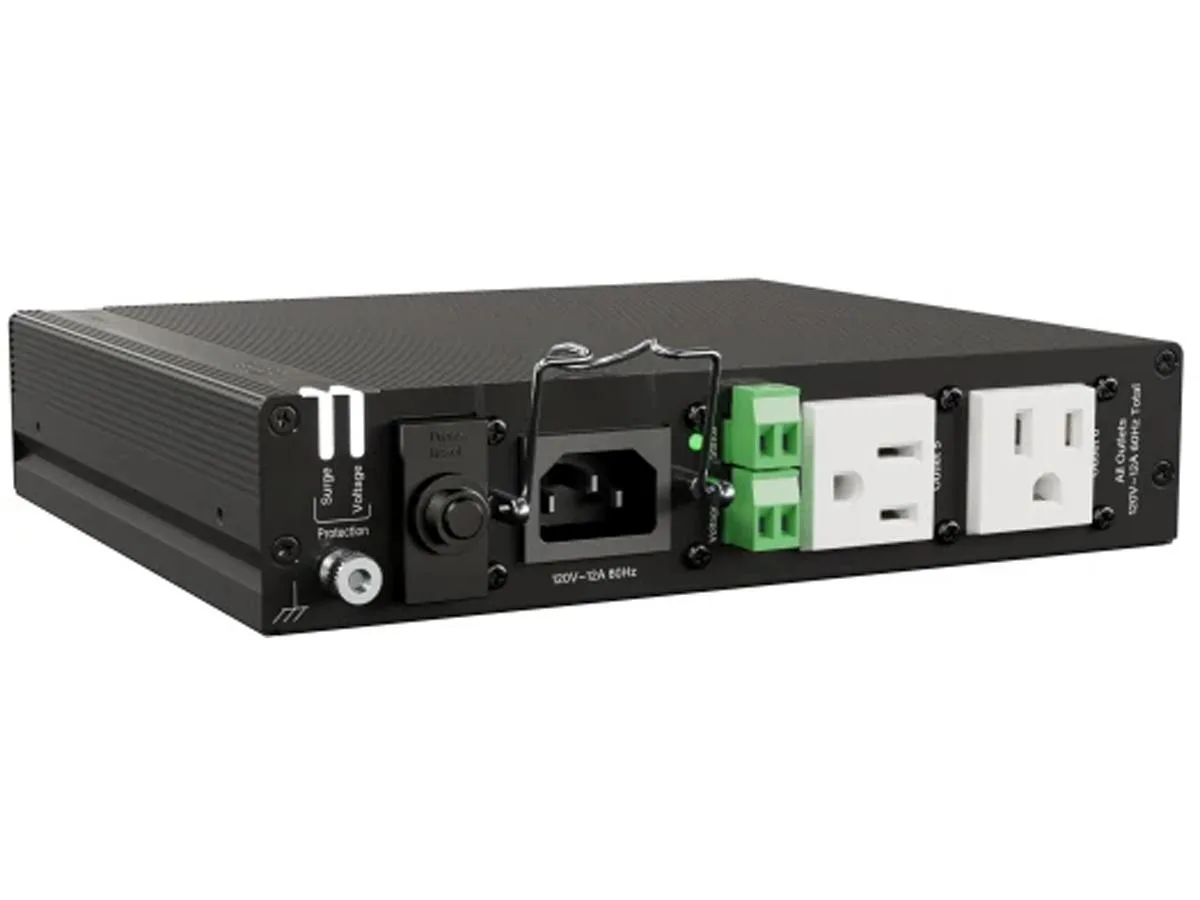

  • IEC inlet plus included 2' cord simplifies cable management

Compact 15 A PDU for digital signage

The Middle Atlantic PDX-615C-SP is a 0U rack-mountable power distribution unit rated at 15 A and 120 V AC. It provides six NEMA 5-15R outlets oriented to accept bulky DC transformers without blocking adjacent sockets. The compact 1.7-inch height suits behind-the-display installations in kiosks or in-wall boxes.

Tool-free mounting with clamp and L-brackets

Two mounting solutions ship in the box: a clamp and L-brackets that both attach to a Lever Lock plate for tool-free installation inside a rack or enclosure. A standard 2-foot cord with a NEMA 5-15P plug is included, while the IEC inlet allows the installer to substitute a longer cord for cleaner cable routing. No software configuration is required.

Six outlets with surge and voltage protection

The unit delivers 120 V AC across all six receptacles with a 100% MOV-free surge protection design that includes visual status indicators on the front and side. Selectable over-under voltage protection automatically disconnects the outlets when input moves outside acceptable limits and restores power once voltage returns to normal. The 15 A rating sets the total load ceiling for connected equipment.

Highlights

  • Compact 0U design fits behind displays
  • Six NEMA 5-15R outlets accept wall-wart transformers without blocking
  • 15 A surge-protected power with automatic over/under voltage shutdown
  • Clamp and L-bracket mounts enable tool-free rack or wall installation
  • IEC inlet plus included 2' cord simplifies cable management

Specifications

BrandMiddle Atlantic
ModelPDX-615C-SP
Part NumberPDX-615C-SP
TypePDUs & Line Conditioners
Output Connector(s)(6) NEMA 5-15R Outlets
Shipping weight3.18 kg
Package size406 × 267 × 64 mm

Questions about this item

How do I confirm the surge protection is active after installing the PDX-615C-SP?

The unit has visual surge-status indicators on the front and side; a lit indicator means the protection circuit is operational.

What comes in the box and what must I source separately for the PDX-615C-SP?

The package includes the 6-outlet PDU, a clamp, L-brackets, and a standard 2' power cord; no extra items are required for basic operation.

Which version of the NEXSYS Compact PDU should I choose for a 15 A, 6-outlet requirement?

The PDX-615C-SP is the 15 A model with six NEMA 5-15R outlets; select this SKU when you need that exact rating and outlet count.
