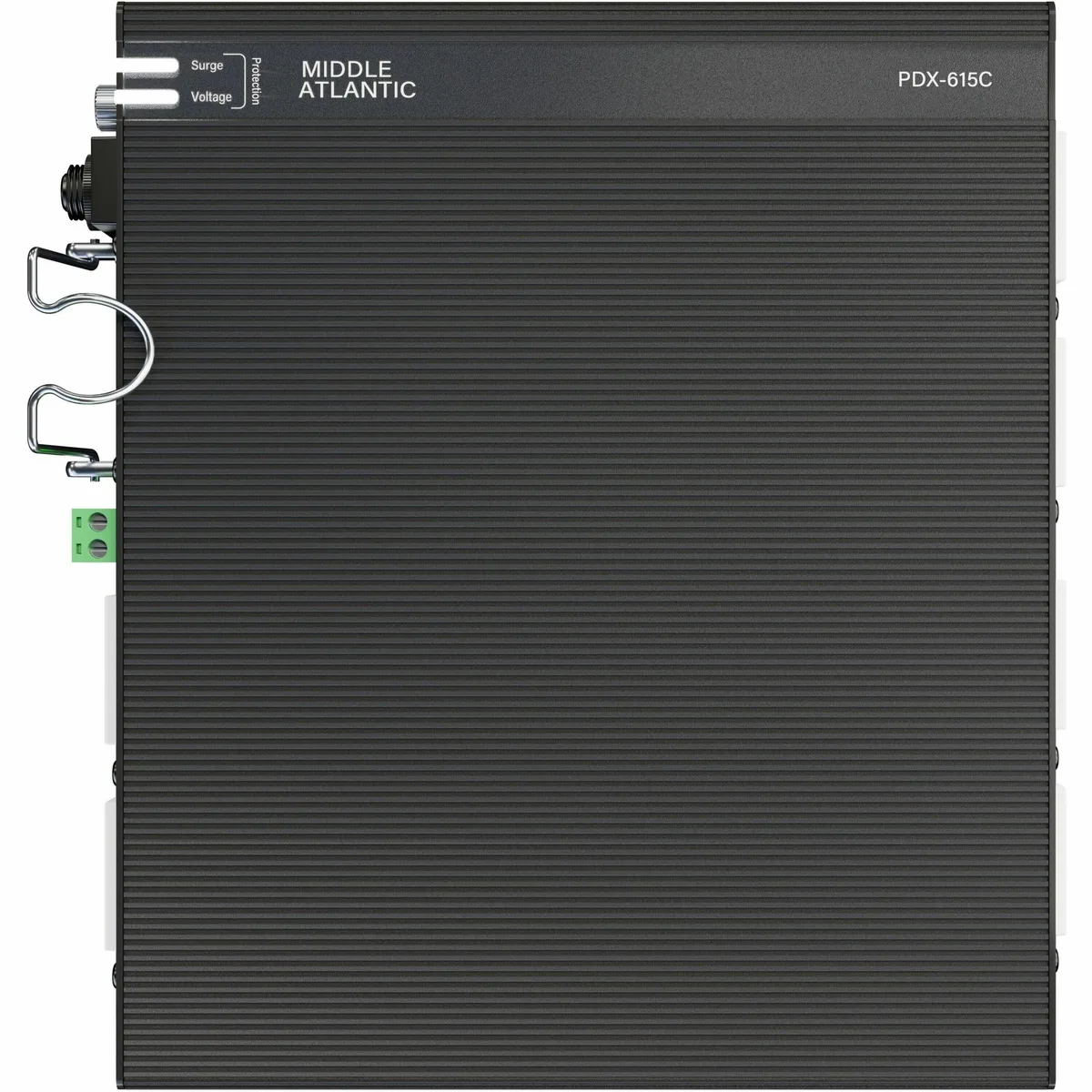

Compact vertical PDU, black metal, six front outlets, 1.7 by 8.1 inches

Middle Atlantic

Middle Atlantic PDX-615C PDU 15A 6 Outlet 120V 0U

SKU CH-3433-2DGGT MPN PDX-615C

A 15 A vertical PDU with six NEMA 5-15R outlets, multi-stage surge protection, and clamp or L-bracket mounting for 120 V rack or display installs

  • TypePDUs & Line Conditioners
  • 15 A rating powers six NEMA 5-15R outlets
  • 0U vertical design fits behind displays without using rack space
  • Multi-stage MOV surge protection guards connected equipment
  • Clamp and L-bracket hardware enables tool-free mounting
  • 7" profile suits tight kiosk and in-wall installations

Compact NEXSYS PDU for digital signage

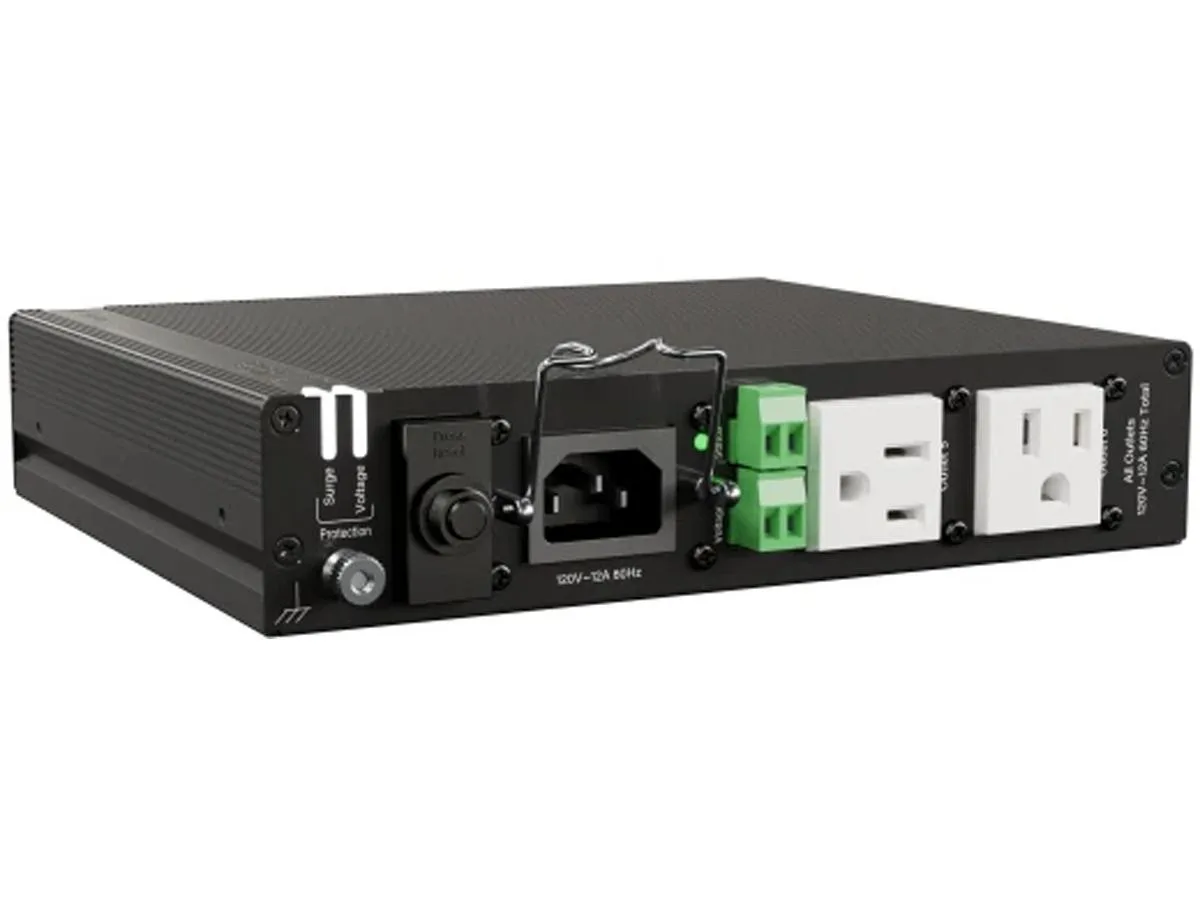

The Middle Atlantic PDX-615C is a 0U power distribution unit built for behind-the-display installations such as digital signage, kiosks and in-wall boxes. It provides six NEMA 5-15R outlets fed by a NEMA 5-15P plug at 120 V AC and 15 A. Clamp and L-bracket hardware allows tool-free mounting on a Lever Lock plate or standard rack.

Multi-stage surge protection under load

The unit uses three-stage MOV surge protection with visual status indicators on the front and side panels. This circuitry remains active during continuous operation, diverting transient voltage events without interrupting power to connected displays or media players. The 15 A rating supports sustained draw from multiple devices simultaneously.

Passive cooling and minimal footprint

With no moving parts, the PDU runs silently and adds no measurable acoustic load to the environment. Its compact chassis measures 1.7 inches high, 8.1 inches wide and 7 inches deep, fitting into tight cavities behind screens. Power consumption is limited to the attached equipment, so the strip itself draws negligible current.

Highlights

  • 15 A rating powers six NEMA 5-15R outlets
  • 0U vertical design fits behind displays without using rack space
  • Multi-stage MOV surge protection guards connected equipment
  • Clamp and L-bracket hardware enables tool-free mounting
  • 7" profile suits tight kiosk and in-wall installations

Specifications

BrandMiddle Atlantic
ModelPDX-615C
Part NumberPDX-615C
TypePDUs & Line Conditioners
Shipping weight2.72 kg
Package size411 × 267 × 64 mm

Questions about this item

Does the PDX-615C generate noticeable heat or fan noise when running at 15 A continuously?

The PDX-615C has no fan and no moving parts, so it runs silently. Heat output is minimal because it simply distributes 120 V AC through passive surge-protection circuitry.

What mounting hardware must I already have to install the PDX-615C in a rack?

The unit ships with a clamp and L-brackets. You only need a standard Lever Lock plate or similar rack rail to attach those brackets for tool-free 0U installation.

Will the NEMA 5-15R outlets on the PDX-615C accept the older NEMA 5-15P plugs on my existing displays?

Yes. All six receptacles are standard NEMA 5-15R, so any legacy equipment with a NEMA 5-15P plug will connect directly without adapters.
