Black aluminium M.2 2280 heatsink 77 by 23.2 by 10.5mm with thermal pads and screws

Micro Connectors

Micro Connectors NGFFM2-HSDS-BK M.2 2280 SSD cooling 10.5mm

SKU CH-F34V-FC2WW MPN NGFFM2-HSDS-BK.

Aluminium heat sink with thermal pads cools 2280 M.2 SSDs, adjusting for single- or double-sided boards in a 10.5 mm profile

  • MaterialAluminum
  • Dimensions77 x 23.2 x 10,5mm
  • Weight20g
  • Package ContentsM.2 Heat Sink, Thermal Pads, Screws, Screwdriver, QIG
  • Fits 2280 M.2 SSDs with a 10.5 mm total height

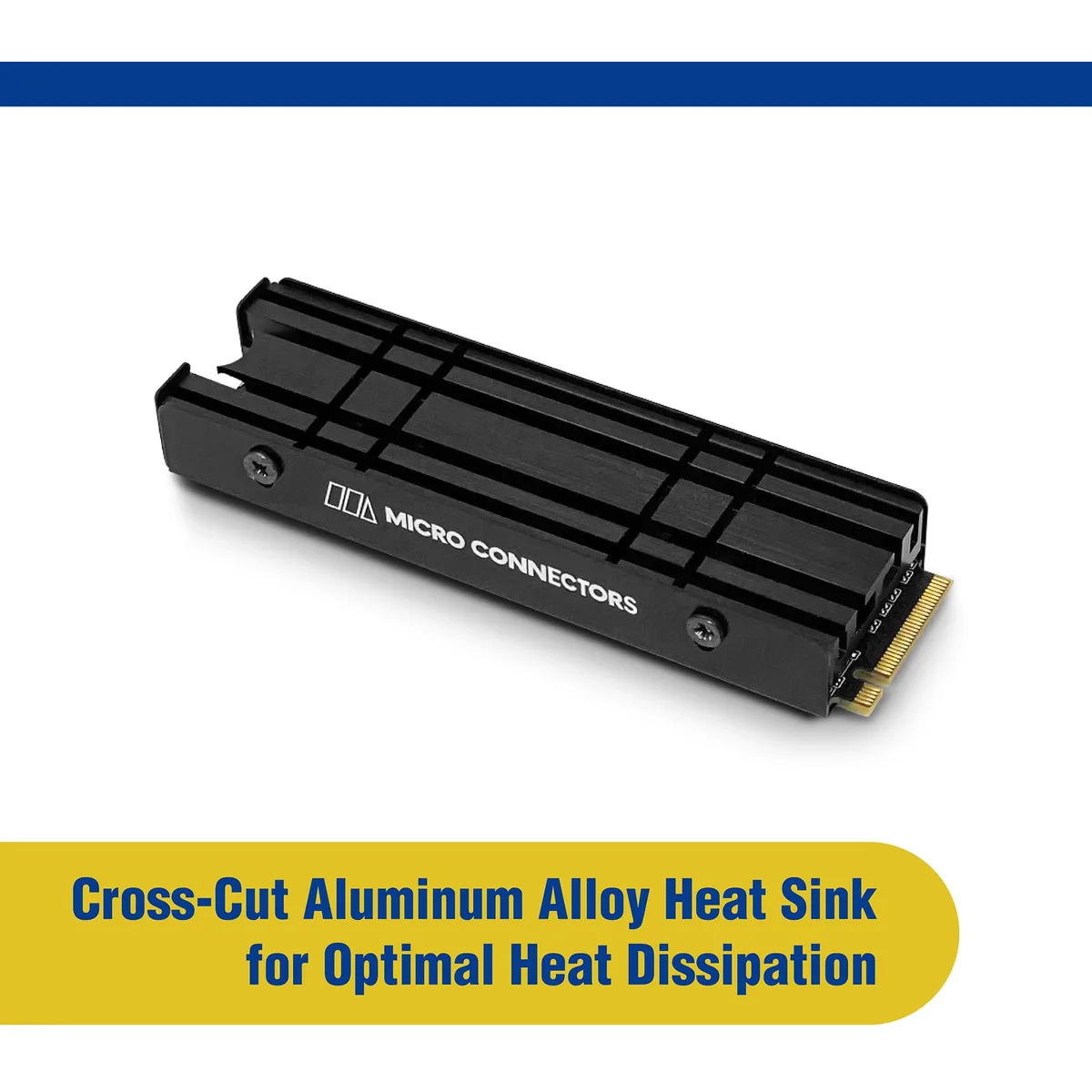

  • Cross-cut aluminum alloy heatsink maximises heat dissipation

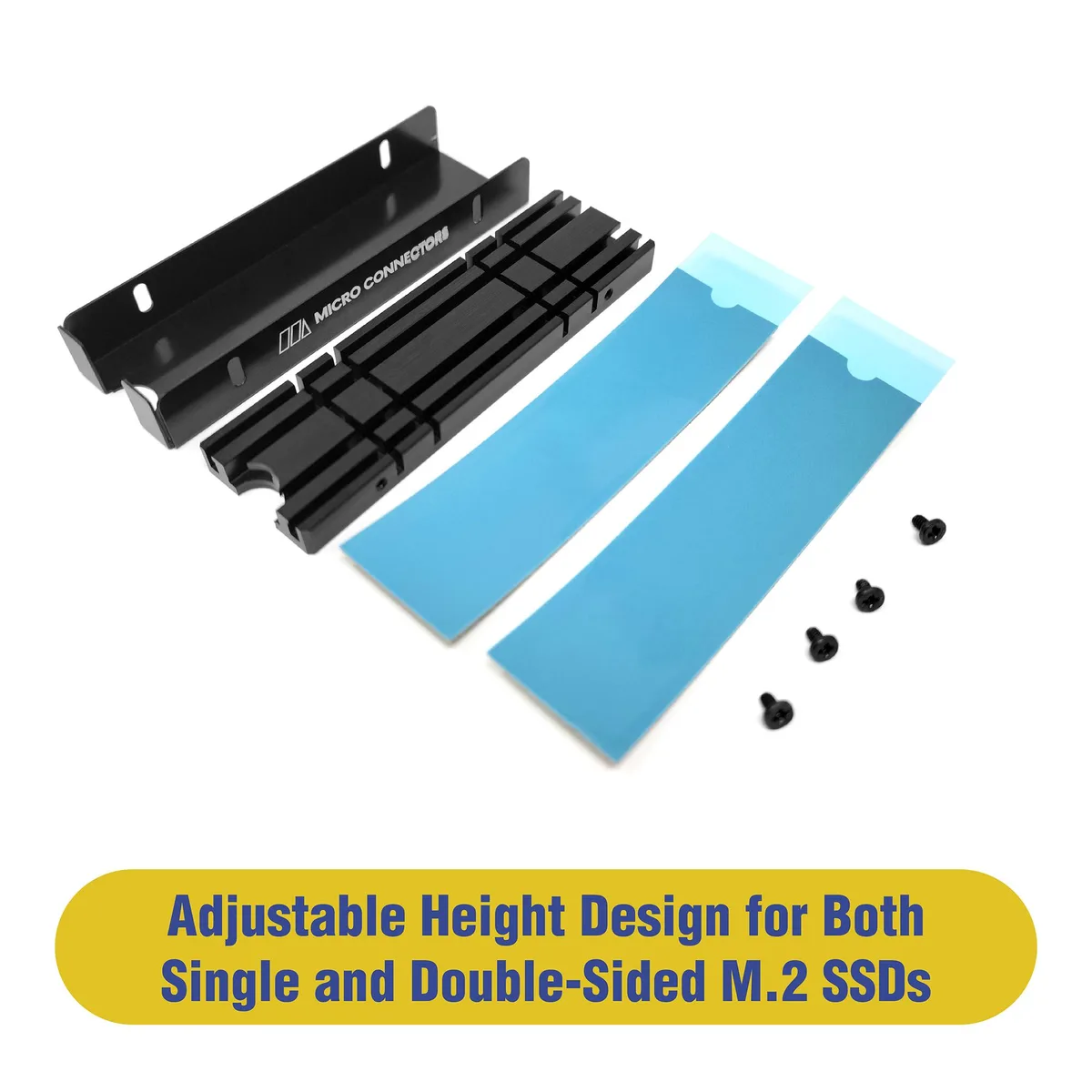

  • Adjustable-height design works with single- and double-sided drives
  • Includes thermal pads, screws, screwdriver and quick-install guide
  • Compact 77 x 23.2 mm footprint suits PS5 and tight PC spaces

M.2 2280 SSD double-sided heatsink

This aluminum heat sink fits 2280 length M.2 SSDs and supports both single-sided and double-sided module layouts. The adjustable height design lets the assembly sit at 10.5 mm total height once the drive is installed. It is compatible with PC motherboards and the PS5 M.2 expansion slot. The kit includes thermal pads, mounting screws, a screwdriver and a quick-install guide.

Low-profile 10.5 mm clearance constraint

The finished stack height of 10.5 mm determines whether the cooler fits inside tight laptop bays, small-form-factor cases or the PS5 expansion cover. Builders must verify that their chassis or motherboard shield allows at least this much vertical space above the M.2 slot. No active fan is present so cooling relies entirely on case airflow across the cross-cut aluminum fins. Thermal performance will vary with the surrounding air velocity.

Adjustable screw installation with base plate

The kit uses a two-piece design where the base plate screws onto the motherboard standoff and the top heatsink section height is adjusted before final tightening. Thermal pads must cover all controller and NAND surfaces on double-sided drives; missing a chip creates a hot spot. Over-tightening the screws can warp the PCB or strip the soft aluminum threads. The included screwdriver matches the supplied fasteners.

Highlights

  • Fits 2280 M.2 SSDs with a 10.5 mm total height
  • Cross-cut aluminum alloy heatsink maximises heat dissipation
  • Adjustable-height design works with single- and double-sided drives
  • Includes thermal pads, screws, screwdriver and quick-install guide
  • Compact 77 x 23.2 mm footprint suits PS5 and tight PC spaces

Specifications

BrandMicro Connectors
MaterialAluminum
Dimensions77 x 23.2 x 10,5mm
Weight20g
Package ContentsM.2 Heat Sink, Thermal Pads, Screws, Screwdriver, QIG

Questions about this item

Should I pick this kit for a single-sided or double-sided M.2 2280 drive?

The adjustable height design fits both single-sided and double-sided 2280 SSDs, keeping total height at 10.5 mm once installed.

What does the 10.5 mm height mean once the drive is fitted?

The assembled stack — heat sink, thermal pads and SSD — measures 10.5 mm tall, so it clears tight motherboard slots and the PS5 expansion bay.

How does the cross-cut aluminium design affect heat dissipation?

Cross-cut fins increase surface area on the 77 x 23.2 mm aluminium body, moving heat away from the SSD through the included thermal pads.
