Black aluminum finned heatsink with silicone pad and rings, 10mm tall for M.2 2280 SSD

Micro Connectors

Micro Connectors NGFFM2-HS803-BK 10mm SSD cooling

SKU CH-2B1Y-36EEV MPN NGFFM2-HS803-BK

Aluminium heatsink with thermal pad and silicone rings cools 2280 M.2 NVMe SSDs on motherboards or adapters

  • MaterialAluminum, silicone
  • FeaturesSupports 2280 length M.2 SSD Aluminum alloy fins for optimal

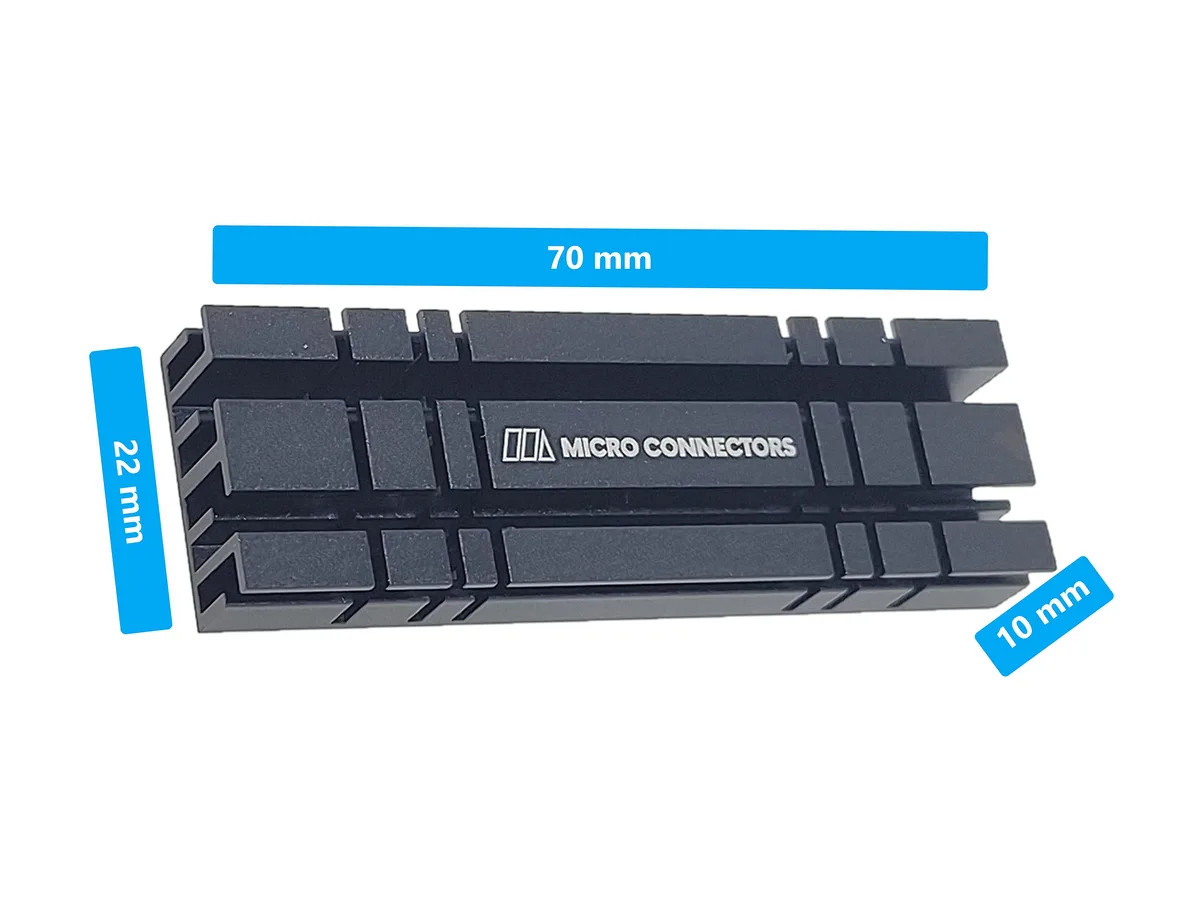

  • Dimensions70.00 x 22.00 x 10.00 mm
  • Weight25g

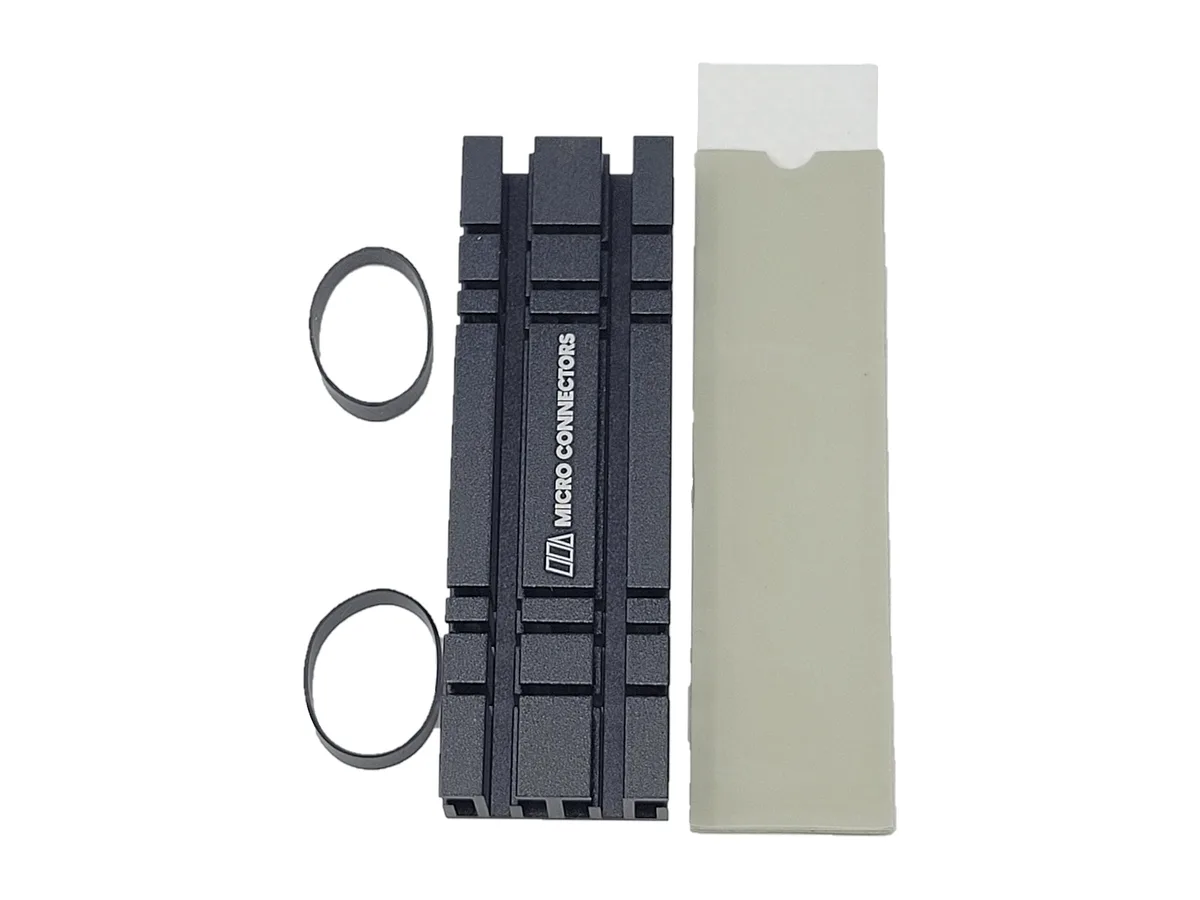

  • Package ContentsM.2 Heat Sink, silicone thermal pad, silicone rings, QIG
  • Keeps 2280 M.2 NVMe drives cooler with aluminum alloy fins
  • Low 10mm profile fits standard motherboard slots and adapters
  • Silicone thermal pad included for quick, tool-free installation
  • Silicone rings lock heatsink in place without screws
  • Lightweight 25g aluminum construction adds minimal mass to the board

M.2 NVMe SSD 10mm heat sink

The Micro Connectors NGFFM2-HS803-BK is an aluminium heatsink designed for 2280 length M.2 NVMe solid-state drives. It suits builders who want to lower drive temperatures on a motherboard slot or an adapter card without adding bulk. The 10mm profile fits standard spacing constraints. Buyers who need cooling for shorter 2230 or longer 22110 modules cannot use this model.

Thermals and power

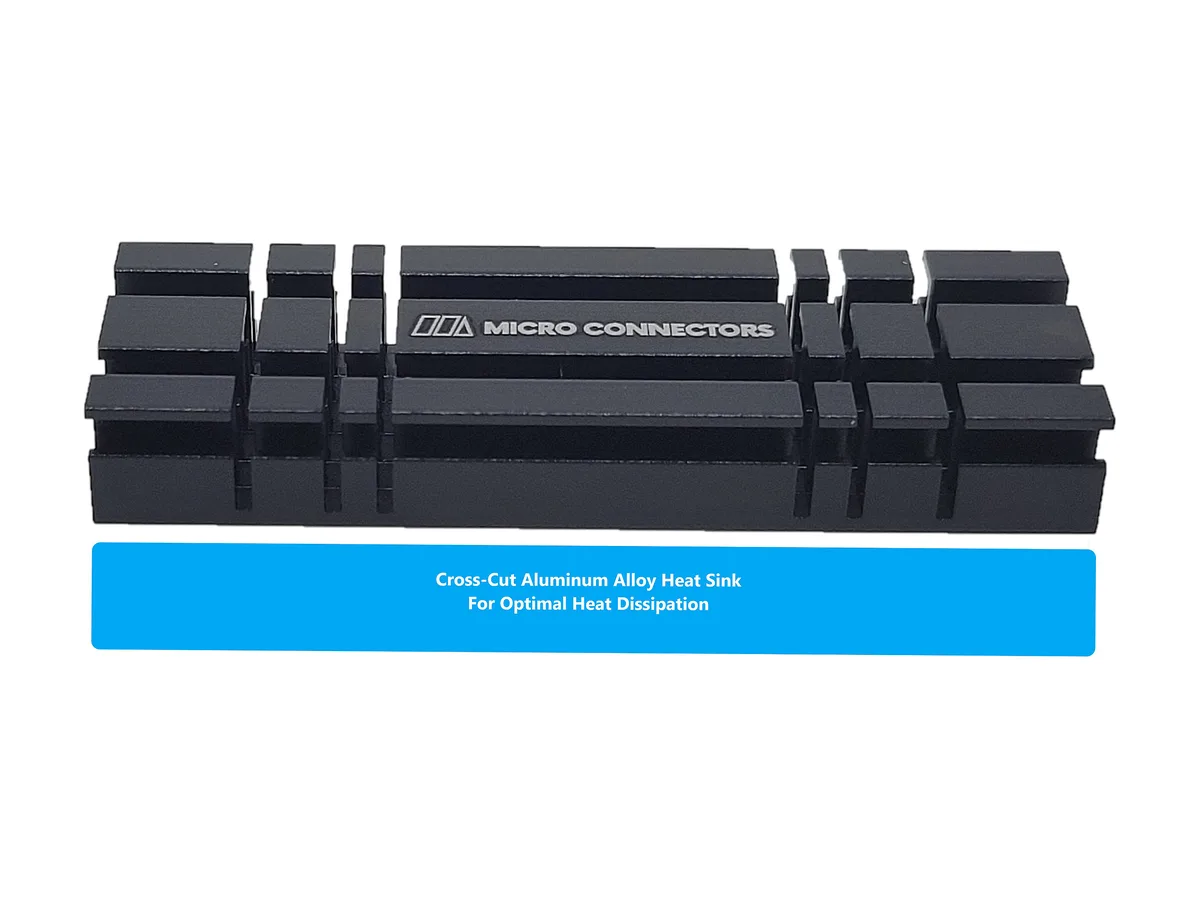

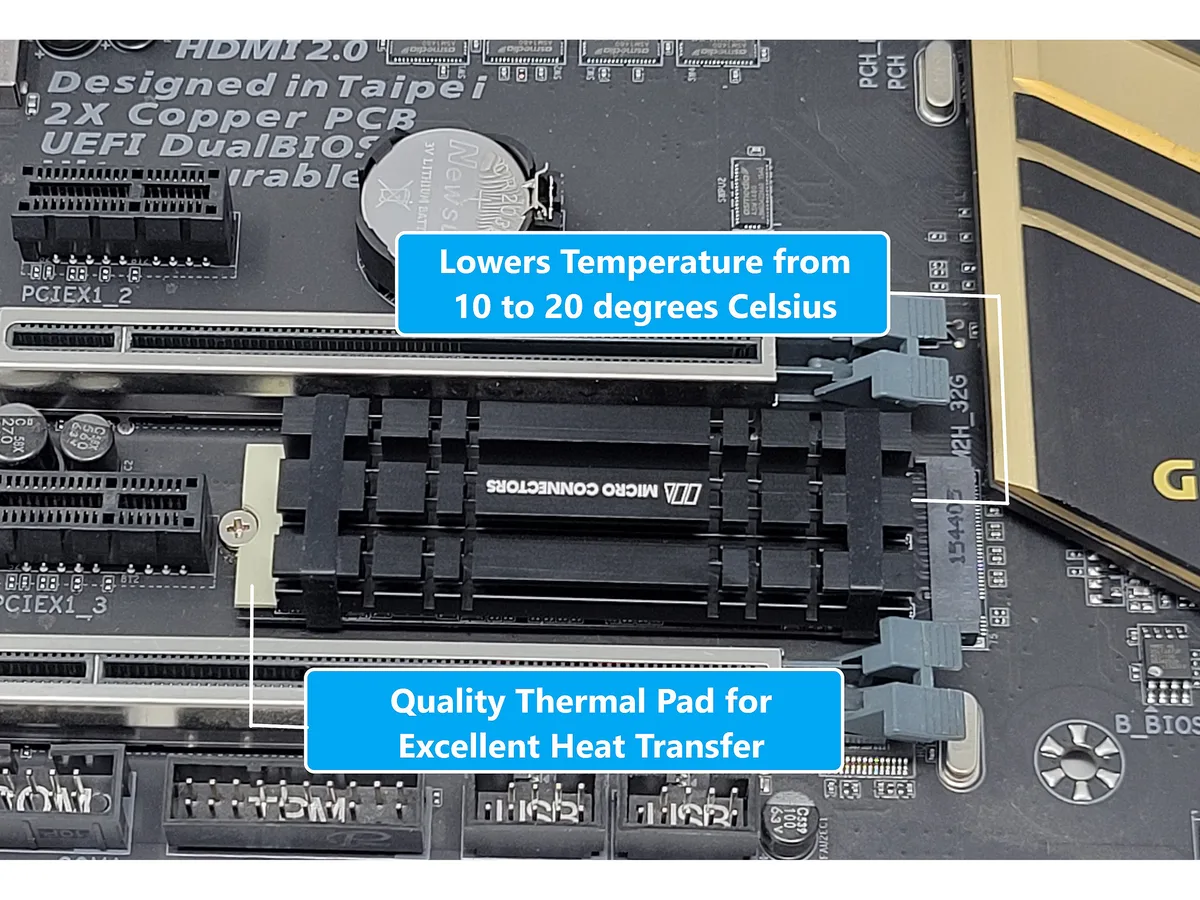

Aluminium alloy fins draw heat away from the controller and NAND during sustained reads and writes. A silicone thermal pad bridges the gap between drive and heatsink for consistent contact. The assembly adds 25g and draws no power of its own. No fan is included, so airflow inside the case determines the final temperature drop.

Build and mounting

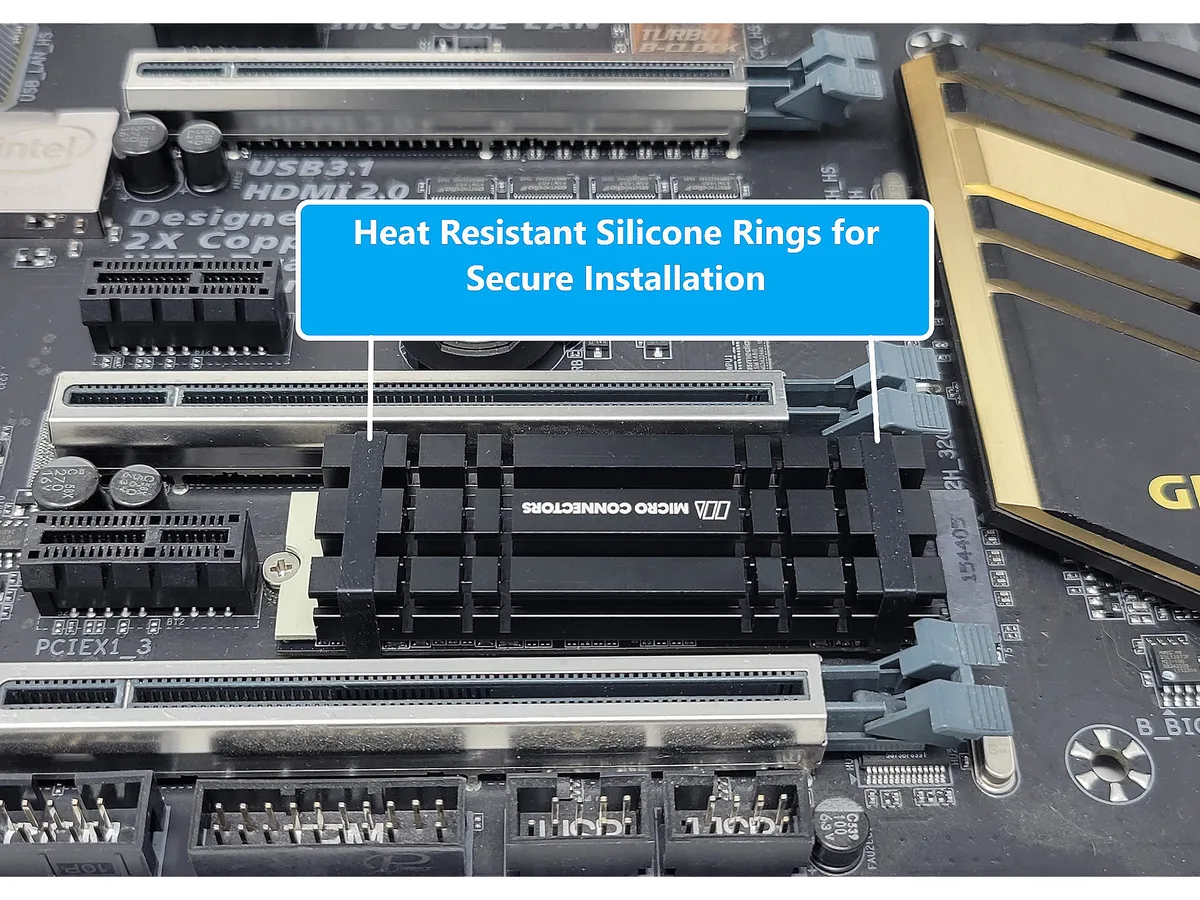

The heatsink ships with a pre-cut thermal pad and heat-resistant silicone rings that wrap around the drive and fins for a tool-free fit. The package also contains a quick installation guide. The 70.00 x 22.00 x 10.00 mm footprint matches the standard 2280 slot layout on motherboards and adapter cards. No screws or adhesive are required.

Highlights

  • Keeps 2280 M.2 NVMe drives cooler with aluminum alloy fins
  • Low 10mm profile fits standard motherboard slots and adapters
  • Silicone thermal pad included for quick, tool-free installation
  • Silicone rings lock heatsink in place without screws
  • Lightweight 25g aluminum construction adds minimal mass to the board

Specifications

BrandMicro Connectors
ModelNGFFM2-HS803-BK
MaterialAluminum, silicone
FeaturesSupports 2280 length M.2 SSD
Aluminum alloy fins for optimal heat dissipation
Works on motherboards or M.2 adapters
Easy installation with thermal pad
Silicone rings included to secure heat sinks
Dimensions70.00 x 22.00 x 10.00 mm
Weight25g
Package ContentsM.2 Heat Sink, silicone thermal pad, silicone rings, QIG
Shipping weight0.05 kg
Package size208 × 94 × 8 mm

Questions about this item

How do I install the 10 mm heatsink on a 2280 NVMe SSD and what step is often missed?

Place the supplied silicone thermal pad on the SSD controller, set the aluminum fin array on top, then loop the two silicone rings over the fins and press them into the mounting holes; the step most people skip is seating both rings fully so the pad makes even contact.

What maintenance or replacement will this cooler need over time?

The aluminum fins and silicone rings are passive and require no service; only the thermal pad may degrade after several years and should be replaced with a 10 mm thick pad of similar conductivity if temperatures rise.

What thermal limit appears first when the SSD runs sustained heavy writes?

The 10 mm fin height and 25 g mass limit how much heat can be absorbed before the SSD reaches its own throttle point, so the drive’s internal thermal throttle is the first ceiling you hit.
