Mellanox active fiber cable QSFP connectors LSZH jacket 1m

Mellanox Technologies

Mellanox Technologies MFA1A00E001 active fiber network ethernet cable 1m 100Gb/s QSFP LSZH

SKU CH-0FRQ-82N67 MPN MFA1A00E001

Active fibre cable delivers 100 Gb/s Ethernet or InfiniBand over one metre with LSZH jacket

  • 100 Gb/s aggregated bandwidth from four 28 Gb/s lanes
  • Active optical design keeps power within class-4 QSFP+ limits
  • LSZH jacket reduces smoke and toxic fumes in fire
  • 100 % factory tested on Mellanox gear for guaranteed interoperability
  • 1 metre reach suits rack-to-rack and adjacent cabinet links

High-bandwidth active optical cable

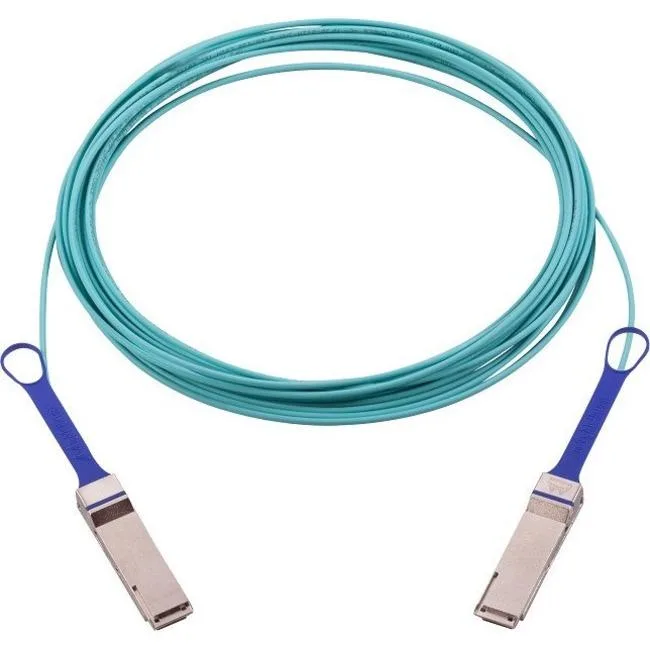

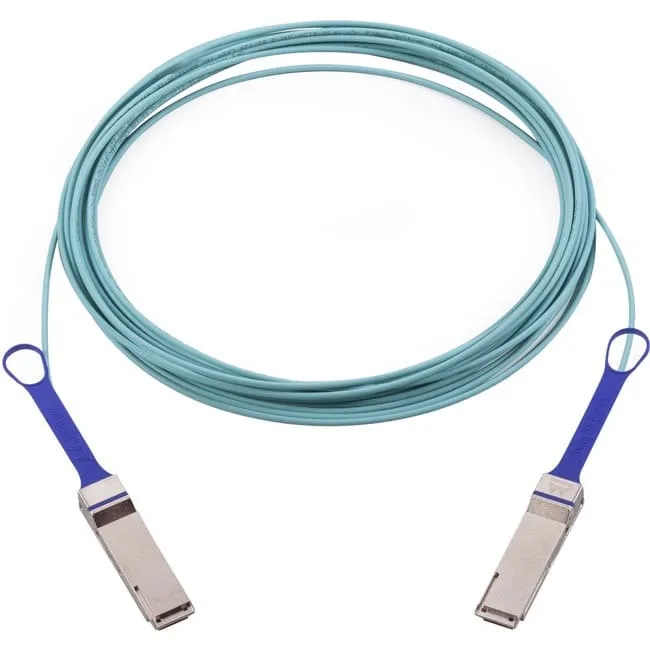

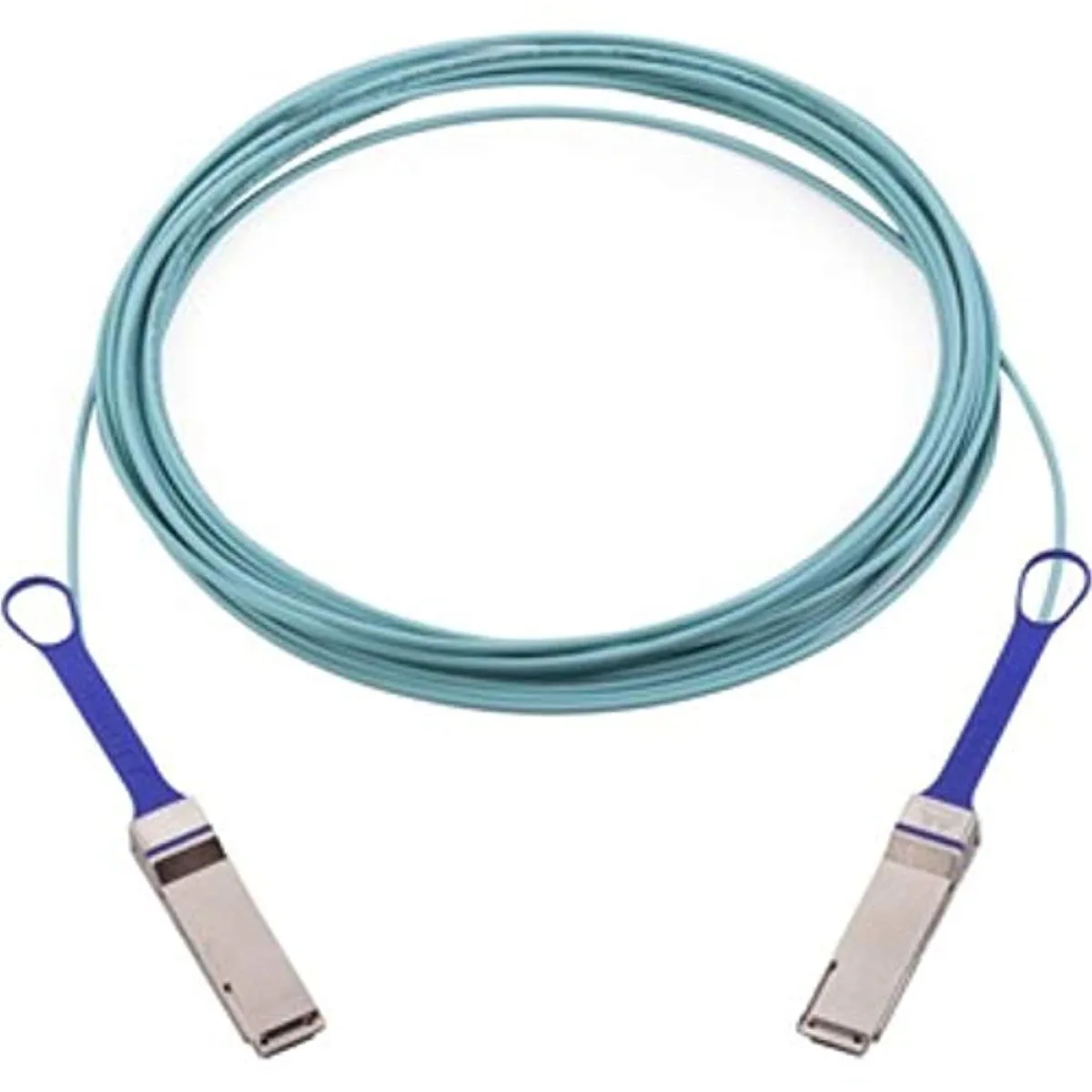

The Mellanox MFA1A00E001 is an active fiber cable built for 100 Gb/s InfiniBand EDR and Ethernet links. It uses four full-duplex lanes running at up to 28 Gb/s each to deliver the rated aggregate throughput. The assembly suits data-centre interconnects between compatible adapters and switches.

Low power draw and LSZH jacket

Each cable meets the class-4 QSFP+ power consumption limit, keeping thermal load minimal inside dense racks. The low-smoke zero-halogen sheath reduces toxic emissions in a fire event. Mellanox tests every unit on its own equipment to verify signal integrity and interoperability before shipment.

Replaces copper direct-attach at longer reach

This active optical assembly covers distances where passive copper DACs exceed their reliable length or grow too bulky. It upgrades links that need the 100 Gb/s aggregate rate without the power and bend-radius penalties of thicker copper. The jump is worth it when rack spacing or airflow rules out heavier cable bundles.

Highlights

  • 100 Gb/s aggregated bandwidth from four 28 Gb/s lanes
  • Active optical design keeps power within class-4 QSFP+ limits
  • LSZH jacket reduces smoke and toxic fumes in fire
  • 100 % factory tested on Mellanox gear for guaranteed interoperability
  • 1 metre reach suits rack-to-rack and adjacent cabinet links

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the MFA1A00E001 active fiber cable and which orientation step is often missed?

Align the QSFP module key with the port slot, insert until the latch clicks, then remove the protective caps from both LC connectors before seating them.

What maintenance or replacement will the MFA1A00E001 active fiber cable need over time?

Inspect LC ferrules for dust before each reconnect; replace the cable if insertion loss rises or the latch no longer holds the module securely.

What limit appears first on the MFA1A00E001 active fiber cable during sustained 100Gb/s operation?

Each of the four lanes is rated to 28Gb/s per direction, so the 100Gb/s aggregate is the ceiling; sustained loads at that rate will hit the lane limit first.
