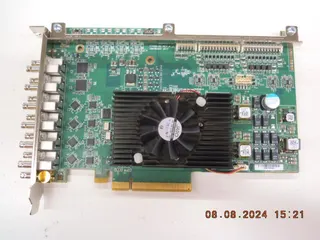

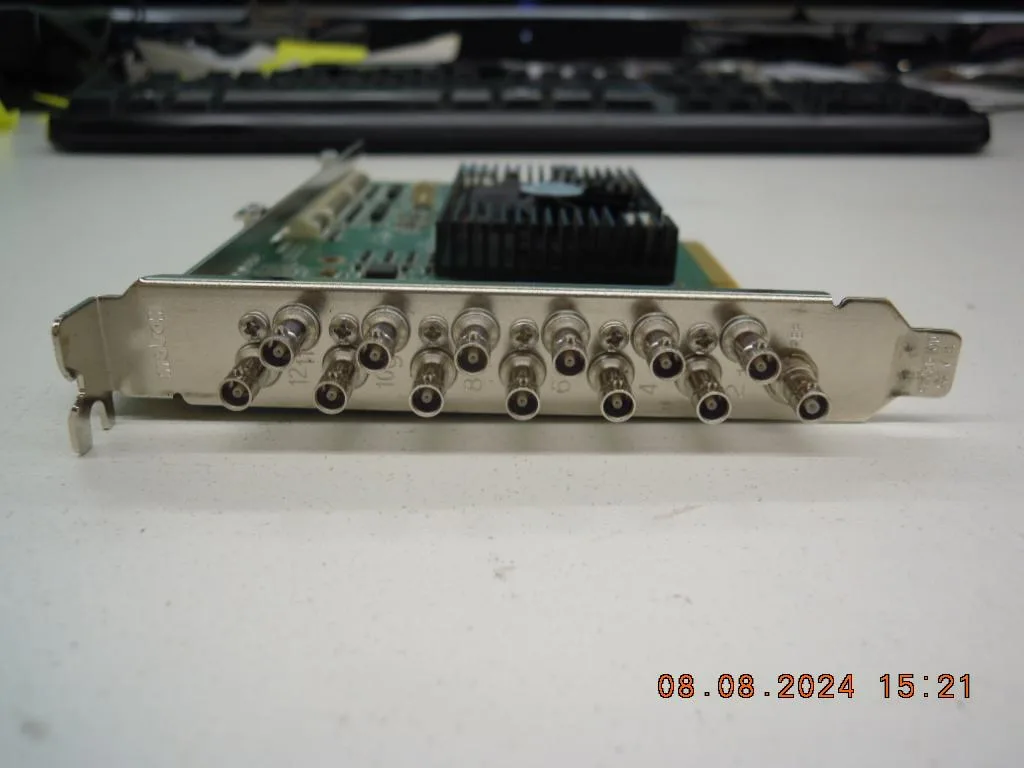

Half-length PCI Express card with twelve SDI connectors on the bracket

matrox

Matrox X.mio3 FH 12 SDI I/O PCI Express Card

SKU CH-E5E6-C6X1X

Half-length PCI Express card delivers up to 12 reconfigurable SDI inputs and outputs with on-board motion-adaptive de-interlacing, scaling, compositing and frame synchronisation

  • Specifications.mio3 FH provides multi-channel SDI I/O with hardware based
  • FeaturesTechnical Details Half-length PCI express card Re-configurab
  • Half-length PCIe form factor fits dense server builds
  • 12 reconfigurable SDI ports handle SD through 4K workflows
  • On-board MADI de-interlacer and scaler offload heavy video processing
  • 16 AES/EBU plus 8 LTC channels sync professional audio and timecode
  • RS-422 control and single-slot SDK simplify OEM integration

Multi-Channel SDI I/O Card

The Matrox X.mio3 FH is a half-length PCI Express card that delivers up to 12 reconfigurable SDI inputs and outputs from SD to 4K. It is built for OEMs developing channel-in-a-box systems, video servers, broadcast graphics, encoders, transcoders, multiviewers and switchers. Hardware-accelerated processing handles motion-adaptive de-interlacing, up/down/cross scaling and multilayer compositing across every channel. The card also provides AES/EBU, LTC, GPIO and RS422 connectivity in a single-slot design.

Build Integration Requirements

The card occupies one half-length PCI Express slot and consolidates I/O that would otherwise require multiple dedicated cards. On-board frame synchronizers, VANC and HANC support, and analog blackburst reference input (tri-level or bi-level) reduce external synchronization gear. Automatic video relay bypass maintains signal continuity through power loss or software failure. A single comprehensive SDK covers development for all supported functions, simplifying driver and application integration.

Capacity and Headroom

The 12 reconfigurable SDI ports can be assigned as any mix of inputs and outputs to match changing workflow demands. Up to 16 channels of AES/EBU audio and 8 LTC timecode connections provide ample headroom for multi-language or multi-programme delivery. Processing resources are shared across all channels, so simultaneous 4K de-interlacing, scaling and compositing on every port will saturate the hardware. Projects requiring more than 12 SDI ports or higher-density audio routing exceed the card’s fixed I/O and processing budget.

Highlights

  • Half-length PCIe form factor fits dense server builds
  • 12 reconfigurable SDI ports handle SD through 4K workflows
  • On-board MADI de-interlacer and scaler offload heavy video processing
  • 16 AES/EBU plus 8 LTC channels sync professional audio and timecode
  • RS-422 control and single-slot SDK simplify OEM integration

Specifications

Brandmatrox
ModelX.mio3 FH
Specifications.mio3 FH provides multi-channel SDI I/O with hardware based video processing in a half-length PCI express card. This card provides up to 12 reconfigurable IOs, from SD to 4K, along with support for AES/EBU, LTC and GPIO to provide for versatile connectivity. The multi-channel hardware processing accelerates compute-intensive operations including motion-adaptive de-interlacing, up/down/cross scaling and mixing/compositing for all resolutions, including 4K.
FeaturesTechnical Details
Half-length PCI express card
Re-configurable IO that can support up to 12 SDI IO
Frame synchronizers
VANC and HANC support for each input and output
Analog black burst reference input (tri-level or bi-level)
On-board multi-channel MADI (Motion Adaptive De-Interlacer)
On-board multi-channel Up/Down/Cross scaler
On-board multilayer compositor
Automatic video relay bypass
Live zero-frame delay video and audio mixers
Up to 16 channels of AES/EBU inputs and outputs
Up to 8 LTC inputs and outputs
RS422 control

Questions about this item

How many reconfigurable SDI inputs and outputs can the X.mio3 FH handle simultaneously?

The card supports up to 12 reconfigurable SDI I/O channels, each configurable as an input or output from SD through 4K resolution.

What thermal or acoustic load should I expect when the card runs continuously in a server chassis?

The half-length PCIe card uses passive cooling with no onboard fan, so it adds no audible noise; sustained operation relies on chassis airflow across the heatsink.

Which external reference signal does the card require for frame-accurate synchronisation?

An analog blackburst reference input accepting tri-level or bi-level sync is provided on the bracket for genlocking all channels.
