Maswell Communication Tech. LTE+WiFi Screw-Mount Antenna IP67
Dual LTE and Wi-Fi antenna with screw mounting, IP67 rating and five-metre cables for vehicle or equipment installation
- TypeAntenna
- ColorBlack

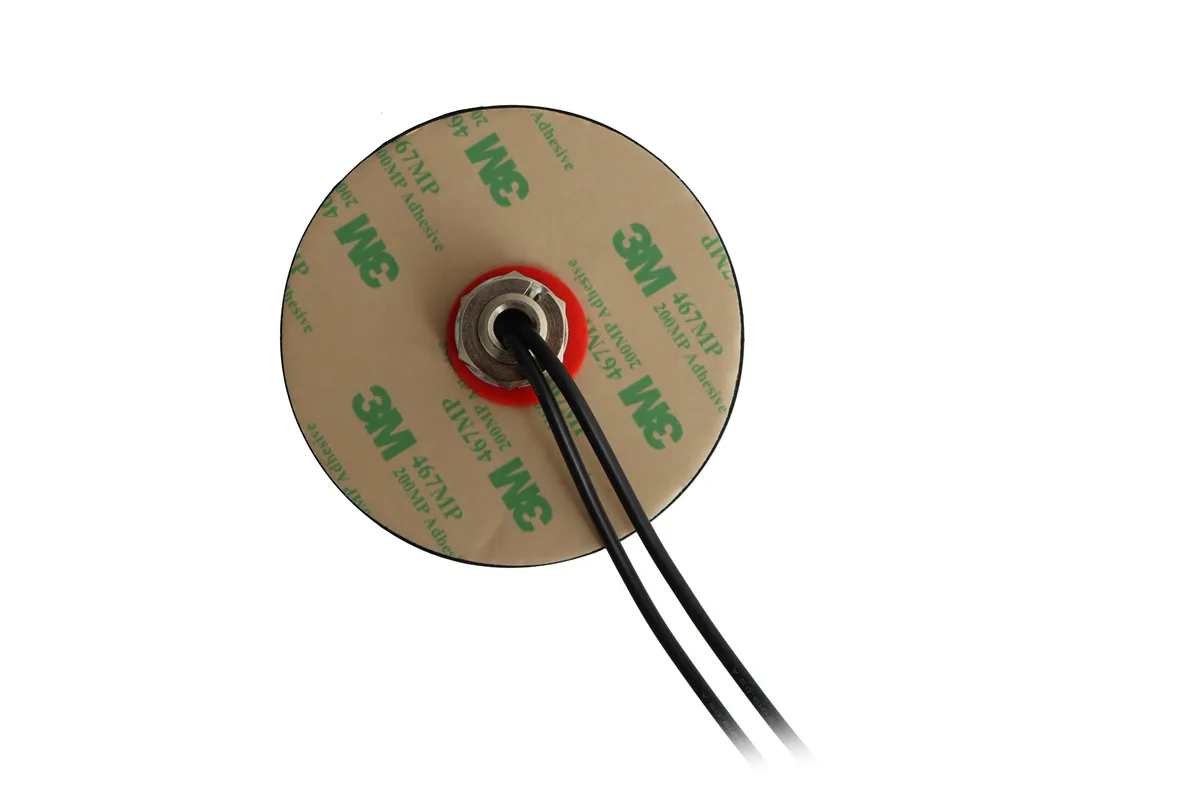

- Screw-mount installation secures the antenna on vehicle roofs or equipment panels
- IP67-rated housing protects against dust and water ingress in outdoor use
- Dual-lead design delivers LTE via SMA male and Wi-Fi via RP-SMA connectors
- Wide frequency coverage spans 698–2690 MHz for cellular and 2400–5825 MHz for Wi-Fi
- 3 dBi gain improves signal reception for GSM, 3G, 4G and wireless networks
Dual-Band LTE and Wi-Fi Antenna
The Maswell combination antenna covers GSM, 3G and 4G cellular bands from 698 to 960 MHz and 1710 to 2690 MHz while adding 2.4 GHz and 5 GHz Wi-Fi in a single housing. It is built for installers who need one mounting point to serve both a cellular router and a Wi-Fi access point on vehicles, kiosks or remote monitoring gear.
IP65-66 Screw Mount with Five-Metre Leads

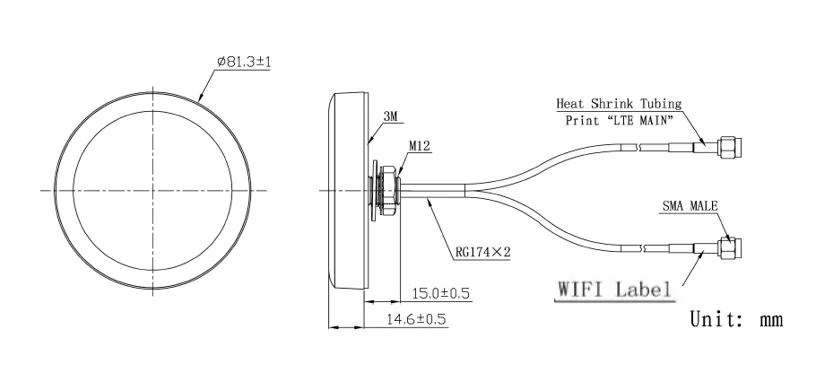

The black ABS radome carries an IP65 to IP66 rating at the base and is secured by a screw mount that resists vibration from 10 to 55 Hz at 1.5 mm amplitude. Two RG174 cables run five metres each, terminated with an SMA male plug for the LTE element and an RP-SMA plug for the Wi-Fi element, giving flexible routing through roof panels or equipment enclosures.
Upgrade from Single-Band Whip Antennas
Replacing separate whip antennas with this dual-element unit reduces roof penetrations and cable count while adding 5 GHz Wi-Fi capability that older single-band whips lack. The jump is worth it when a deployment needs concurrent cellular and dual-band Wi-Fi links but has space for only one mounting hole.
Highlights
- Screw-mount installation secures the antenna on vehicle roofs or equipment panels
- IP67-rated housing protects against dust and water ingress in outdoor use
- Dual-lead design delivers LTE via SMA male and Wi-Fi via RP-SMA connectors
- Wide frequency coverage spans 698–2690 MHz for cellular and 2400–5825 MHz for Wi-Fi
- 3 dBi gain improves signal reception for GSM, 3G, 4G and wireless networks
Specifications
| Type | Antenna |
|---|---|
| Color | Black |
Questions about this item
What frequencies does the LTE portion of this antenna cover?
The LTE element covers 698 to 960 MHz and 1710 to 2690 MHz, matching GSM, 3G and 4G bands.
What hole size and surface does the screw mount need?
The antenna uses a screw mount on a flat surface; the cable is 5 metres of RG174 ending in SMA male for LTE and RP-SMA for Wi-Fi.
How do I connect the two leads to my router without crossing them?
Fit the SMA male plug to the router's LTE port and the RP-SMA plug to the Wi-Fi port; the connectors are keyed so they only fit the correct socket.
