Maswell Communication Tech. GSM+LTE MIMO Combination Antenna Screw Mount network antenna
An IP67-rated, screw-mount MIMO antenna with dual SMA leads covering 698–960 MHz and 1710–2690 MHz for 2G, 3G and 4G LTE devices
- ColorBlack
- Dual 4G LTE leads cover 700-2690 MHz for MIMO reception
- 5 dBi main and 2.0 dBi auxiliary gain for stronger signal
- IP67 waterproof rating suits outdoor and industrial sites
- Screw mount on ABS housing installs on kiosks, vehicles, enclosures
- RG174 cables with SMA connectors fit common cellular routers
Screw-mount MIMO antenna for GSM and LTE
This screw-mount antenna combines two leads covering 698~960 MHz and 1710~2690 MHz for both main and auxiliary paths. It targets industrial, commercial and IoT installations such as hotspots, kiosks, vending machines, POS terminals, M2M links, video surveillance, vehicles, SCADA, telemetry, PLCs, RTUs and digital signage. The IP67 rating protects the antenna body against dust and temporary immersion.
Frequency coverage and connector constraints

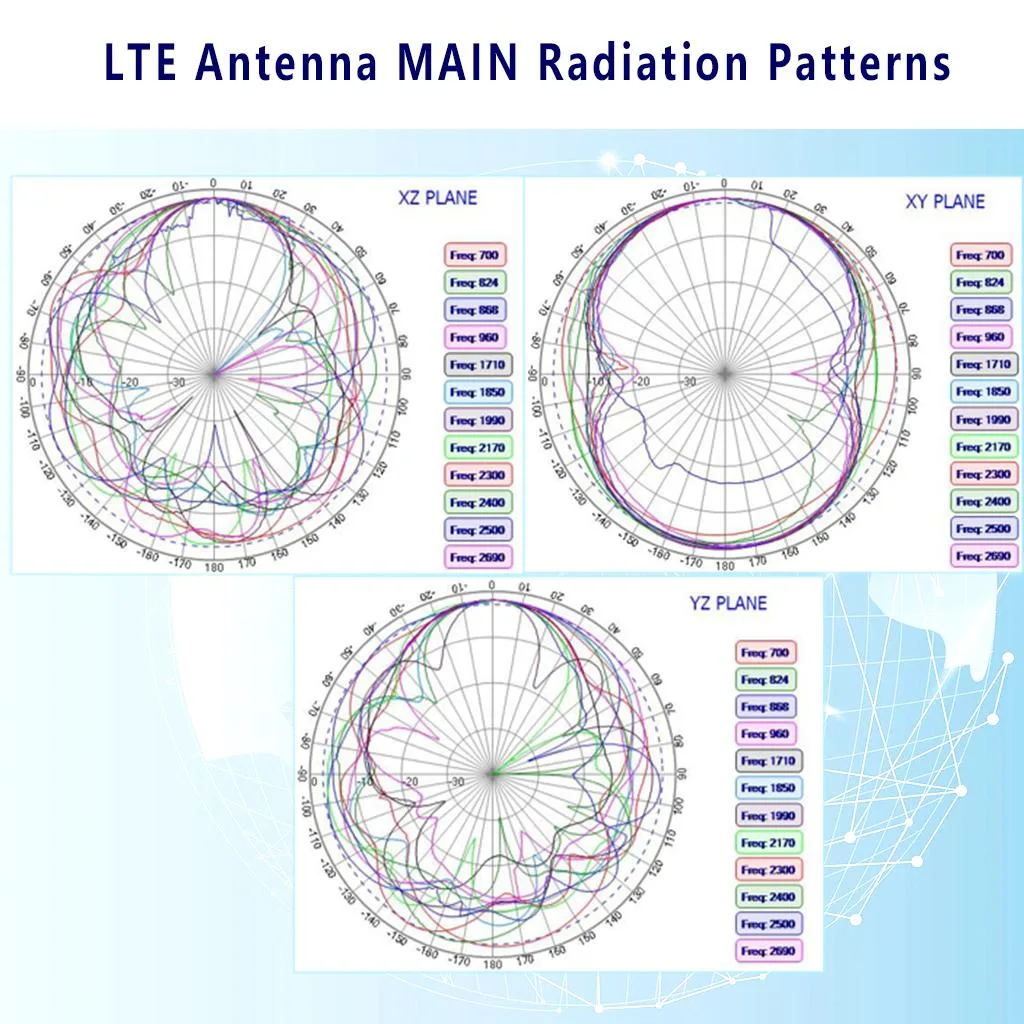

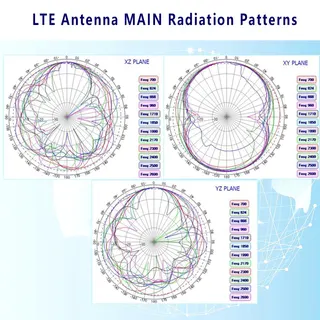

Each lead operates across 698~960 MHz and 1710~2690 MHz with linear polarisation and 50 ohm impedance. The main element provides 2.5 dBi zenith gain while the auxiliary element provides 2.0 dBi. Both leads terminate in SMA connectors on RG174 cable, so the host device must present matching SMA ports and tolerate the cable attenuation inherent to RG174.
Gain and mounting decide fit
The 2.5 dBi main and 2.0 dBi auxiliary gains suit scenarios where a low-profile, omni-directional pattern is acceptable. The screw-mount method requires a panel or enclosure thick enough to accept the thread and a flat sealing surface for the IP67 gasket. Buyers needing higher gain, directional patterns or magnetic mounting should look elsewhere.
Highlights
- Dual 4G LTE leads cover 700-2690 MHz for MIMO reception
- 5 dBi main and 2.0 dBi auxiliary gain for stronger signal
- IP67 waterproof rating suits outdoor and industrial sites
- Screw mount on ABS housing installs on kiosks, vehicles, enclosures
- RG174 cables with SMA connectors fit common cellular routers

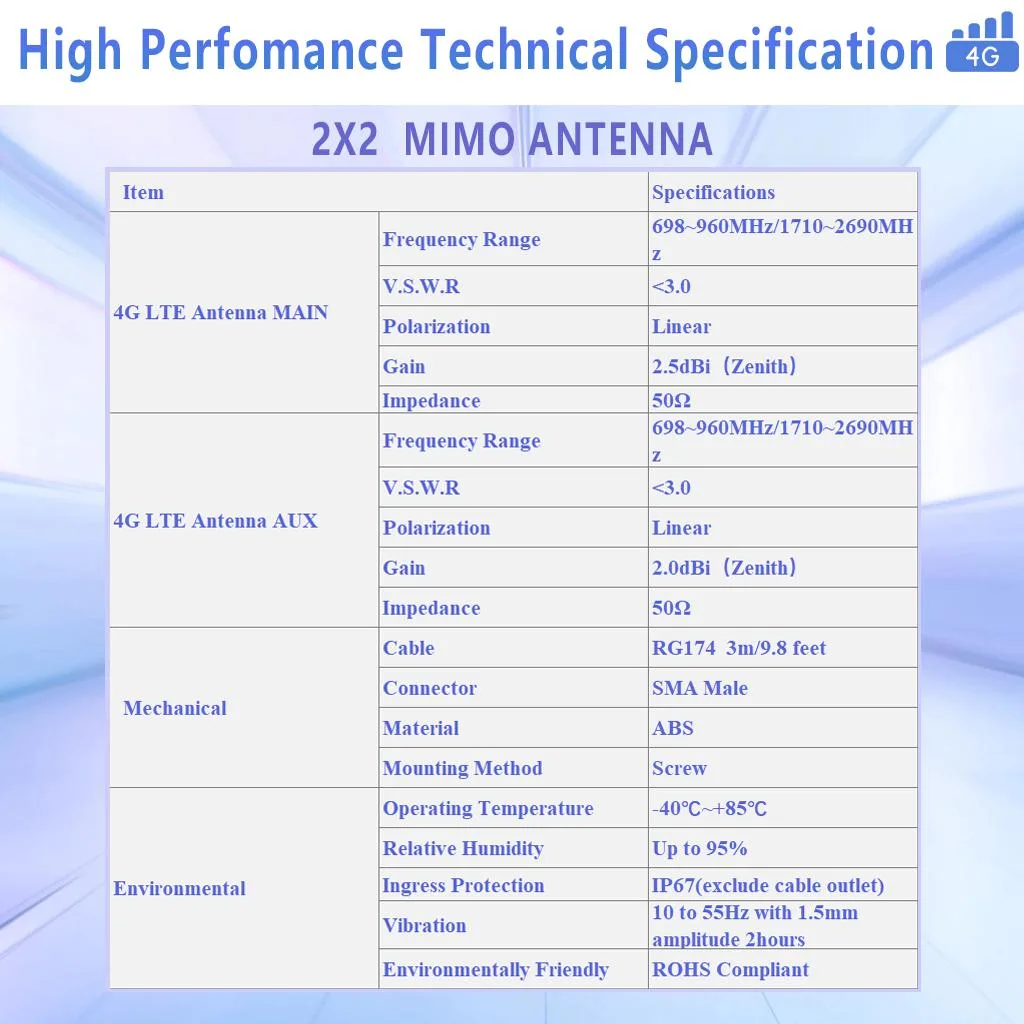

Specifications
| Color | Black |
|---|
Questions about this item
Should I pick the MAIN or AUX lead for the strongest signal?
The MAIN lead offers 2.5 dBi gain and the AUX lead 2.0 dBi, so use MAIN for primary reception.
What does 2.5 dBi gain mean when the antenna is mounted on my router?
It provides modest omnidirectional boost across 698–960 MHz and 1710–2690 MHz, improving cellular link reliability without needing precise aiming.
Will the SMA connectors and RG174 cable work with my 4G LTE modem?
Yes, both leads terminate in SMA plugs with 50 Ω impedance, matching standard LTE modem ports, and the RG174 cable runs up to 2 m with acceptable loss.
