Maswell Communication Tech. GPS+ LTE/4G MIMO Combination Antenna Black
A GPS and LTE/4G MIMO combination antenna covering 698–960 MHz and 1710–2690 MHz with IP67 ingress protection and SMA connectors
- TypeAntenna
- ColorBlack
- Combines GPS and LTE/4G MIMO reception in one unit
- GPS covers 1575.42 MHz with 2 dBic zenith gain
- LTE MAIN and AUX operate across 698–960 MHz and 1710–2690 MHz
- IP67-rated ABS housing withstands -40 °C to +85 °C and 95 % humidity
- SMA connectors on RG174 cable for simple screw-mount installation
GPS+LTE/4G MIMO Combination Antenna
The Maswell Communication Tech antenna combines GPS reception at 1575.42 MHz with LTE and 4G coverage across 698 to 960 MHz and 1710 to 2690 MHz bands in a single black ABS housing. It targets installers who need simultaneous satellite positioning and cellular connectivity for routers, gateways or tracking equipment.
Frequency ranges and environmental limits

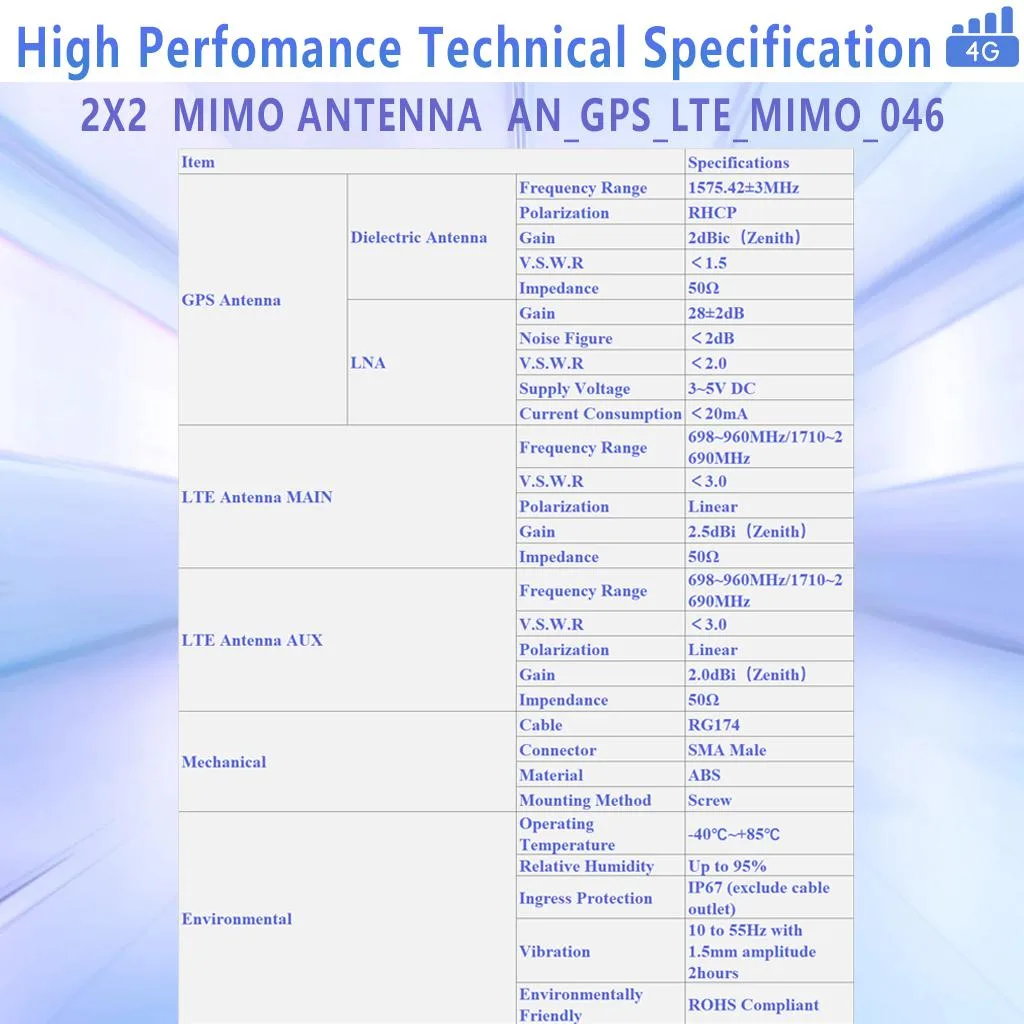

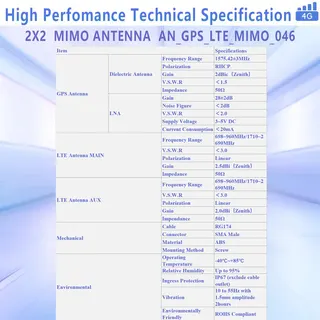

GPS performance centres on 1575.42 MHz with RHCP polarisation and 2 dBic zenith gain while the two LTE ports share identical 698 to 960 MHz and 1710 to 2690 MHz ranges. The unit operates from -40 °C to +85 °C, withstands up to 95 % relative humidity and meets IP67 ingress protection at the antenna body, excluding the cable outlet.
Replaces separate GPS and cellular antennas
Mounting via screws with an RG174 cable and SMA connectors lets this combination antenna replace discrete GPS and LTE/4G antennas where space or cabling simplicity is preferred. The upgrade is worthwhile when a single mounting point must serve both satellite navigation and multi-band cellular MIMO without running two separate feed lines.
Highlights
- Combines GPS and LTE/4G MIMO reception in one unit
- GPS covers 1575.42 MHz with 2 dBic zenith gain
- LTE MAIN and AUX operate across 698–960 MHz and 1710–2690 MHz
- IP67-rated ABS housing withstands -40 °C to +85 °C and 95 % humidity
- SMA connectors on RG174 cable for simple screw-mount installation
Specifications
| Type | Antenna |
|---|---|
| Color | Black |
Questions about this item
Which frequency bands does this antenna cover for GPS and LTE/4G?
GPS operates at 1575.42±3MHz with RHCP polarisation and 2dBic zenith gain; LTE MAIN and AUX both cover 698~960MHz and 1710~2690MHz.
What real-world signal gain can I expect from the GPS element?
The GPS dielectric antenna provides 2dBic gain at zenith, improving satellite lock in open-sky conditions; actual improvement depends on mounting height and sky visibility.
How does the SMA connector and RG174 cable affect installation flexibility?
SMA male connectors on RG174 coax allow direct connection to most LTE routers or GPS receivers; the thin cable routes easily but keeps runs short to limit loss.
