Maswell Communication Tech. GNSS Antenna Square GPS/GLONASS/Beidou/Galileo 33.5mm IP67
Receives GPS, GLONASS, Beidou and Galileo signals with a 33.5 mm square patch, 5 dBic gain, IP67 rating and SMA connector
- ColorBlack
- Multi-constellation GPS GLONASS Beidou Galileo reception
- 5 dBic zenith gain with 28 dB LNA amplification
- IP67 rated for dust and water immersion
- Compact 33.5 mm square with magnet or adhesive mount
- Wide -40 to +85 °C operating temperature range
GNSS Antenna for Multi-Constellation Tracking
The Maswell Communication Tech. GNSS antenna receives signals from GPS, GLONASS, Beidou and Galileo systems. It operates across a frequency range of 1561.098 to 1602MHz with RHCP polarization. The unit is built for outdoor and industrial positioning applications where multi-constellation coverage is required.
Magnetic or Adhesive Mount with IP67 Rating
Installation uses a magnetic base or adhesive pad on the 33.5 by 33.5mm radome. The IP67 ingress protection and operating range of -40 to +85 degrees Celsius support permanent outdoor mounting. The RG174 cable terminates in an SMA connector for direct connection to a compatible receiver module.
28dB LNA Gain with 3 to 5 Volt Supply
The integrated low-noise amplifier provides 28dB gain with a 1.5dB noise figure. It requires a 3 to 5V DC supply delivered through the coaxial line. Buyers whose receiver cannot supply bias voltage or whose design demands a different gain figure should select an alternative antenna.
Highlights
- Multi-constellation GPS GLONASS Beidou Galileo reception
- 5 dBic zenith gain with 28 dB LNA amplification
- IP67 rated for dust and water immersion
- Compact 33.5 mm square with magnet or adhesive mount
- Wide -40 to +85 °C operating temperature range

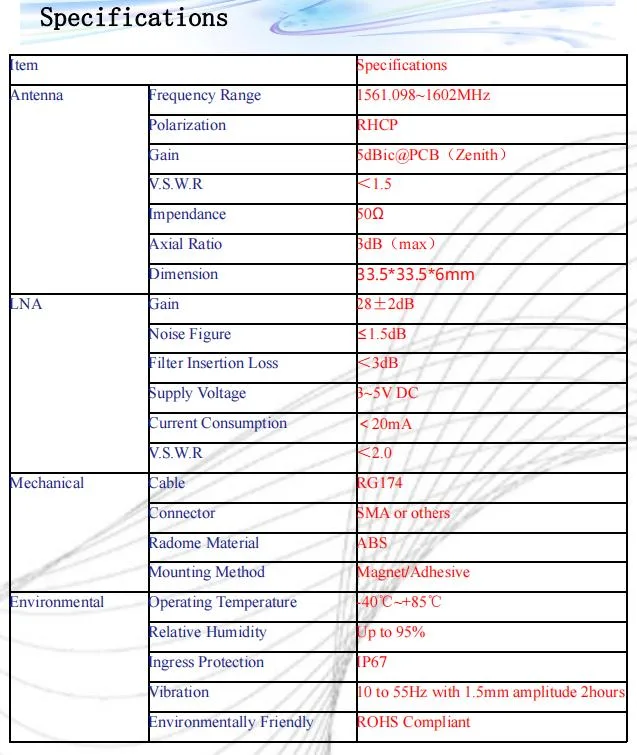

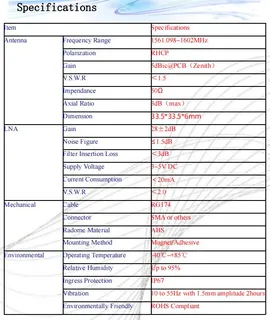

Specifications
| Color | Black |
|---|
Questions about this item
How can I confirm the antenna is receiving signals correctly after installation?
Check your GNSS receiver for a valid position fix and verify the signal-to-noise ratio across GPS, GLONASS, Beidou and Galileo constellations; the 28 dB LNA gain and 1.5 dB noise figure should yield strong carrier-to-noise readings.
What comes in the box and what must I source separately?
The antenna unit with integrated RG174 cable and SMA connector is supplied; you will need a compatible GNSS receiver with SMA input and a 3–5 V DC power source for the LNA.
Which mounting method should I choose for a vehicle roof?
The magnetic base provides secure, removable attachment on ferrous metal roofs, while the adhesive option suits permanent installations on non‑magnetic surfaces; both meet the IP67 rating.
