Maswell Communication Tech.
Maswell Communication Tech. Cellular Antenna 700-6000MHz IP67 Screw 3M Adhesive Mount network antenna
Wideband cellular antenna covering 700-6000MHz for 5G, 4G and WiFi6 with IP67 waterproofing and screw or 3M adhesive mounting
- ColorBlack
- Wide 700-6000MHz coverage supports 5G 4G WiFi6 networks
- IP67 rated waterproof and dustproof for outdoor durability
- UV stabilised ASA radome resists long-term sun exposure
- Dual screw and 3M adhesive mounting fits many surfaces
- 5 dBi maximum gain improves signal reception
Cellular antenna for 5G 4G and WiFi6

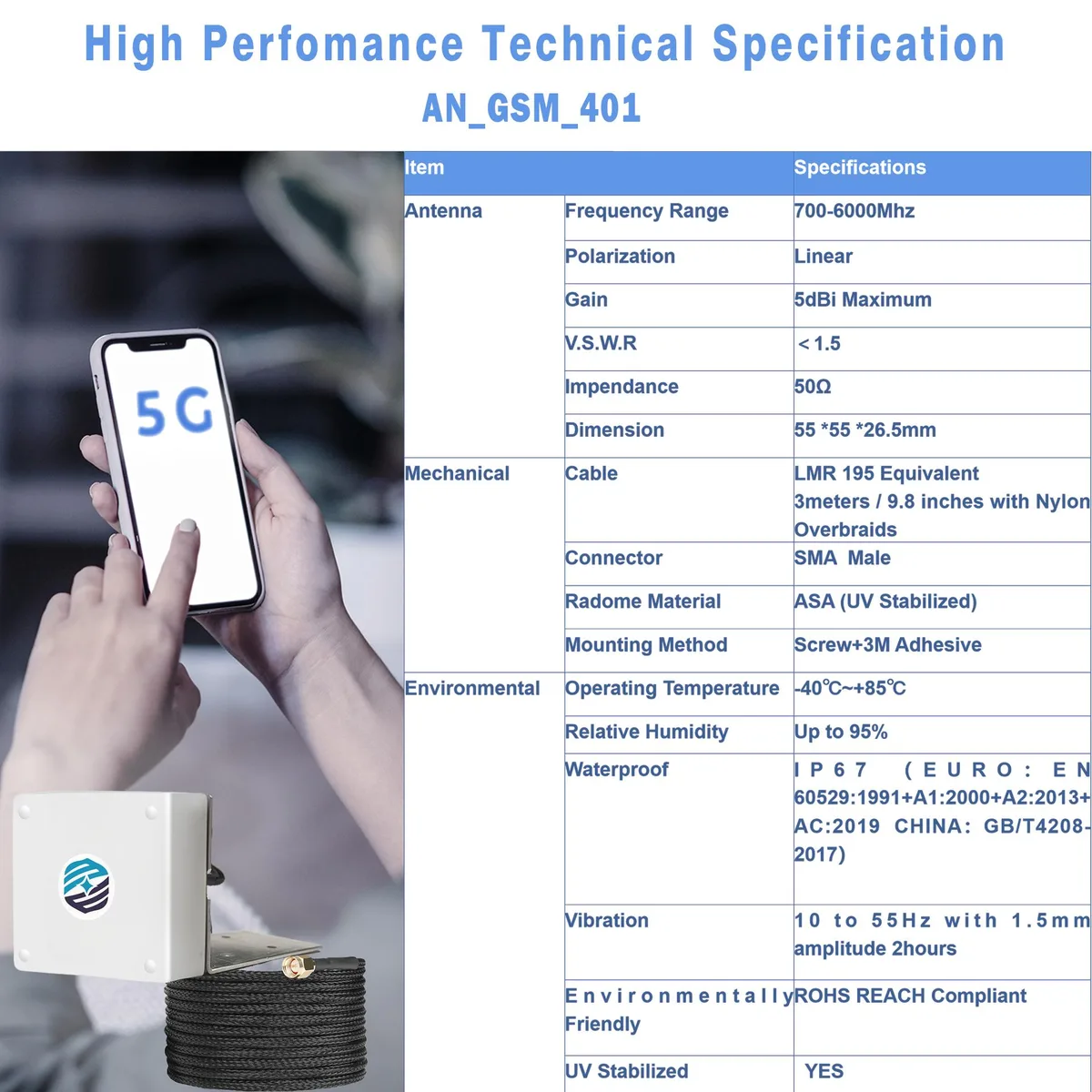

This Maswell Communication Tech antenna covers a frequency range of 700-6000MHz with linear polarisation and 5dBi maximum gain. It uses an SMA connector on a 3 metre RG174 cable. The unit is designed for cellular routers, modems and gateways that need wideband coverage across 5G, 4G and WiFi6 bands.
IP67 rated with UV stabilised ASA radome
The radome meets IP67 to EN 60529 and GB/T4208-2017, resisting dust and temporary immersion. It operates from -40 to +85 Celsius at up to 95 percent humidity. The ASA material is UV stabilised for outdoor exposure and the product is ROHS compliant. Vibration testing runs at 10 to 55Hz with 1.5 mm amplitude for two hours.
Screw and 3M adhesive mounting on 55 by 55 mm
The antenna measures 55 by 55 by 26.5 mm and offers dual mounting: screw fixing or 3M adhesive pad. This suits flat metal or plastic surfaces on enclosures, vehicles or pole brackets. Installers who need magnetic base, N-type connector or a different cable type should choose another model.
Highlights
- Wide 700-6000MHz coverage supports 5G 4G WiFi6 networks
- IP67 rated waterproof and dustproof for outdoor durability
- UV stabilised ASA radome resists long-term sun exposure
- Dual screw and 3M adhesive mounting fits many surfaces
- 5 dBi maximum gain improves signal reception
Specifications
| Color | Black |
|---|
Questions about this item
How do I install the screw and 3M adhesive mount on this antenna, and what step do people often miss?
Clean the mounting surface thoroughly before applying the 3M adhesive; the screw holes provide extra security but the adhesive needs a grease-free surface to bond properly.
What maintenance or replacement will the RG174 cable and SMA connector need over time?
Inspect the RG174 cable for UV damage or kinks periodically; the SMA connector should stay tight but may need reseating if signal drops after vibration or temperature cycling.
At what point does the IP67 rating become the limiting factor during sustained outdoor use?
The IP67 rating protects against temporary immersion and dust, but continuous submersion or high-pressure jets beyond the tested standard will breach the seal first.
