Maswell Communication Tech. AN_5G_095-Magnet network antenna
A 5G, 4G and WiFi6 cellular antenna covering 600-960/1710-6000MHz with 6dBi gain, IP65-rated ABS radome, and magnet or screw mounting
- ColorBlack
- Wide 5G/4G/WiFi6 coverage from 600-960/1710-6000MHz
- 6dBi maximum gain strengthens cellular and WiFi6 signals
- IP65 waterproof ABS radome withstands -40 to +85°C outdoors
- Magnet mount with screw holes enables flexible indoor or outdoor installation
- 5m RG174 cable with SMA connector fits IoT devices and vending machines
Wide-band cellular antenna
The Maswell AN_5G_095-Magnet covers 600-960 and 1710-6000 MHz with up to 6 dBi gain. It supports Cellular 5G, 4G, WiFi6 and LoRa protocols through a single SMA connector. The compact 71 by 48 by 28.3 mm radome fits tight spaces on IoT devices, vending machines or utility boxes. A 1.5 m RG174 cable provides flexible routing to the host radio.
Magnet and screw mounting
The dual mounting method allows quick magnetic placement or permanent screw fixation for outdoor durability. An IP65 rating and ABS radome protect the internals against dust, water jets and UV exposure. Operating temperature spans -40 to +85 °C with up to 95 % relative humidity. Vibration testing at 10 to 55 Hz with 1.5 mm amplitude for two hours confirms mechanical stability.
50 ohm SMA interface

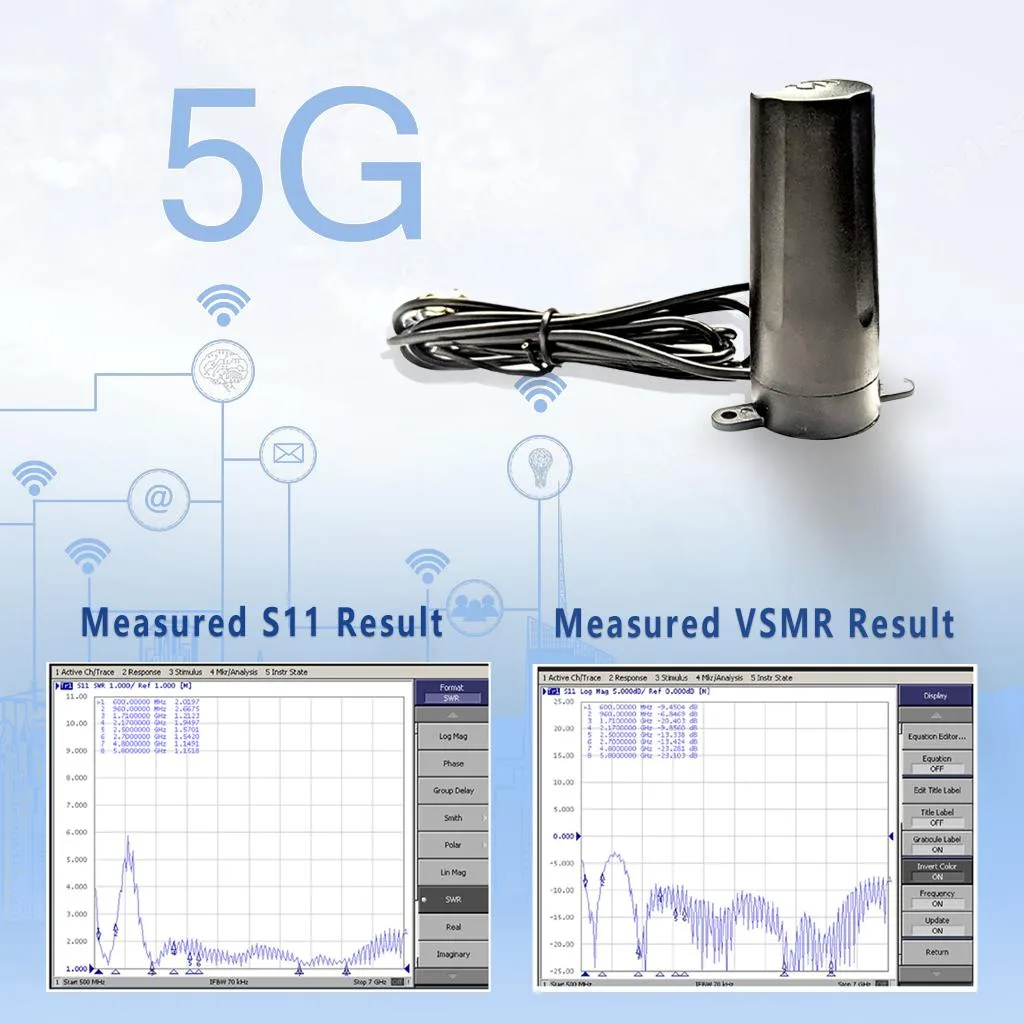

The antenna presents a 50 ohm impedance and linear polarisation matched to standard cellular and WiFi modules. Maximum gain of 6 dBi applies across the full declared frequency range. Buyers needing higher gain for fringe coverage or a different connector type such as N-type or TNC should consider other models.
Highlights
- Wide 5G/4G/WiFi6 coverage from 600-960/1710-6000MHz
- 6dBi maximum gain strengthens cellular and WiFi6 signals
- IP65 waterproof ABS radome withstands -40 to +85°C outdoors
- Magnet mount with screw holes enables flexible indoor or outdoor installation
- 5m RG174 cable with SMA connector fits IoT devices and vending machines

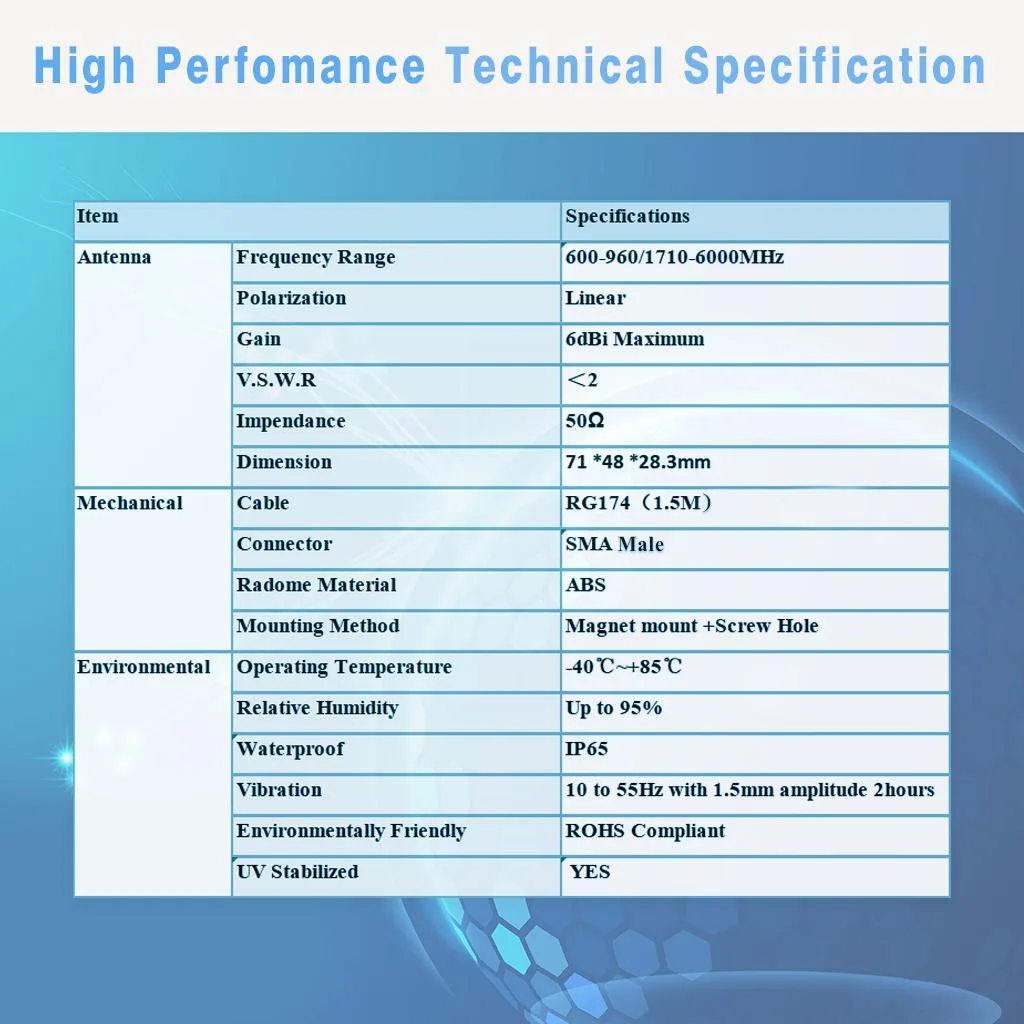

Specifications
| Color | Black |
|---|
Questions about this item
How much heat does the AN_5G_095-Magnet generate when running continuously?
The antenna is passive and has no active components, so it produces no measurable heat during operation.
What connector and cable does the antenna need to work with my router?
It terminates in an SMA male connector on a 1.5 m RG174 cable, so the host device must provide an SMA female port.
Will this antenna work with my older 4G LTE router?
Yes, the 600-960 MHz and 1710-6000 MHz range covers 4G LTE bands, and the SMA connector fits most legacy routers.
