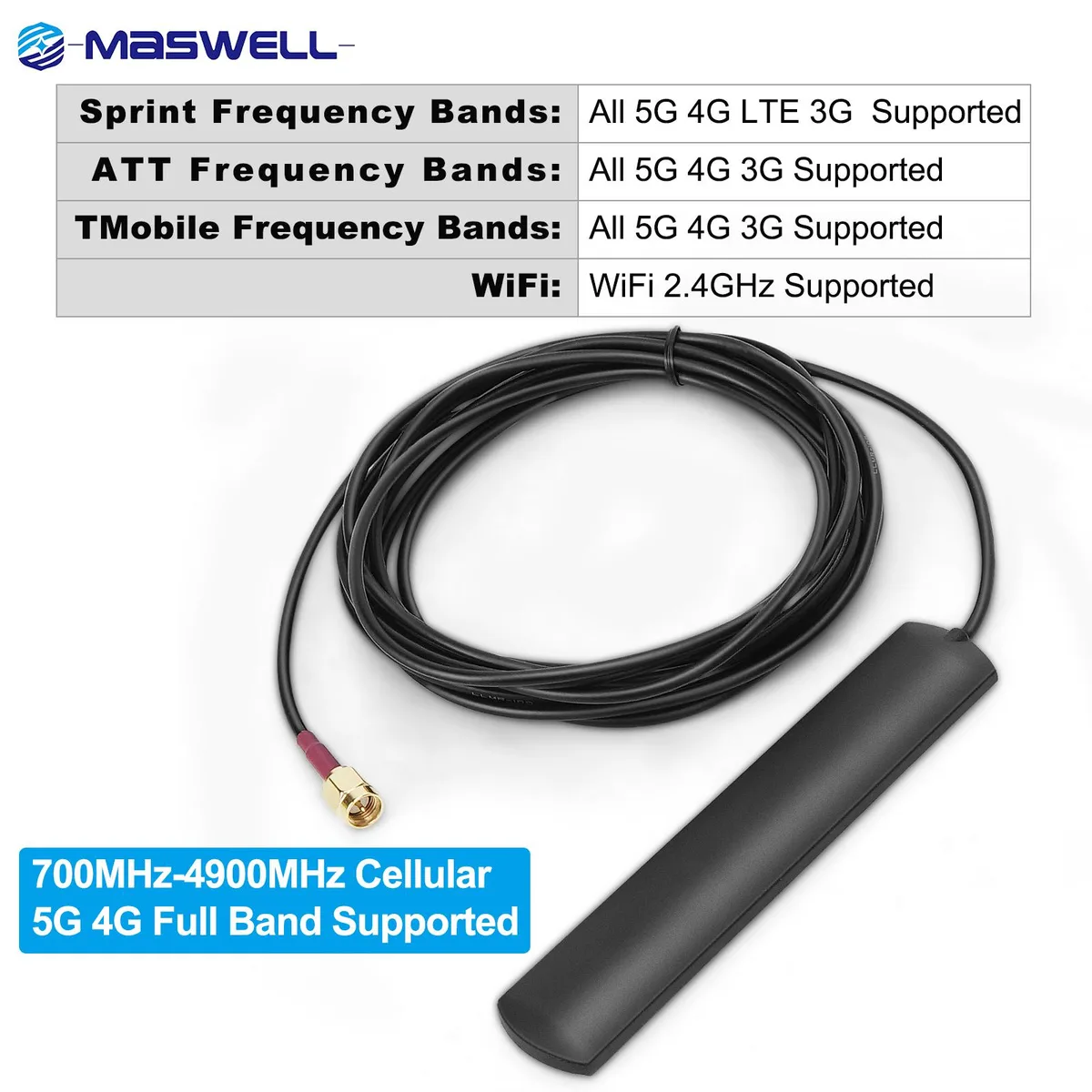

Maswell Communication Tech. 5G NR Adhesive Patch Network Antenna 617~960/1710~2690/3300~3800/4400~4900MHz
Adhesive patch antenna covering 617 to 960, 1710 to 2690, 3300 to 3800 and 4400 to 4900 MHz with 2.0 dBi gain and SMA connector
- ColorBlack
- Wide 5G coverage from 617 to 4900 MHz bands
- 0 dBi zenith gain improves signal reception
- Adhesive ABS radome mounts on flat surfaces
- SMA or FAKRA connector fits common hardware
- Operates from -40 to +85 °C reliably
Wide-Frequency 5G NR Patch Antenna

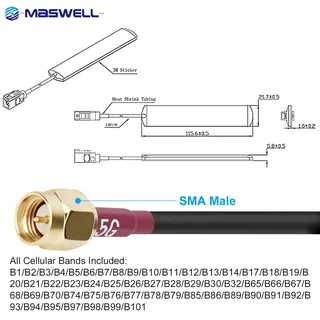

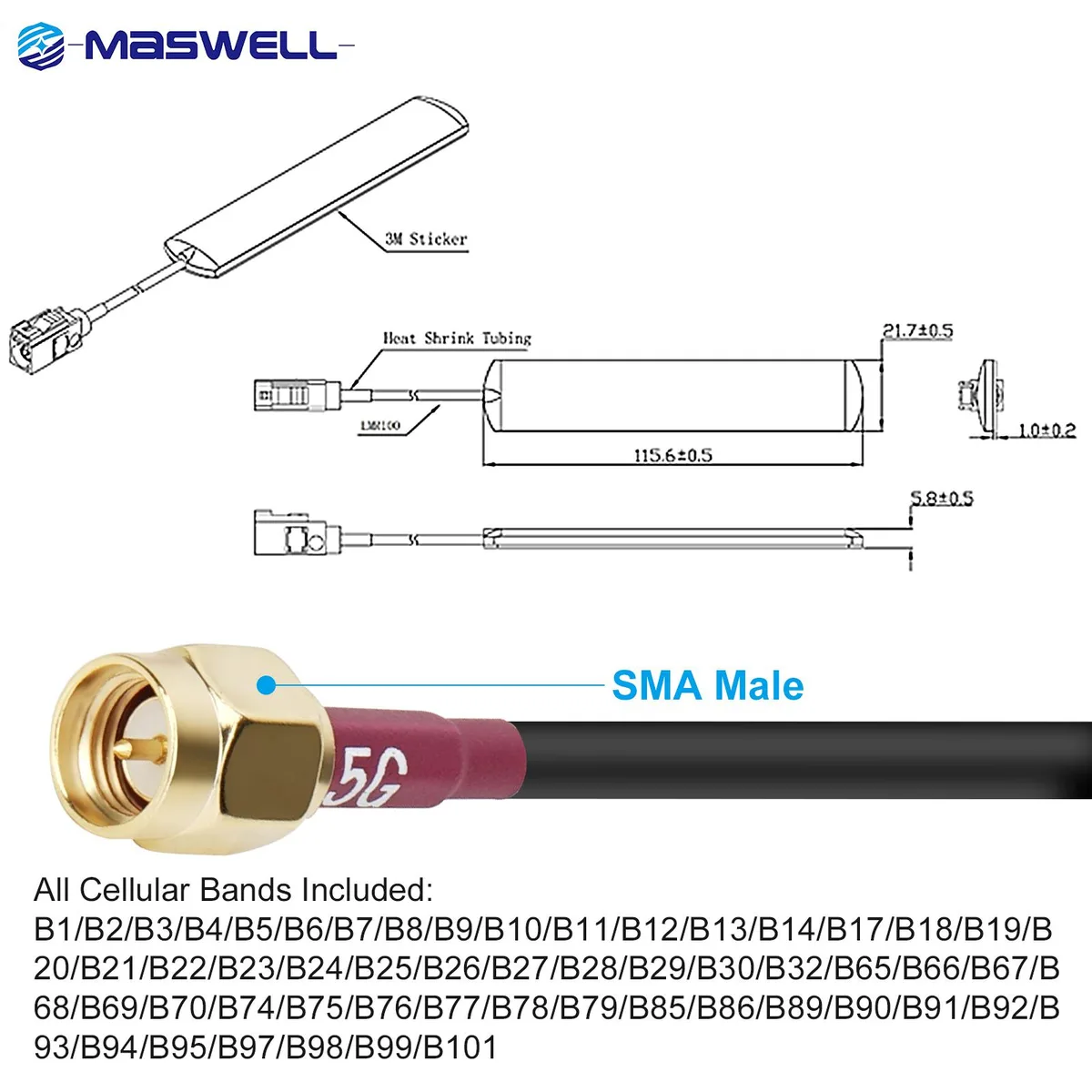

This adhesive patch antenna covers 617~960, 1710~2690, 3300~3800 and 4400~4900 MHz, supporting 3G, 4G, 5G and LTE bands in a single unit. It delivers 2.0 dBi zenith gain with linear polarisation and a 50 ohm impedance match. The black ABS radome measures 104.6 by 18 by 1 mm and meets ROHS compliance.
Adhesive Mount with SMA or FAKRA Connector
The antenna attaches directly to a flat surface using its adhesive backing, removing the need for brackets or drilling. A 100 mm LMR100 cable terminates in either an SMA or FAKRA connector, with customisation accepted by the manufacturer. This compact form factor frees internal space in routers, gateways or IoT enclosures where a bulky whip antenna would not fit.
Suited for Embedded and Mobile Connectivity
Installers integrating cellular or multi-band Wi-Fi into compact devices will benefit from the wide frequency span and simple stick-on installation. Builders needing higher gain, directional patterns or outdoor-rated mast mounting should look at alternative antenna types. The operating range of -40 to +85 °C and vibration tolerance of 10 to 55 Hz at 1.5 mm amplitude suit vehicular and industrial environments.
Highlights
- Wide 5G coverage from 617 to 4900 MHz bands
- 0 dBi zenith gain improves signal reception
- Adhesive ABS radome mounts on flat surfaces
- SMA or FAKRA connector fits common hardware
- Operates from -40 to +85 °C reliably
Specifications
| Color | Black |
|---|
Questions about this item
How does the 2.0 dBi zenith gain limit sustained-range performance?
The 2.0 dBi zenith gain provides modest signal improvement; it is a fixed hardware figure that cannot be increased by the antenna itself.
Does the LMR100 cable or SMA connector generate heat during continuous operation?
The antenna is passive and produces no heat; the SMA connector and LMR100 cable remain at ambient temperature during all-day use.
What connector must the router or modem already have for this SMA-terminated antenna to work?
Your router or modem needs a female SMA port to mate with the antenna's SMA connector.
