Maswell Communication Tech. 5G Combination Antenna 4X4 MIMO GNSS L Bracket Mount network antenna
Combines four 5G/4G MIMO ports and a GNSS receiver in a single IP67 housing with L-bracket mount
- ColorBlack
- 4X4 MIMO boosts throughput across 600MHz–8.0GHz bands
- Integrated GNSS covers GPS, GLONASS, Beidou, Galileo
- IP67 rating survives dust and water immersion outdoors
- LMR195 cables with SMA male connectors simplify installation
- Reinforced plastic and copper construction handles -40°C to +85°C operation
5G Combination Antenna with GNSS
This antenna combines four 5G MIMO elements and a dedicated GNSS receiver in a single housing. It covers cellular bands from 600 MHz to 8.0 GHz plus satellite navigation frequencies. The unit is built for industrial, commercial and IoT installations that need reliable multi-band reception.
Frequency limits and connector types

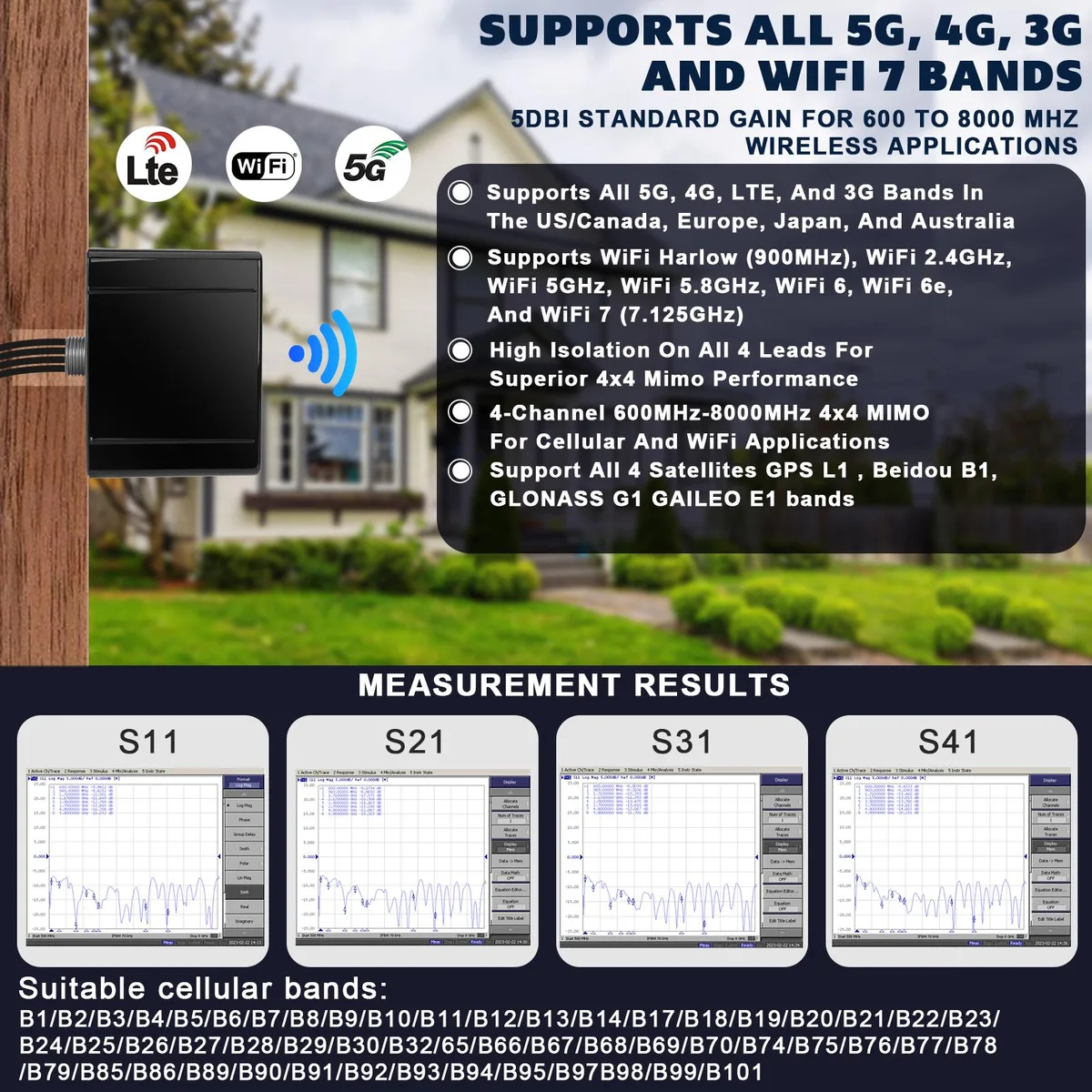

The four MIMO ports and the GNSS port each terminate in an SMA male connector on one metre of LMR195 cable. Operating range spans 600 MHz to 8.0 GHz for cellular and 1561.098 MHz to 1602 MHz for GNSS with RHCP polarisation. The assembly is rated IP67 and operates from -40 to +85 degrees Celsius.
Mounting and power checks before ordering
The L bracket mount requires a flat surface with clearance for the 122 mm by 122 mm by 91 mm housing. GNSS low-noise amplifier needs a 3 to 5 V DC supply drawing roughly 28 mA. Verify that your router or gateway provides SMA female ports and the correct DC bias for the GNSS line.
Highlights
- 4X4 MIMO boosts throughput across 600MHz–8.0GHz bands
- Integrated GNSS covers GPS, GLONASS, Beidou, Galileo
- IP67 rating survives dust and water immersion outdoors
- LMR195 cables with SMA male connectors simplify installation
- Reinforced plastic and copper construction handles -40°C to +85°C operation
Specifications
| Color | Black |
|---|
Questions about this item
How do I decide between the LMR195 1 metre cable and a custom length?
Choose the 1 metre LMR195 cable for standard installs; order a custom length only when the route to your router or gateway exceeds that distance.
What does the 6.0 dBi gain figure mean once the antenna is mounted on a router?
Each of the four 5G elements delivers up to 6.0 dBi gain with the 20 cm cable, boosting received signal strength across the 600 MHz to 8.0 GHz range.
What does the SMA male connector cap in practice for the 5G MIMO and GNSS ports?
The SMA male connectors terminate each of the four 5G MIMO leads and the single GNSS lead, limiting the interface to devices with matching SMA female ports.
