Maswell Communication Tech. 5G Combination Antenna 2X2 MIMO 5G 2X2 MIMO WiFi 7 L Bracket Mount Version
Combines 2×2 MIMO 5G and 2×2 MIMO WiFi 7 in an IP67-rated L-bracket antenna covering 600 MHz–8.0 GHz and 2100–7200 MHz
- ColorBlack
- 2x2 MIMO cellular covers 600 MHz to 8.0 GHz for strong 5G reception
- 2x2 MIMO WiFi 7 covers 2100 MHz to 7200 MHz for fast wireless links
- Up to 6.0 dBi gain on each cellular element boosts signal strength
- Up to 4 dBi gain on each WiFi element extends wireless range
- IP67 rated housing withstands outdoor and industrial environments
5G and WiFi 7 Combination Antenna

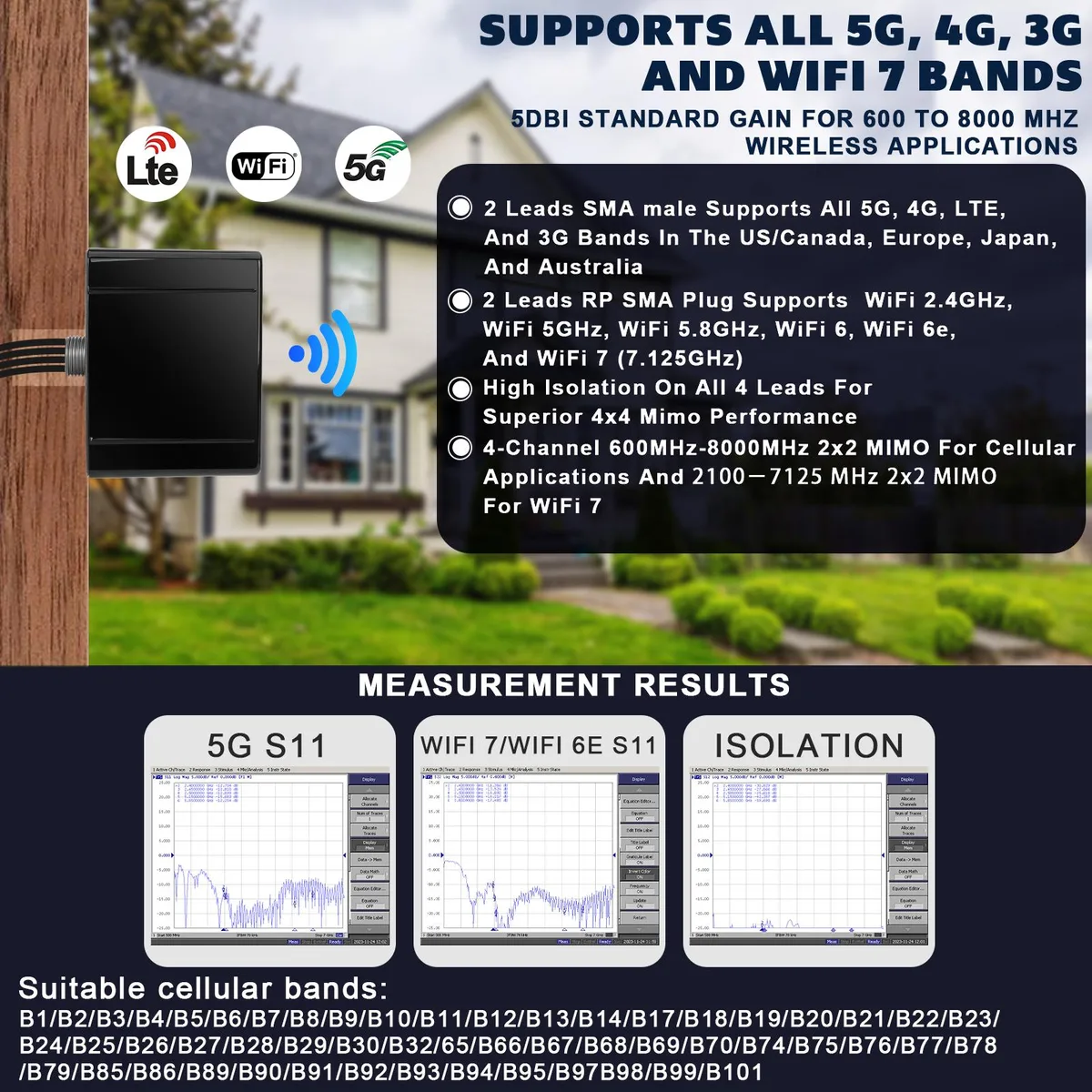

This Maswell combination antenna integrates four elements into a single housing: two 2×2 MIMO cellular antennas covering 600 MHz to 8.0 GHz for 5G, 4G LTE, 3G and WiFi6E, plus two WiFi 7 antennas spanning 2100 MHz to 7200 MHz. It targets installers deploying outdoor routers, industrial gateways or IoT nodes that need simultaneous cellular and high-band WiFi connectivity. The IP67-rated enclosure suits pole, wall or equipment-shed mounting.
L-Bracket Mount and Fixed Cables
The supplied L-bracket enables low-profile mounting on flat surfaces without additional hardware. Each antenna element terminates in a 20 cm cable with a standard connector, so the installer must plan cable routing and connector compatibility at the router or gateway end. No adapters, pigtails or mounting poles are included in the package.
Check Connector Type and Mounting Surface
Verify that your router or gateway accepts the connector gender and type fitted to the 20 cm leads before ordering. Confirm the mounting surface can accept the L-bracket screws and that the 20 cm cable reach is sufficient for your equipment layout. The antenna operates from 600 MHz to 8.0 GHz for cellular and 2100 MHz to 7200 MHz for WiFi 7; ensure your radio modules support these bands.
Highlights
- 2x2 MIMO cellular covers 600 MHz to 8.0 GHz for strong 5G reception
- 2x2 MIMO WiFi 7 covers 2100 MHz to 7200 MHz for fast wireless links
- Up to 6.0 dBi gain on each cellular element boosts signal strength
- Up to 4 dBi gain on each WiFi element extends wireless range
- IP67 rated housing withstands outdoor and industrial environments
Specifications
| Color | Black |
|---|
Questions about this item
How often will the IP67 seal on this Maswell 5G combination antenna need checking after outdoor installation?
The antenna is rated IP67 for waterproof and dust-tight performance, built from reinforced plastic with copper-wire elements for long-term outdoor exposure.
What is the first limit reached when the four MIMO elements run at full power continuously?
Each element handles up to 6.0 dBi gain on the 600 MHz–8.0 GHz bands and 4 dBi on 2100–7200 MHz with a VSWR average of 3.0 and efficiency above 50 %.
How much heat does the L-bracket mount version generate during all-day operation?
Passive antenna elements produce no measurable heat; the 20 cm cables and 50 Ω impedance design ensure stable performance without active cooling.
