Maswell Communication Tech.
Maswell Communication Tech. 5G Combination Antenna 2x2 MIMO 5G 2x2 MIMO WiFi 7
Combines 2×2 MIMO 5G and 2×2 MIMO WiFi 7 in a single IP67 screw-mount housing with four integrated elements covering 600 MHz–8.0 GHz and 2100–7200 MHz
- ColorBlack
- 2×2 MIMO cellular for 5G/4G/3G/LTE coverage from 600 MHz to 8.0 GHz
- 2×2 MIMO WiFi 7 and WiFi6E on 2100–7200 MHz for high-speed wireless links
- IP67 waterproof rating protects against dust and immersion in outdoor or industrial sites
- Up to 6.0 dBi gain on each cellular element and 4 dBi on each WiFi element
- Screw-mount reinforced plastic and copper construction for durable low-profile installation

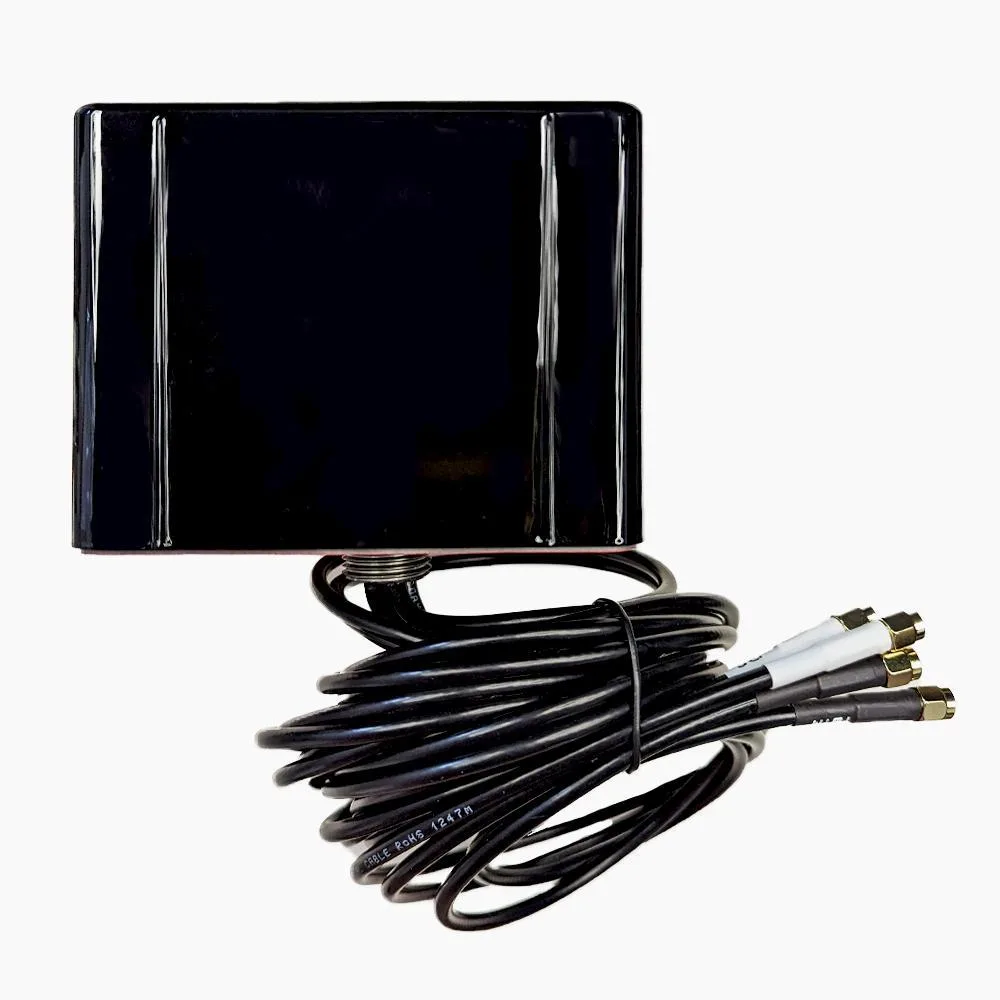

5G and WiFi 7 MIMO Antenna
This combination antenna supports 2x2 MIMO for both 5G cellular and WiFi 7 bands. It covers cellular frequencies from 600 MHz to 8.0 GHz and WiFi bands from 2100 MHz to 7200 MHz. The unit is designed for industrial, commercial and IoT installations that need simultaneous cellular and high-band WiFi reception.
IP67 screw-mount build
The housing uses reinforced plastic with copper-wire elements and carries an IP67 waterproof rating for outdoor or harsh-environment deployment. Four integrated leads each have a 20 cm cable length terminated for screw mounting. Linear polarisation and 50 ohm impedance match typical router and modem antenna ports.
Check connector and frequency fit
Verify that your router or gateway accepts four separate antenna ports with the correct connector gender for screw-on leads. Confirm the device operates within the 600 MHz to 8.0 GHz cellular range and the 2100 MHz to 7200 MHz WiFi range. Buyers needing longer cable runs or different connector types should look elsewhere.
Highlights
- 2×2 MIMO cellular for 5G/4G/3G/LTE coverage from 600 MHz to 8.0 GHz
- 2×2 MIMO WiFi 7 and WiFi6E on 2100–7200 MHz for high-speed wireless links
- IP67 waterproof rating protects against dust and immersion in outdoor or industrial sites
- Up to 6.0 dBi gain on each cellular element and 4 dBi on each WiFi element
- Screw-mount reinforced plastic and copper construction for durable low-profile installation
Specifications
| Color | Black |
|---|
Questions about this item
What frequency range does the cellular MIMO section cover and what gain does it reach?
The two cellular antennas each cover 600 MHz to 8.0 GHz with up to 6.0 dBi gain at 20 cm cable length.
What mounting style and hole size does the antenna use?
It uses a screw-mount design that fits a standard panel hole; the reinforced plastic housing is rated IP67 for outdoor use.
How are the four cables connected and which connector is used?
Each antenna has a 20 cm cable terminated with a 50 ohm connector; match Antenna 1 and 2 to the cellular ports and Antenna 3 and 4 to the WiFi ports.
