Maswell Communication Tech. 5G/4G/WiFi MIMO Panel Antenna 600-8000MHz TS9
IP67-rated MIMO panel antenna covering 600-8000 MHz with dual TS9 connectors and up to 7.5 dBi gain for 5G, 4G and WiFi routers
- ColorBlack
- Covers 5G, 4G, 3G, GSM and dual-band WiFi from 600 to 8000 MHz

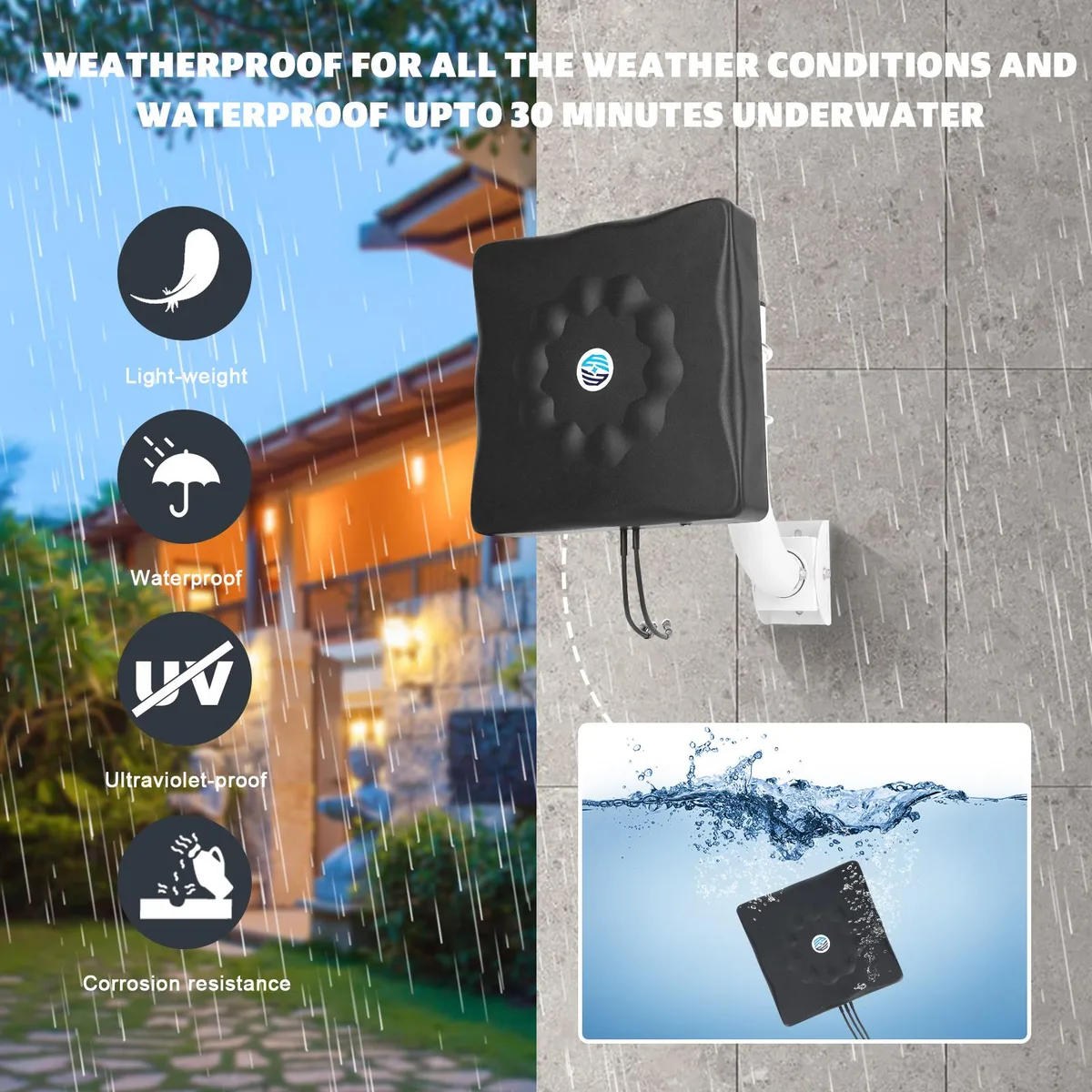

- IP67 waterproof rating confirmed by EN 60529 and GB/T 4208 test reports
- Supports all North American cellular bands including n71, n5, n2, n66, n41, n77, FirstNet and CBRS
- Dual-polarised MIMO design with 6.0 dBi gain per element and 15 dB isolation
- U-bolt or direct screw mounting on a 22 cm × 22 cm × 4.5 cm UV-stabilised panel
600-8000 MHz MIMO Panel Antenna
This directional panel covers 600 MHz to 8 GHz with dual linear polarisation at +45° and -45°. Each element delivers 6.0 dBi gain and 15 dB isolation on a 50 ohm impedance. The housing meets IP67 waterproofing and operates from -40 °C to +85 °C.
Suits fixed wireless and mobile broadband installs
Installers needing a single antenna for 5G, 4G, 3G, GSM and dual-band WiFi will benefit. Buyers who require omnidirectional coverage or an integrated cable should look elsewhere. The SMA connectors demand a short pigtail to reach most router ports.

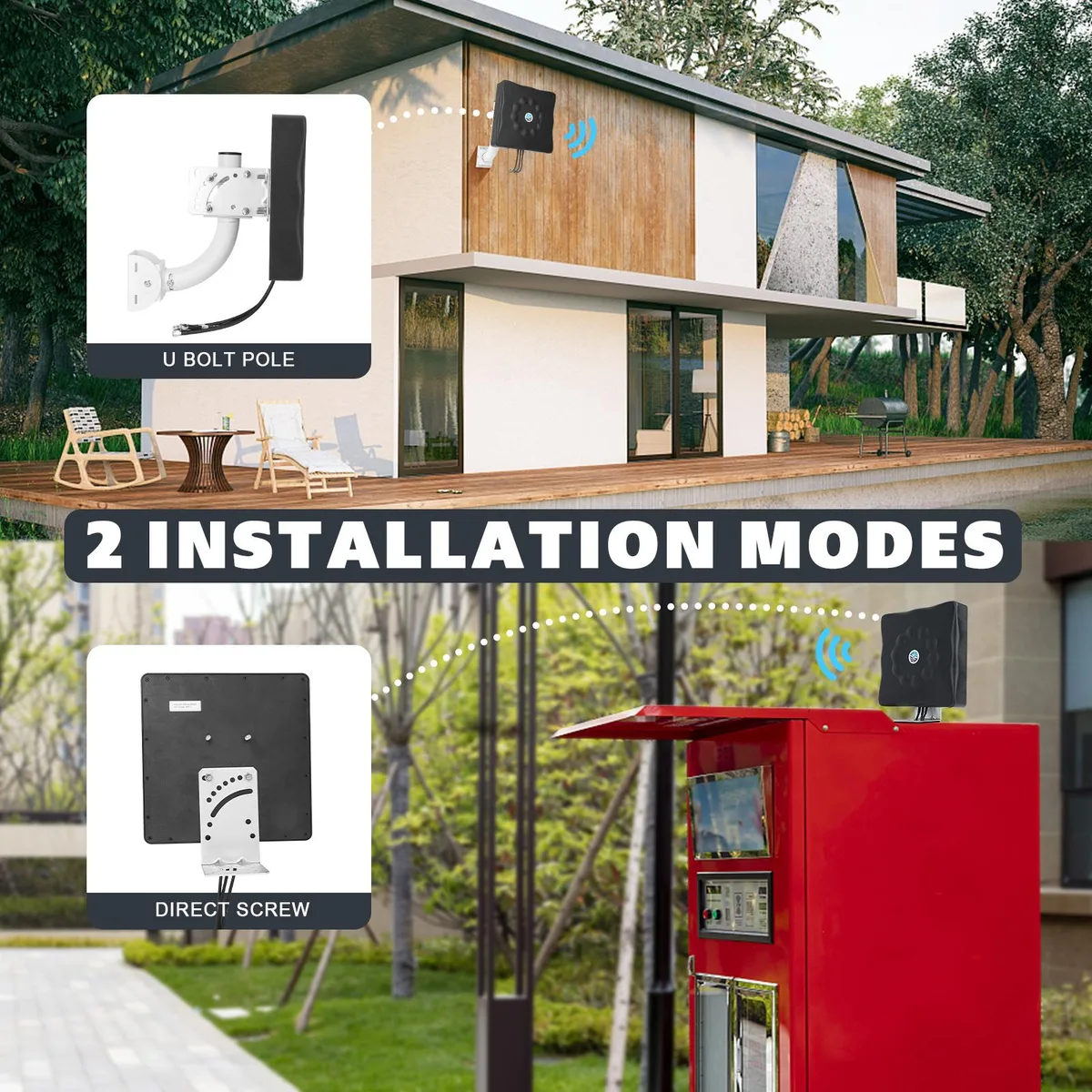

U-bolt or screw mount for pole or wall
The 22 cm square footprint fits standard pole brackets and flat surfaces. Dual mounting options free the installer from sourcing separate hardware. ROHS compliant materials and UV stabilised plastic suit long-term outdoor exposure.
Highlights
- Covers 5G, 4G, 3G, GSM and dual-band WiFi from 600 to 8000 MHz
- IP67 waterproof rating confirmed by EN 60529 and GB/T 4208 test reports
- Supports all North American cellular bands including n71, n5, n2, n66, n41, n77, FirstNet and CBRS
- Dual-polarised MIMO design with 6.0 dBi gain per element and 15 dB isolation
- U-bolt or direct screw mounting on a 22 cm × 22 cm × 4.5 cm UV-stabilised panel
Specifications
| Color | Black |
|---|
Questions about this item
My router only has TS9 ports — will the supplied SMA connectors work without an adapter?
The antenna ships with SMA male connectors, so a TS9-to-SMA pigtail is required for TS9 router ports.
Will the 6.0 dBi gain per element still improve reception if I keep my existing omnidirectional whip antennas mounted nearby?
The panel's ±45° polarisation and 15 dB isolation reduce correlation with nearby whips, letting MIMO gain add to rather than cancel the existing signal.
After aiming the panel, how can I confirm the 600–8000 MHz coverage is actually delivering the 7.5 dBi peak gain my modem reports?
Rotate the panel in 10° steps while watching live RSRP/RSRQ on the modem; the direction showing the highest sustained values confirms peak gain alignment.
