Maswell Communication Tech. 5G/4G MIMO Screw Mount Antenna 700-6000MHz SMA Male White
Dual-lead 2×2 MIMO antenna covering 700–6000 MHz with 4.5 dBi gain, IP66-rated screw mount and 3.0 m RG58 cables
- ColorWhite
- Wide 700-6000MHz coverage supports 5G, 4G, 3G and GSM networks
- Dual 2×2 MIMO leads with 4.5 dBi gain on both main and auxiliary paths
- Omni-directional reception removes the need for precise tower alignment
- IP66-rated ABS radome withstands outdoor wall or roof mounting
- Includes U-bolt kit for secure pole installation from 30 to 50mm diameter
Wideband MIMO Antenna 700-6000 MHz
This dual-lead MIMO antenna covers 700 to 6000 MHz for 5G, 4G LTE, 3G and GSM networks. It provides 4.5 dBi gain on the main port and 4.5 dBic on the auxiliary port with 50 Ohm impedance. The omnidirectional pattern removes the need for precise tower alignment. A 3.0 m RG58 cable with SMA male connectors is included.
Suited For Outdoor Fixed Installations
Builders needing an IP66-rated antenna for pole or wall mounting on 30 to 50 mm diameters will find the screw-mount kit and -40 to +85 °C range appropriate. Buyers who require a magnetic base, adhesive pad or compact indoor whip should look at other form factors. The two separate leads demand a router or modem with dual SMA sockets.
Dual SMA Leads With 3 m RG58 Cable
Each pigtail ends in an SMA male plug, so the host device must present two SMA female ports labelled Main and AUX. Single-port modems or TS9-only interfaces cannot use both leads without adapters not supplied here. Verify your equipment has dual SMA connectors before purchase.
Highlights
- Wide 700-6000MHz coverage supports 5G, 4G, 3G and GSM networks
- Dual 2×2 MIMO leads with 4.5 dBi gain on both main and auxiliary paths
- Omni-directional reception removes the need for precise tower alignment
- IP66-rated ABS radome withstands outdoor wall or roof mounting
- Includes U-bolt kit for secure pole installation from 30 to 50mm diameter

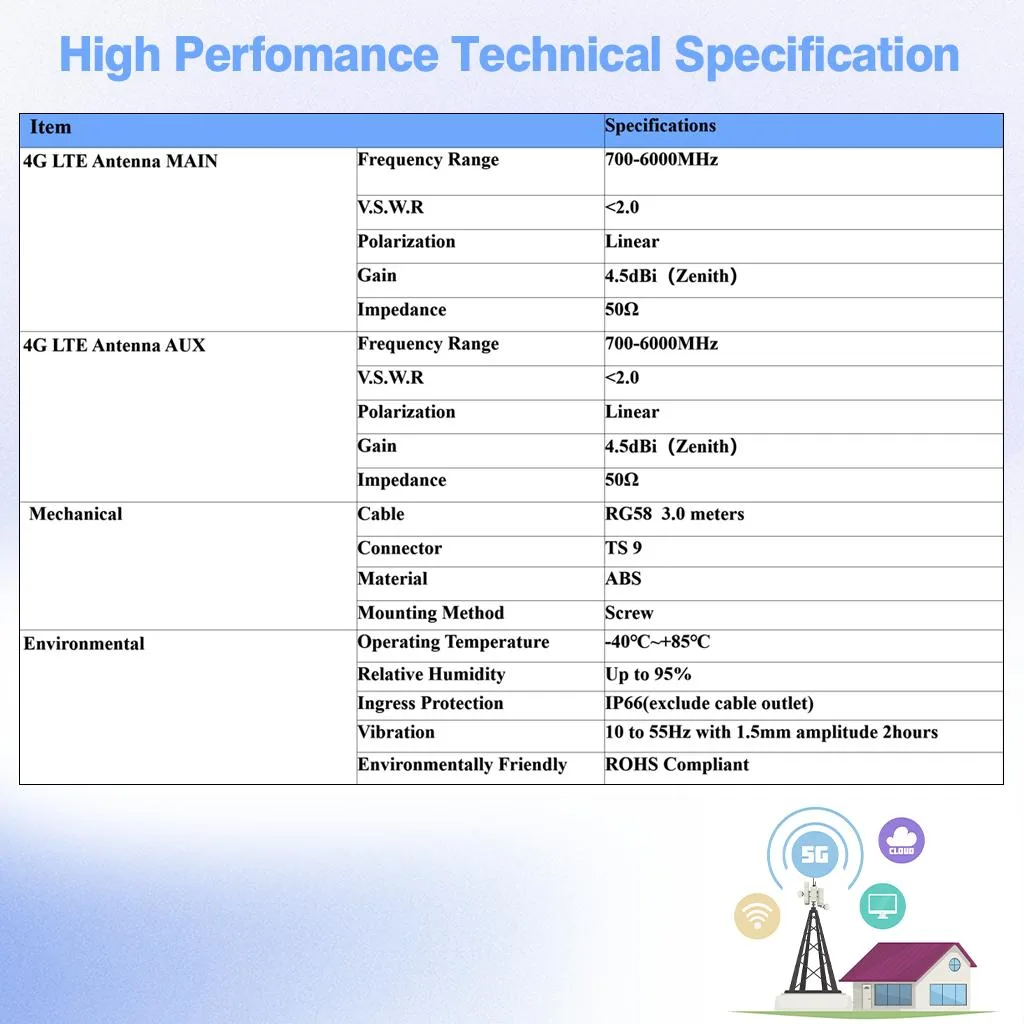

Specifications
| Color | White |
|---|
Questions about this item
What does the 4.5 dBi gain mean for my 5G router?
The 4.5 dBi gain on each of the two MIMO leads boosts the signal your router receives across the 700-6000 MHz range, improving throughput and stability without needing to point the antenna at a tower.
What does the SMA male connector limit me to?
Each lead ends in an SMA male plug, so you can connect directly to routers or modems with SMA female ports; adapters are required for TS9, CRC9 or other connector types.
What mounting hardware is included for a pole?
A U-bolt kit is supplied that clamps the antenna to poles from 30 mm to 50 mm in diameter for roof or wall installation.
