Maswell Communication Tech. 4X4 5G MIMO Network Antenna L Bracket Mount Version
Four-element MIMO antenna covers 700–6000 MHz with up to 3.0 dBi gain per element, IP66-rated for outdoor and industrial use
- ColorBlue
- 4X4 MIMO covers 700–6000 MHz for 5G, 4G, 3G and GSM
- Each of the four elements delivers up to 3.0 dBi gain across the full band
- IP66 rating protects against dust and powerful water jets in outdoor use
- Screw or adhesive L-bracket mount fits kiosks, vehicles, vending machines and signage
- Operating range of -40 °C to +85 °C suits industrial and IoT deployments
4×4 5G MIMO antenna for industrial IoT
This antenna provides four independent elements covering 700 MHz to 6000 MHz for GSM, 3G, 4G and 5G cellular MIMO devices. It is built for industrial, commercial and IoT deployments such as hotspots, kiosks, vending machines, point-of-sale terminals, video surveillance and SCADA systems. The IP66-rated enclosure and reinforced plastic housing suit outdoor and vandal-prone locations. Each element uses an SMA female connector for direct attachment to compatible routers or gateways.
Sustained outdoor operation with linear polarisation

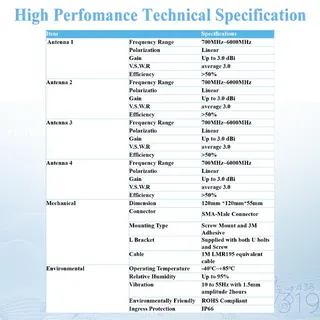

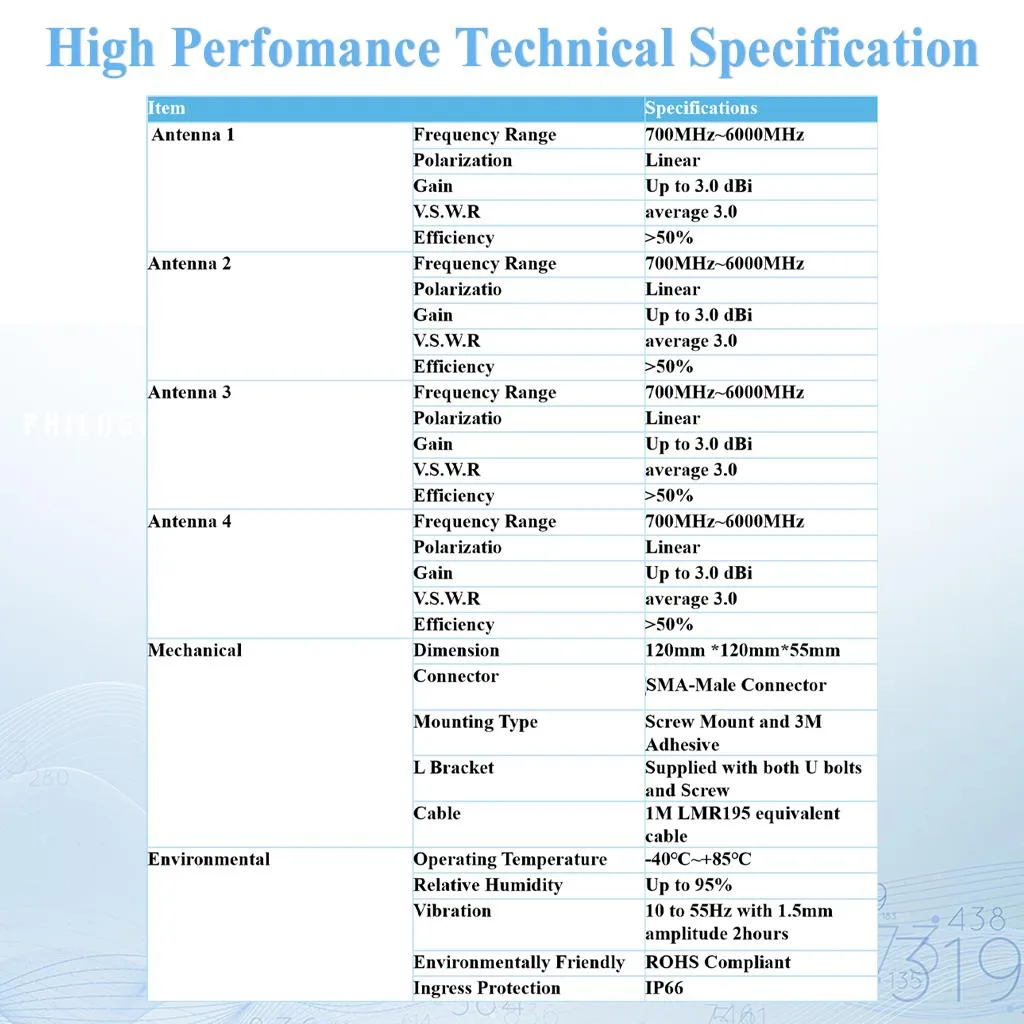

The four elements each deliver up to 3.0 dBi gain with average VSWR of 3.0 and efficiency above 50 percent across the full frequency range. Linear polarisation maintains consistent reception during continuous data sessions from remote sensors, cameras or telemetry units. The assembly operates from minus 40 to plus 85 degrees Celsius and withstands up to 95 percent relative humidity without performance loss. Vibration testing at 10 to 55 Hz with 1.5 mm amplitude for two hours confirms mechanical durability in vehicle or pole-mounted scenarios.
Verify connector count
Your router or gateway must provide four SMA female ports to use all MIMO streams; fewer ports will leave elements unused. The L-bracket kit allows both screw and adhesive mounting on a flat surface measuring at least 120 mm by 120 mm with 55 mm height clearance. Ensure the installation site stays within the minus 40 to plus 85 degree Celsius operating window and that the IP66 seal remains intact after cable routing. ROHS compliance meets standard environmental regulations for commercial deployments.
Highlights
- 4X4 MIMO covers 700–6000 MHz for 5G, 4G, 3G and GSM
- Each of the four elements delivers up to 3.0 dBi gain across the full band
- IP66 rating protects against dust and powerful water jets in outdoor use
- Screw or adhesive L-bracket mount fits kiosks, vehicles, vending machines and signage
- Operating range of -40 °C to +85 °C suits industrial and IoT deployments
Specifications
| Color | Blue |
|---|
Questions about this item
Does the 120 mm × 120 mm × 55 mm antenna generate heat or noise during continuous outdoor operation?
The passive antenna array has no active electronics, so it produces no heat or noise; its IP66 rating and -40 °C to +85 °C operating range confirm reliable all-day outdoor use.
What connector type must my router or modem provide to attach the four SMA female ports on this antenna?
Each of the four antenna elements terminates in an SMA female connector, so your device needs four SMA male plugs for a complete 4×4 MIMO link.
Will the 700 MHz to 6000 MHz frequency range cover the bands used by my existing 3G and 4G equipment?
Yes, the 700 MHz–6000 MHz span includes the common 3G and 4G cellular bands, allowing the antenna to work with legacy gear as well as 5G networks.
