MASTECH MS8265 Digital Multimeter 2.4 inch LCD
A 2.4 inch LCD digital multimeter measuring AC/DC voltage, current, resistance, capacitance, frequency and temperature with backlight and data hold
- Analog/DigitalDigital
- TypeDigital Multimeters
- FeaturesTest Resistance, Capacitance and Frequency, AC/DC Voltage &
- Battery Type9V 6F22 Battery*1 (NOT including)
- 4 inch backlit LCD for clear readings in low light
- Measures AC/DC voltage, current, resistance, capacitance, frequency and temperature
- Manual and auto-ranging with full overload protection
- Data hold and relative value modes for convenient analysis
- Resettable fuse, misconnection alarm and audible over-range warning
Digital multimeter for daily electrical work

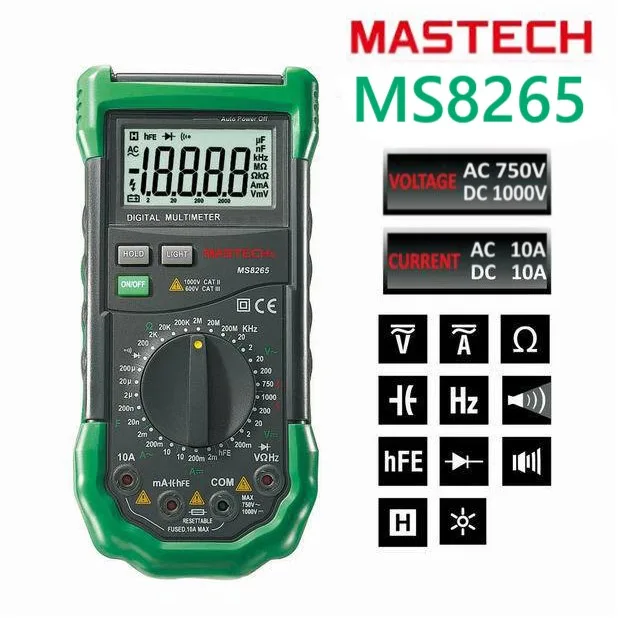

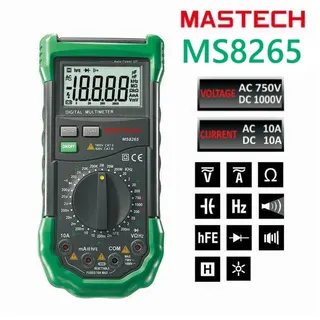

The MASTECH MS8265 is a handheld digital multimeter with a 2.4 inch LCD display. It measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency and temperature. The tool suits professional technicians, industrial maintenance staff, educators and home DIYers who need a single instrument for routine electrical testing.
Auto and manual ranging with overload protection
The meter offers both automatic and manual range selection across all measurement functions. Full overload protection and a built-in resettable fuse guard the instrument against accidental over-range inputs. An audible warning sounds when the measured value exceeds the selected range, and a misconnection alarm alerts the user to incorrect lead placement.
Battery powered with backlight and data hold

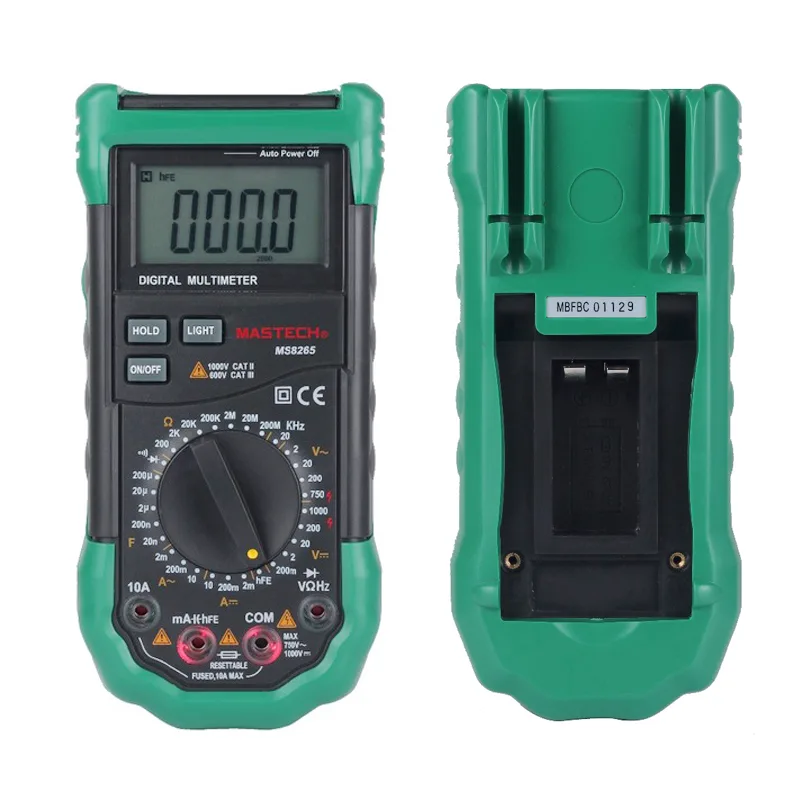

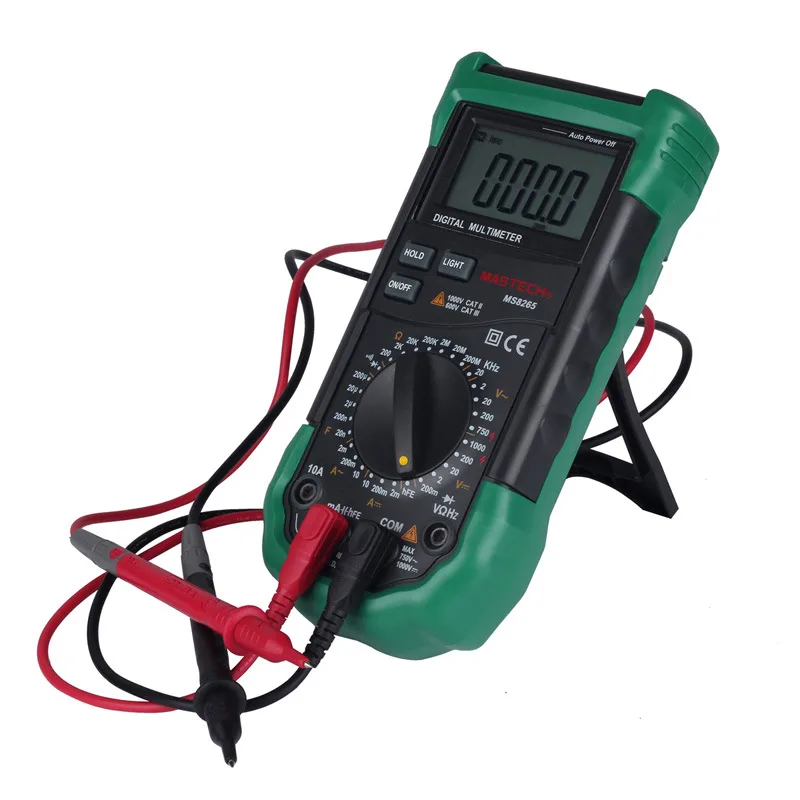

A 9V 6F22 battery (not included) powers the unit, which features auto power-off and low-battery indication to conserve energy. The LCD backlight is activated by a dedicated LIGHT button for use in dim environments. Data hold freezes the reading on screen, while relative value measurement displays the difference from a stored reference in all functions except frequency. A rear stand allows hands-free bench operation.
Highlights
- 4 inch backlit LCD for clear readings in low light
- Measures AC/DC voltage, current, resistance, capacitance, frequency and temperature
- Manual and auto-ranging with full overload protection
- Data hold and relative value modes for convenient analysis
- Resettable fuse, misconnection alarm and audible over-range warning
Specifications
| Brand | Mastech |
|---|---|
| Model | MS8265 |
| Analog/Digital | Digital |
| Type | Digital Multimeters |
| Features | Test Resistance, Capacitance and Frequency, AC/DC Voltage & Current, etc |
| Battery Type | 9V 6F22 Battery*1 (NOT including) |
Questions about this item
What does the 2.4 inch LCD mean for everyday use?
The 2.4 inch LCD gives a clear readout with backlight so you can see measurements in dim conditions, and the large digits make voltage, current or resistance values easy to read at a glance.
Which measurement ranges are covered by the auto and manual selection?
The meter offers both auto and manual ranging across AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature, letting you lock a range or let the instrument choose.
What power source and physical stand does the MS8265 need?
It runs on a single 9 V 6F22 battery (not supplied) and includes a fold-out back-stand for hands-free bench use.
