Yellow handheld digital multimeter with 2.4 inch LCD screen and rotary selector switch

MASTECH

MASTECH MS8264 Digital Multimeter 2.4 inch LCD

SKU CH-Q1G3-GH72K MPN MS8264

A digital multimeter with a 2.4 inch LCD that measures AC/DC voltage, current, resistance, capacitance, frequency and temperature, plus diode and continuity tests, rated CAT II 1000V / CAT III 600V

  • Analog/DigitalDigital
  • TypeDigital Multimeters
  • FeaturesTest Resistance, Capacitance and Frequency, AC/DC Voltage &
  • Battery Type9V 6F22 Battery*1 (NOT including)
  • Large 2.4 inch LCD display for clear readings
  • 2000-count resolution supports precise AC/DC voltage and current measurement
  • CAT II 1000V and CAT III 600V safety rating protects during high-voltage tasks
  • Data hold and backlight simplify use in dim or awkward positions
  • Auto power-off and replaceable fuse extend battery life and durability

Digital multimeter with 2.4 inch LCD

The MASTECH MS8264 is a digital multimeter built around a 2.4 inch LCD that shows 2000 counts. It measures AC and DC voltage up to 750 V and 1000 V, AC and DC current up to 10 A, resistance up to 200 MΩ, capacitance up to 20 µF and frequency up to 20 kHz. A type-K thermocouple input adds temperature measurement. Safety ratings reach CAT II 1000 V and CAT III 600 V.

Technicians and hobbyists needing a single

This meter suits technicians, students and DIYers who want one tool for voltage, current, resistance, capacitance, frequency and temperature checks in office, industrial or home settings. Buyers who require true-RMS response, higher capacitance ranges or bench-grade accuracy should look at other instruments.

CAT II 1000 V and CAT III 600 V safety rating

The safety rating decides whether the MS8264 can be used on a given circuit. CAT II 1000 V and CAT III 600 V cover many building and light-industrial installations. If the work demands a higher category or a higher voltage rating, this multimeter is not the right choice.

Highlights

  • Large 2.4 inch LCD display for clear readings
  • 2000-count resolution supports precise AC/DC voltage and current measurement
  • CAT II 1000V and CAT III 600V safety rating protects during high-voltage tasks
  • Data hold and backlight simplify use in dim or awkward positions
  • Auto power-off and replaceable fuse extend battery life and durability

Specifications

BrandMastech
ModelMS8264
Analog/DigitalDigital
TypeDigital Multimeters
FeaturesTest Resistance, Capacitance and Frequency, AC/DC Voltage & Current, etc
Battery Type9V 6F22 Battery*1 (NOT including)

Questions about this item

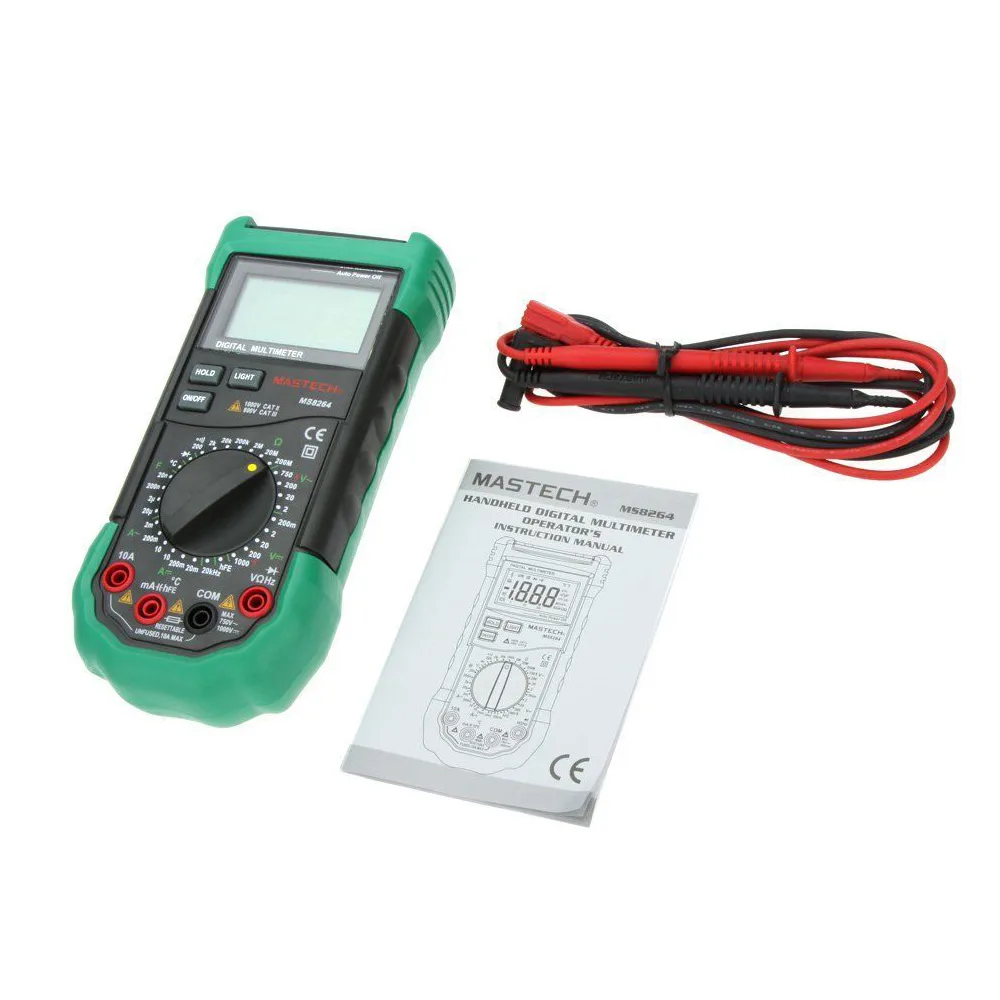

What comes in the box and what do I need to buy separately?

The multimeter ships without a 9V 6F22 battery; you must purchase one separately to power the unit.

Which measurement ranges should I pick for typical mains and low-voltage work?

Use the 750V AC and 1000V DC voltage ranges for mains, the 20V or 200V DC ranges for automotive circuits, and the 10A terminals for currents above 200mA.

How does the CAT II 1000V / CAT III 600V rating apply when I am testing a household socket?

The meter is rated for measurement category III up to 600V, so it is suitable for fixed-installation wiring such as household sockets, but not for higher-energy distribution panels.
