Mini SAS SFF-8087 male to four SATA female breakout cable, braided 3.3 ft length

Manw

Manw SFF-8087 to 4 SATA Breakout Cable 3.3FT

SKU CH-SX09-20AKN

Connects a Mini SAS SFF-8087 host to four SATA drives with a 3.3 ft breakout cable

  • Connects RAID controller to four SATA drives
  • 36-pin Mini SAS SFF-8087 plugs into host
  • 3 ft length fits typical server chassis
  • Braided jacket protects cables during routing

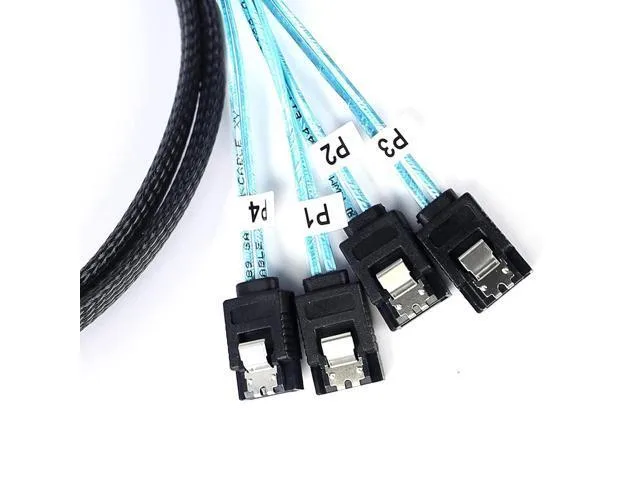

  • Each SATA connector labelled for easy management

SFF-8087 to four SATA breakout cable

This 3.3 ft Manw cable splits a single internal Mini SAS SFF-8087 36-pin male connector into four SATA 7-pin female data ports. It links a SAS HBA or RAID controller to up to four SATA drives or a backplane. The forward breakout design carries up to 6 Gb/s per drive and uses thin braided wiring with labelled ends for tidy cable management.

Connects SAS host to SATA targets only

Suits builders attaching SATA hard drives or SSDs to a SAS controller or HBA with an SFF-8087 port. The cable will not work if the SFF-8087 side is plugged into a backplane or expander; it is strictly a host-to-target breakout. Users needing SATA-to-SAS reverse breakout or direct backplane connection must choose a different cable.

36-pin SFF-8087 male to four SATA 7-pin female

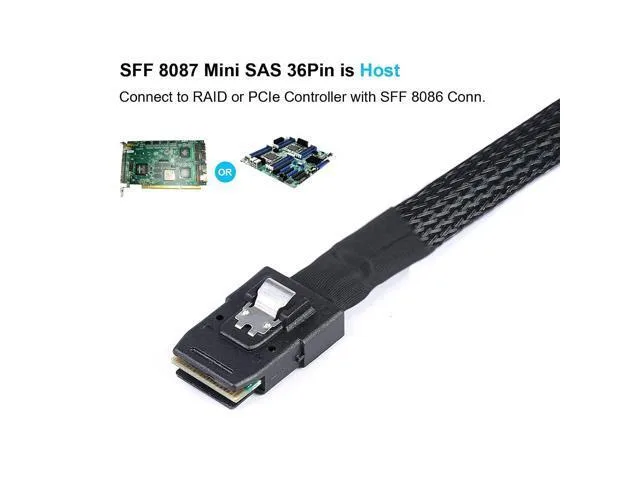

The host connector is a 36-pin Mini SAS SFF-8087 male with a locking latch; the four target connectors are standard SATA 7-pin female data ports. This pin-out and gender combination determines whether the cable matches your controller and drive interfaces.

Highlights

  • Connects RAID controller to four SATA drives
  • 36-pin Mini SAS SFF-8087 plugs into host
  • 3 ft length fits typical server chassis
  • Braided jacket protects cables during routing
  • Each SATA connector labelled for easy management

Specifications

BrandManw

Questions about this item

What SAS controller or motherboard connector is required to use the SFF-8087 end?

The host side uses a 36-pin internal Mini SAS SFF-8087 male connector that plugs into a SAS HBA, RAID controller or motherboard with a matching SFF-8087 port.

Will the four SATA connectors work with older 3 Gb/s SATA drives I already own?

Yes, the breakout cable supports up to 6 Gb/s per drive and is backward compatible with slower SATA drives connected to the four 7-pin female SATA ports.

How can I verify each drive is linked at the correct speed after installation?

Check the controller BIOS or operating system disk utility; each of the four SATA targets should report a negotiated link speed up to 6 Gb/s when the cable is seated and the latch engaged.
