Manw 48V 3A Power Adapter 144W 5.5x2.5mm

What this adapter powers

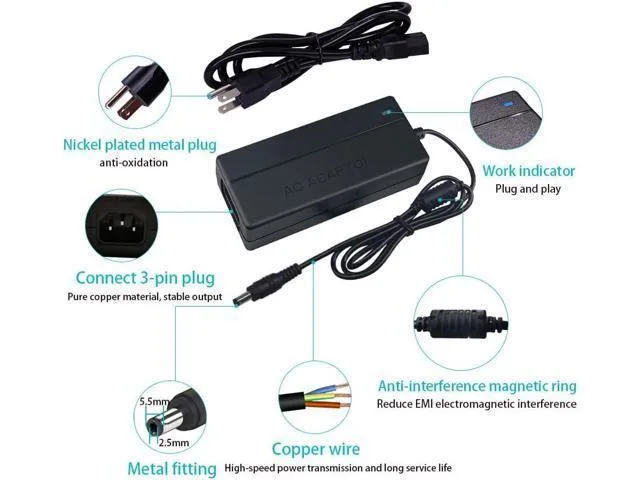

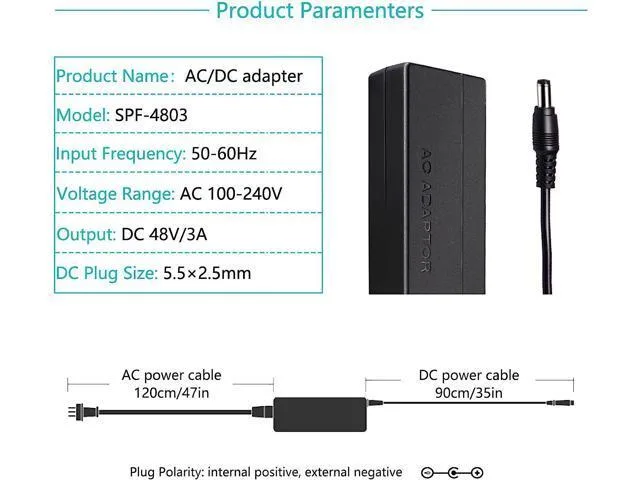

The Manw 48V 3A unit delivers 144W of regulated DC power through a 5.5 x 2.5 mm barrel connector. It accepts 100–240V AC at 50/60 Hz, making it suitable for global use with PoE routers, switches, injectors or CCTV cameras. The 90 cm DC cable provides flexible placement. It is not intended for lithium-battery e-bikes or similar vehicles.

Replacing a failed or undersized supply

Swap this in when an existing 48V brick has failed, runs hot or cannot sustain the full 3A load required by PoE gear or industrial control boards. The four protection circuits — over-voltage, over-current, short-circuit and over-temperature — guard connected equipment better than basic unprotected adapters. The jump is worth it whenever uptime matters more than the lowest purchase price.

Installing and common pitfalls

Plug the included AC cord into mains, connect the DC barrel to the device and power on; no drivers or configuration are needed. Verify polarity and the 5.5 mm / 2.5 mm dimensions match the target jack before ordering — mismatched connectors are the main reason for returns. Keep ventilation space around the case so the over-heat protection never has to engage.
