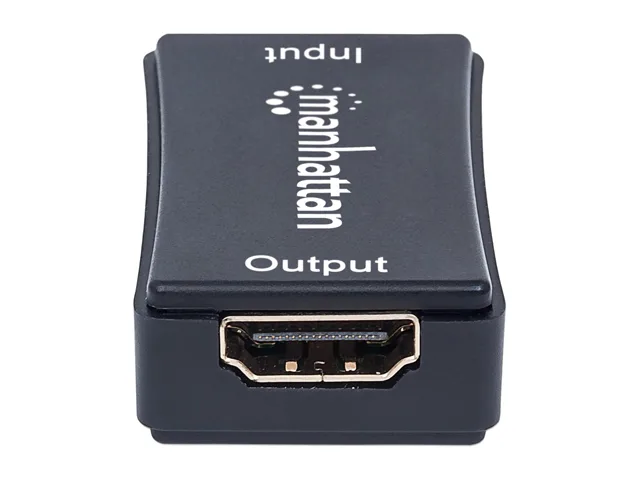

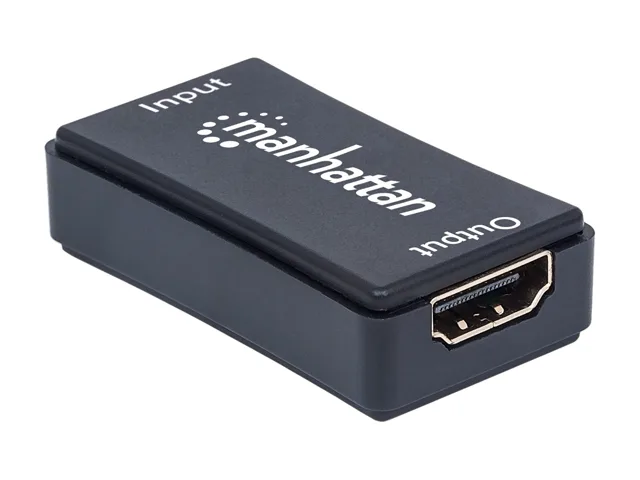

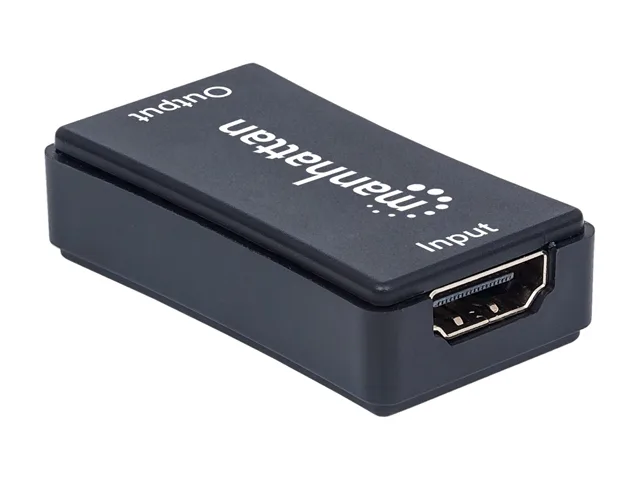

Small black rectangular HDMI repeater with female ports on both ends

MANHATTAN

MANHATTAN 207447 HDMI Repeater 1080p 40 m 131 ft

SKU CH-P27D-B7BN5 MPN 207447

Extends 1080p HDMI signals up to 40 m or 131 ft with HDCP 1.1 compliance and plug-and-play operation

  • TypeHDMI Extender
  • Max Extend Distance131 feet
  • ColorBlack
  • SpecificationsStandards and Certifications: HDCP 1.1 DVI 1.0 CE FCC RoHS2
  • Connector A1 HDMI female (input) - Cable length: 5-25 m (15-80 ft.)
  • Connector B1 HDMI female (output) - Cable length: 1-15 m (3-50 ft.)
  • Extends 1080p HDMI signals up to 40 m / 131 ft
  • Regenerates lossless audio and HD 3-D video with Deep Color 24-bit
  • HDCP 1.1 compliant for protected content transmission
  • Daisy-chains up to 5 repeaters for longer runs
  • Plug-and-play operation with no external power required

Compact HDMI Repeater for 1080p Extension

The MANHATTAN 207447 HDMI Repeater regenerates a 1080p video signal and lossless audio, allowing cable runs up to 40 m or 131 ft. It connects between two HDMI cables using female connectors on each end. The unit supports HDCP 1.1 compliance and Deep Color at 24 bits per pixel. No external power supply is required for operation.

Suits Installers Needing Longer Runs Without Power

This repeater fits setups where a single HDMI cable cannot reach the display and no mains socket is nearby. It works with consoles, Blu-ray players, set-top boxes and satellite receivers. Builders who need 4K resolution, HDR metadata or HDMI 2.0 bandwidth should look at a different class of extender. Users requiring runs beyond 40 m without daisy-chaining will also need an alternative solution.

Maximum Supported Distance Is 40 m or 131 ft

The single specification that decides fit is the 40 m / 131 ft reach for 1080p content. Input cables of 5 to 25 m and output cables of 1 to 15 m are supported within that total. If the installation demands a longer span, additional repeaters can be daisy-chained up to five units. Without that reach requirement, a passive cable may be sufficient.

Highlights

  • Extends 1080p HDMI signals up to 40 m / 131 ft
  • Regenerates lossless audio and HD 3-D video with Deep Color 24-bit
  • HDCP 1.1 compliant for protected content transmission
  • Daisy-chains up to 5 repeaters for longer runs
  • Plug-and-play operation with no external power required

Specifications

BrandMANHATTAN
Model207447
TypeHDMI Extender
Max Extend Distance131 feet
ColorBlack
SpecificationsStandards and Certifications:
HDCP 1.1
DVI 1.0
CE
FCC
RoHS2
Signal Input/Output:
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single-link range: 1920 x 1200, 1080p
Output video: HDMI 1.3, HDCP 1.1, DVI 1.0
Frequency: 1.65 Gbps / 165 MHz
Video Resolutions:
VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Connector A1 HDMI female (input)
- Cable length: 5-25 m (15-80 ft.)
Connector B1 HDMI female (output)
- Cable length: 1-15 m (3-50 ft.)
FeaturesBoosts high-definition signal over HDMI cables for 1080p performance up to 40 m / 131 ft.
Delivers a sharp, clear signal from a Playstation, Xbox, Blu-ray player, set-top box, satellite receiver or other video source
Supports 1080p resolution, as well as HD 3-D video and Deep Color (24-bits/pixel)
Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
Supports video amplifier bandwidth up to 1.65 Gbps (for 1080p)
Daisy-chain up to 5 repeaters for additional distance
Gold-plated contacts
Plug and play requires no installation, configuration o
Dimensions0.60" x 1.00" x 2.00"
Weight0.04 lbs.
Package ContentsHDMI Repeater
Quick Install Guide
Shipping weight0.07 kg
Package size152 × 79 × 2 mm

Questions about this item

What length HDMI cables do I need on the input and output sides of the 207447 repeater?

Use a 5 to 25 m cable on the input side and a 1 to 15 m cable on the output side to achieve the full 40 m reach.

Will the repeater pass 1080p and Deep Color from my older Blu-ray player without extra setup?

Yes, it supports 1080p, HD 3-D and 24-bit Deep Color, is HDCP 1.1 compliant and works plug-and-play with no configuration.

How can I verify the 207447 is regenerating the signal correctly after connecting it?

A stable 1080p picture with no dropouts or sparkles confirms the 1.65 Gbps bandwidth is active and the repeater is functioning.
