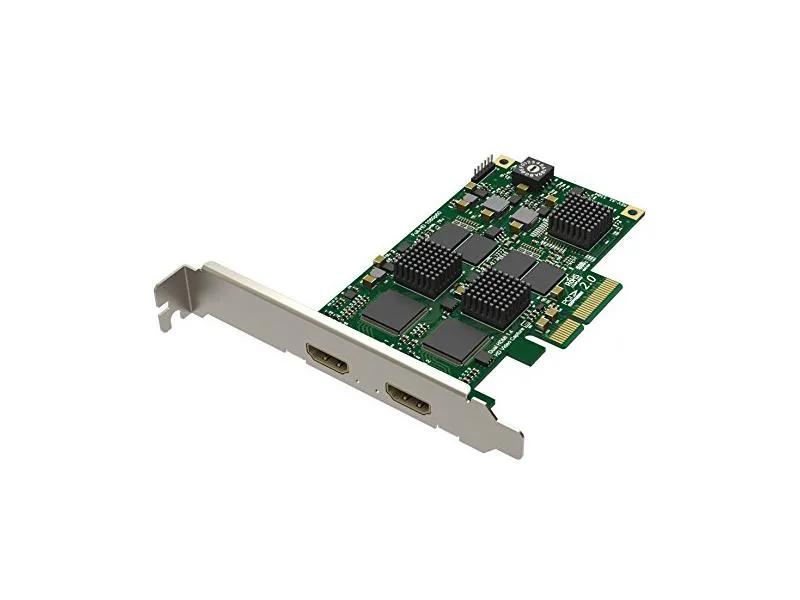

PCIe capture card with two HDMI ports and low-profile bracket

Magewell

Magewell Pro Capture Dual HDMI 11080 data converter

SKU CH-7Q89-8WVGY

Dual HDMI capture card records two 2K streams simultaneously with hardware scaling, de-interlacing and SG-DMA transfer for 24/7 operation

  • Capture two HD sources simultaneously via dual HDMI inputs
  • Record up to 2k × 2k resolution per channel
  • Stream continuously 24/7 with reliable PCIe 2.0 capture
  • Works on Windows, Linux and Mac OS X without extra drivers
  • Automatic signal detection and hardware time-stamp simplify multi-camera setups

Dual HDMI Capture Card

The Magewell Pro Capture Dual HDMI 11080 is a PCIe 2.0 capture card that accepts two independent HDMI 1.4a inputs with embedded audio. It is built for producers, streamers and integrators who need simultaneous HD ingest on a single low-profile board.

PCIe 2.0 and HDMI 1.4a Limits

The board uses a PCIe 2.0 x4 connection, so throughput is capped by that generation. Each HDMI port follows the 1.4a specification and DVI 1.0 compatibility, limiting maximum resolution to 2k x 2k and excluding newer HDMI 2.0 or 2.1 features.

Check Slot and OS Before Ordering

Verify the host has a free PCIe slot that can run at 2.0 speeds and that the operating system is Windows 7 through 10, Linux with V4L2 or Mac OS X. The card also requires a low-profile bracket clearance and driver support for DirectShow or V4L2 applications.

Highlights

  • Capture two HD sources simultaneously via dual HDMI inputs
  • Record up to 2k × 2k resolution per channel
  • Stream continuously 24/7 with reliable PCIe 2.0 capture
  • Works on Windows, Linux and Mac OS X without extra drivers
  • Automatic signal detection and hardware time-stamp simplify multi-camera setups

Specifications

No published specifications for this item yet.

Questions about this item

Which version of the Magewell Pro Capture Dual HDMI 11080 should I choose?

The 11080 is a single model with two HDMI inputs and a low-profile bracket included; there are no alternative capacity or version options listed for this card.

What does the 2k x 2k capture figure mean when the card is installed in a system?

It indicates each HDMI channel can acquire video up to a square 2K resolution, with on-board up/down scaling and de-interlacing applied before the frames reach the host.

What interface standard does the card use and what throughput limit does that impose?

The card plugs into a PCIe 2.0 slot, so its sustained transfer rate is capped by the PCIe 2.0 x1 lane bandwidth available to the SG-DMA engine.
