Small black aluminium box with four HDMI ports on one side, one HDMI port on the other, USB-C power and IR remote

LUOM

LUOM TJ-A140 4x1 HDMI 2.1 8K@60Hz Video Switch

SKU CH-DKHG-1R04B

Connect four HDMI 2.1 sources to one display at up to 8K 60 Hz and 4K 120 Hz, switching by button or IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.Support compressed audio; Dolby atmos,DTS digital, Dolby d
  • Input Connector4XHDMI2.1
  • Switch four sources to one display with IR remote control
  • Deliver 8K 60 Hz and 4K 120 Hz over HDMI 2.1 48 Gbps bandwidth
  • Support Dolby Atmos, DTS-HD and Dolby Digital compressed audio formats
  • Aluminium alloy chassis with USB-C 5 V 1 A power input and IR extension port
  • Compatible with 480p, 576p, 720p, 1080p, 1080p 3D, 144 Hz and 165 Hz refresh rates

Four-Port 8K HDMI 2.1 Switch

The LUOM TJ-A140 is a directional 4-in-1-out HDMI 2.1 switch built for gaming and home-theatre setups. It routes four HDMI 2.1 sources to a single display at up to 8K@60Hz or 4K@120Hz with 48Gbps bandwidth. An aluminium chassis houses the female ports, and a USB-C 5V/1A input powers the unit. An IR remote and front-panel button provide switching control.

Suits multi-source 8K or high-refresh 4K users

Buyers with up to four HDMI 2.1 devices such as a PC, console, streamer or Blu-ray player can share one 8K TV, monitor or projector. It supports HDR10+, 3D, HDCP 2.3 and compressed audio formats including Dolby Atmos and DTS-HD. Users needing bi-directional routing, more than four inputs or HDMI 2.0-only sources without 2.1 features should consider other options.

Fits between sources and one display

Connect each source to the four HDMI 2.1 inputs — Input 1 sits on one side, Inputs 2-4 and the output on the other — then run a single HDMI 2.1 cable to the display. The USB-C power port draws 5V/1A from a nearby USB charger or TV port, freeing a mains socket. The IR extension channel allows remote operation when the switch is tucked behind equipment.

Highlights

  • Switch four sources to one display with IR remote control
  • Deliver 8K 60 Hz and 4K 120 Hz over HDMI 2.1 48 Gbps bandwidth
  • Support Dolby Atmos, DTS-HD and Dolby Digital compressed audio formats
  • Aluminium alloy chassis with USB-C 5 V 1 A power input and IR extension port
  • Compatible with 480p, 576p, 720p, 1080p, 1080p 3D, 144 Hz and 165 Hz refresh rates

Specifications

BrandLUOM
SeriesTJ-A140
ModelTJ-A140
Part NumberTJ-A140
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.Support compressed audio; Dolby atmos,DTS digital, Dolby digital (DTS-HD and DOLBY)
2.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 8K@60Hz, 4K 120Hz,HDMI V2.0, HDCP V1.4, HDR 4K*2K
3.Compatible with HDTV which support HDMI and HDCP
4.Each port supports HDMI protocol input
5.Support video transmission: 18Gbps/ 1536MHZ

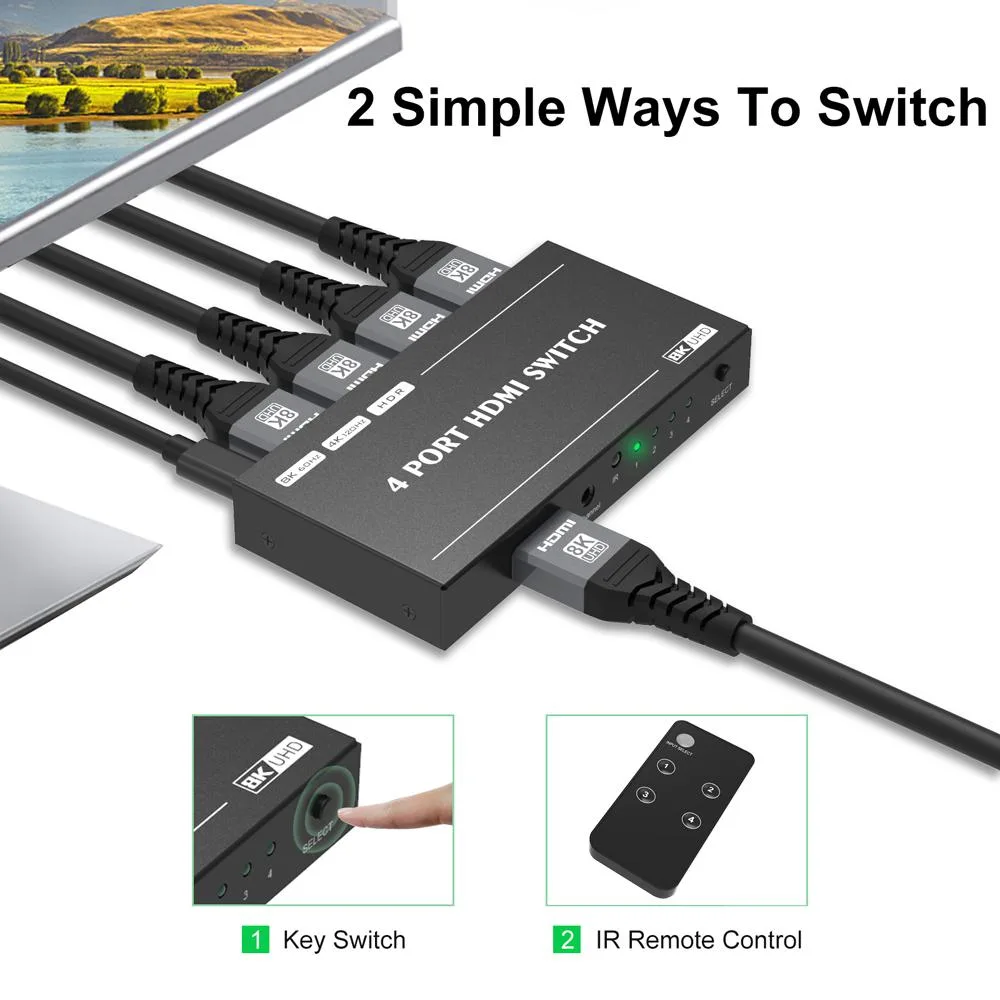

6.Support high-definition signal with remote control
7.Support automatic identification of the signal source
8.Support automatically jumps to the newly inserted HDMI source
Input Connector4XHDMI2.1
Output Connector1XHDMI2.1
Connector StyleFemale
Maximum Resolutions8K@60Hz 4K@120Hz
BandwidthHigh Speed 48Gbps
FeaturesHDMI Switch is a 4 port HDMI 2.1 8K HDMI switcher for your latest gaming and home theatre setup. It supports 4 HDMI inputs and 1 HDMI output, allowing for HDMI 2.1b and HDCP 2.2, along with 8K 4k Ultra HD and compatibility on all HDMI.
Features:
8K HDMI Switch 4x1, 8K@60Hz 4K 120Hz 4 In 1 Out HDMI Switcher Selector with IR Remote Control, Supports HDCP 2.2 4K@60Hz UltraHD HDR10 3D HD1080P Dolby DST, HDMI Splitter for PS4 Xbox Apple TV Fire Stick
·Newest 4x1 HDMI 2.0 Switch: Navceker HDMI switch supports HDR ( RGB8:8:8Dolby atmos Format), HDCP2.2, HDMI 2.0, can easily select 4 HDMI so
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1X Directional HDMI 8K 4 In 1 Out Switch

Questions about this item

What source devices and cables must I already have to use the four HDMI 2.1 inputs?

You need up to four HDMI 2.1 source devices such as a PC, Xbox, PS5 or streaming stick, plus four HDMI 2.1 cables rated for 48 Gbps, and a USB-C power adapter that delivers 5 V / 1 A for the switch.

Will my older 1080p 60 Hz monitor work if I keep it connected to the single HDMI 2.1 output?

Yes, the switch passes 480p, 576p, 720p and 1080p signals through the HDMI 2.1 output, so a legacy 1080p 60 Hz display will show the selected source without any extra setup.

How can I confirm the switch is passing 8K 60 Hz or 4K 120 Hz correctly after I connect everything?

Use the IR remote or front button to select each input, then check the display’s on-screen information for 8K at 60 Hz or 4K at 120 Hz, and verify HDR10+ and 12-bit deep colour are active.
