Small black DisplayPort switch with one input and two output ports

LUOM

LUOM TJ-A038 DisplayPort Switch 8K@30Hz 4K@120Hz

SKU CH-YWVN-ZDKDK

Splits one DisplayPort 1.4 source to simultaneous DisplayPort 1.4 and HDMI 2.1 outputs at up to 8K 30 Hz or 4K 120 Hz

  • TypeDisplayPort Switchers
  • Changer TypeDisplayPort Switch/Extender
  • ColorBlack
  • Ports2
  • SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort
  • Input Connector1 x DisplayPort 1.4
  • Connect two displays from one DisplayPort source
  • 8K at 30 Hz and 4K at 120 Hz supported
  • 4 Gbps bandwidth handles high refresh rates
  • Works with DisplayPort 1.4, 1.3, 1.2, 1.0
  • Mirror or extend across DP and HDMI outputs

LUOM TJ-A038 DisplayPort Switch

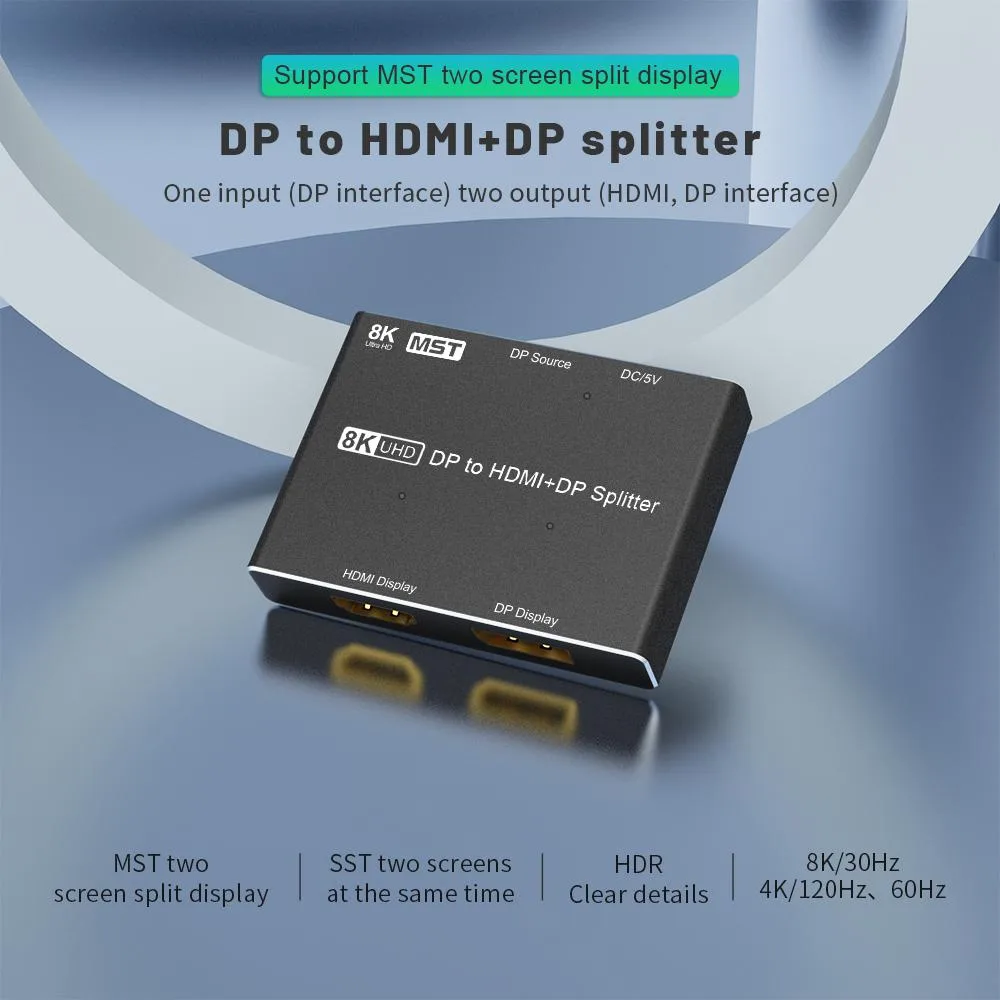

The LUOM TJ-A038 is a DisplayPort 1.4 switch that takes one DP input and provides simultaneous DisplayPort and HDMI 2.1 outputs. It handles 8K at 30 Hz and 4K at 120 Hz with 32.4 Gbps bandwidth. The unit supports both SST mirror and MST extended modes across Windows, Android and iOS devices.

Who this suits and who should look elsewhere

This switch suits users who need to drive a DisplayPort monitor and an HDMI display from a single DP source at up to 4K 120 Hz or 8K 30 Hz. It is not for buyers who require 1440p at 165 Hz or 144 Hz over the HDMI port, as those rates are only available on the DisplayPort output. Builders needing more than two outputs should consider a different solution.

The spec that decides fit

The key specification is the maximum resolution per mode: in MST extended mode each port delivers up to 4K at 60 Hz simultaneously, while a single port in SST mirror mode reaches 8K at 30 Hz or 4K at 120 Hz. External 5 V power via the included USB cable is required for operation.

Highlights

  • Connect two displays from one DisplayPort source
  • 8K at 30 Hz and 4K at 120 Hz supported
  • 4 Gbps bandwidth handles high refresh rates
  • Works with DisplayPort 1.4, 1.3, 1.2, 1.0
  • Mirror or extend across DP and HDMI outputs

Specifications

BrandLUOM
SeriesTJ-A038
ModelTJ-A038
Part NumberTJ-A038
TypeDisplayPort Switchers
Changer TypeDisplayPort Switch/Extender
ColorBlack
Ports2
SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort output
Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications
Support resolution:
8K@30Hz
4K@120Hz, 60Hz
1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)
(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)
Support operating system: Apple (iOS) system, Windows system, Android system
Support HDR
Support SST (Mirror) and MST (Extended) mode
Support 4:4:4, 4:2:2, 4:2:0
Input Connector1 x DisplayPort 1.4
Output ConnectorDisplayPort1.4+HDMI 2.1
Maximum Resolutions8K@30Hz 4K@120Hz
BandwidthHigh Speed 32.4Gbps
FeaturesDisplay Port HDMI: Creative dp 1.4 splitter, support dp input to dp and hdmi output simulantely. Greatly satisfying your individual creative needs. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets
Parameter Information 1): Single dp to dp support 8k@30hz, 4k@60/144hz, 2k@165hz. 2): Single dp to hdmi support 8k@30hz, 4k@60/122hz, 2k@144hz. 3): dp to dp+hdmi support dual 4k@60hz or 5k@60hz + 1080p@60hz: 4): when you use a thundebolt 3/USB C to dp cable connecting dp input interface, the dp and hdmi output can only support 4k. CHEC
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1 X Directional DP to DP+HDMI Switcher
1 X DC 5V power line
1 x instructions

Questions about this item

Should I pick the DisplayPort or HDMI output for my 4K 120 Hz monitor?

Use the DisplayPort output for 4K at 120 Hz; the HDMI port is limited to 4K at 60 Hz for high refresh rates above 60 Hz.

What does the 8K 30 Hz rating mean when I connect both screens?

In extended MST mode each port can reach 8K at 30 Hz or 4K at 120 Hz; with both active simultaneously the maximum drops to 4K at 60 Hz per display.

Does the DisplayPort 1.4 input limit bandwidth to 32.4 Gbps?

Yes, the DP 1.4 input caps total bandwidth at 32.4 Gbps, which governs the highest resolution and refresh combinations the splitter can deliver.
