LUOM TJ-A009 DP 1.4 Bidirectional Switch 8K@60Hz 4K@120Hz 32.4Gbps
A bidirectional DisplayPort 1.4 switch toggles between two sources on one display or one source across two displays at up to 8K 60 Hz and 32.4 Gbps
- TypeDisplayPort Switchers
- Changer TypeDisplayPort Switch/Extender
- ColorBlack
- Ports2
- SpecificationsVersion: DP 1.4 Bandwidth: 32.4gbps Refresh rate: 8K / 60Hz
- Input Connector1 x DisplayPort 1.4

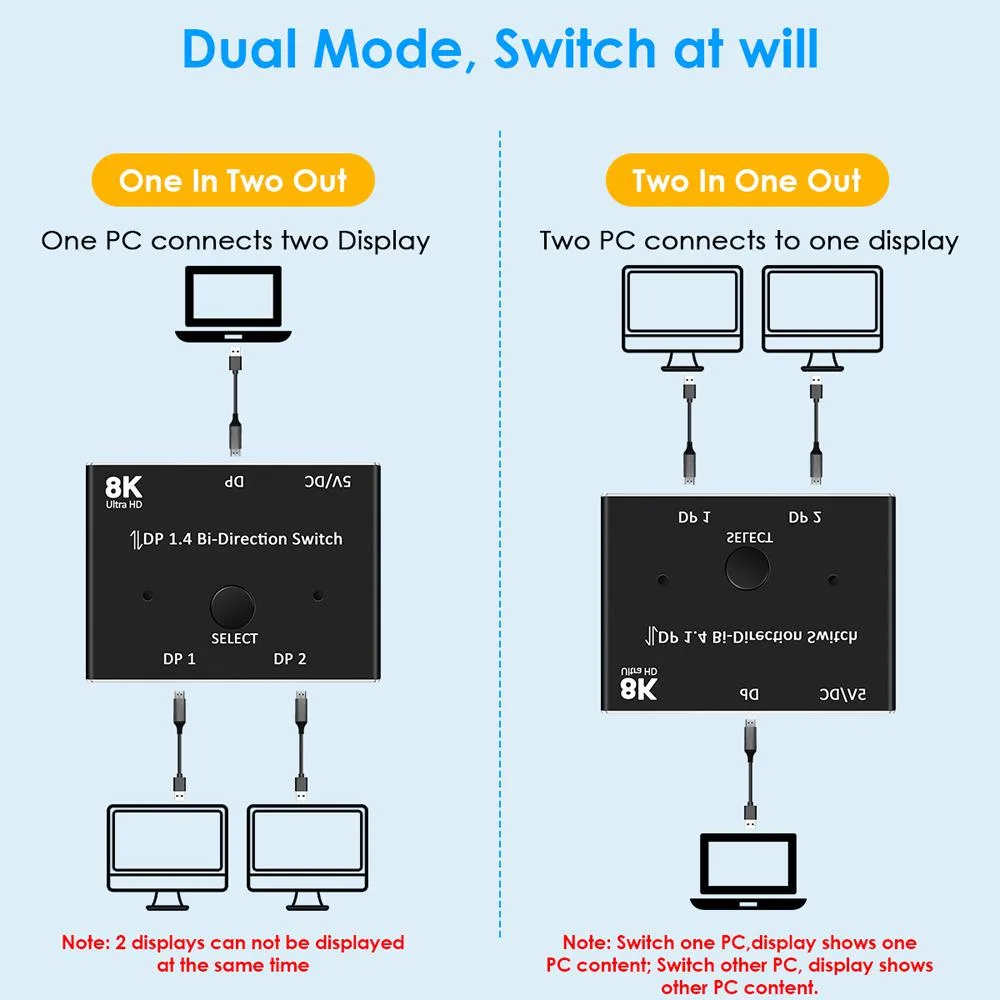

- Bidirectional design lets two sources share one display or one source toggle between two screens
- DP 1.4 bandwidth of 32.4 Gbps drives 8K at 60 Hz and 4K at 120 Hz
- Supports 10-bit colour depth with HDR for richer gradients and highlights
- Handles high refresh rates including 144 Hz at 1440p and 240 Hz at 1080p
- Front-panel button swaps the active signal in about one second with LED status indication
Bidirectional DP 1.4 Switch
The LUOM TJ-A009 is a manual DisplayPort 1.4 switch that routes one source to two displays or two sources to one display. It supports 8K at 60 Hz and 4K at 120 Hz with 32.4 Gbps bandwidth. The unit requires external 5 V power and uses a push-button to change the active path. It does not show both screens at the same time.
Build integration and cabling
Connect the switch between a GPU or laptop and one or two monitors using standard DisplayPort 1.4 cables to reach the rated speeds. The box draws power from the included DC 5 V cable, freeing the source from supplying extra current over the DP link. A single button press swaps the signal in about one second while LED indicators confirm the active port.
Thermals noise and power
The passive aluminium enclosure runs silently with no fan and stays cool during normal switching use. Power draw is limited to the 5 V supply needed for the switching logic and signal conditioning. No additional cooling or airflow is required in a typical desktop setup.
Highlights
- Bidirectional design lets two sources share one display or one source toggle between two screens
- DP 1.4 bandwidth of 32.4 Gbps drives 8K at 60 Hz and 4K at 120 Hz
- Supports 10-bit colour depth with HDR for richer gradients and highlights
- Handles high refresh rates including 144 Hz at 1440p and 240 Hz at 1080p
- Front-panel button swaps the active signal in about one second with LED status indication
Specifications
| Brand | LUOM |
|---|---|
| Series | TJ-A009 |
| Model | TJ-A009 |
| Part Number | TJ-A009 |
| Type | DisplayPort Switchers |
| Changer Type | DisplayPort Switch/Extender |
| Color | Black |
| Ports | 2 |
| Specifications | Version: DP 1.4 Bandwidth: 32.4gbps Refresh rate: 8K / 60Hz 4K / 120Hz / 144hz 2K / 144hz / 165hz Sound effect transmission: 32-bit / 24bit / 1536kh High dynamic HDR: Yes Color depth: 10bit Multi screen display: Yes Aux auxiliary channel: 720mb |
| Input Connector | 1 x DisplayPort 1.4 |
| Output Connector | 2 x DisplayPort 1.4 |
| Maximum Resolutions | 8K@60Hz 4K@120Hz |
| Bandwidth | High Speed 32.4Gbps |
| Features | High Resolution: DP display port switch splitter box supports 8K@60HZ, 4K@120Hz, 1080P@240Hz, 3D resolution and HD audio, the DP switcher will brings you a luxurious and wonderful audio-visual experience. Plug and Play: External power required, the DP switch box is easy to setup and operate. Note: While using, press"select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously. High Speed: This DP splitter provides bandwidth data transmission up to 32.4Gbps. |
| Dimensions | 12 x 6 x 0.08 inches |
| Weight | 1.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x DisplayPort 2 in 1 Out/1 in 2 Out Bidirectional Switcher Splitter Box 1 x DC 5v Power cable |
Questions about this item
Does the 32.4Gbps bandwidth hold steady during an all-day 8K 60Hz session?
The switch is rated for 32.4Gbps and supports 8K at 60Hz; it requires the external DC 5V power cable to maintain that throughput continuously.
How much heat or fan noise does the box produce when powered 24/7?
The unit has no fan and draws only 5V external power, so it runs silently with minimal warmth during extended use.
Which cables must I already own to reach 4K 120Hz on both ports?
You need standard DisplayPort 1.4 cables for each connection; the switch includes only the DC 5V power cable.
