Small black metal box with BNC and HDMI ports, power cable attached

LUOM

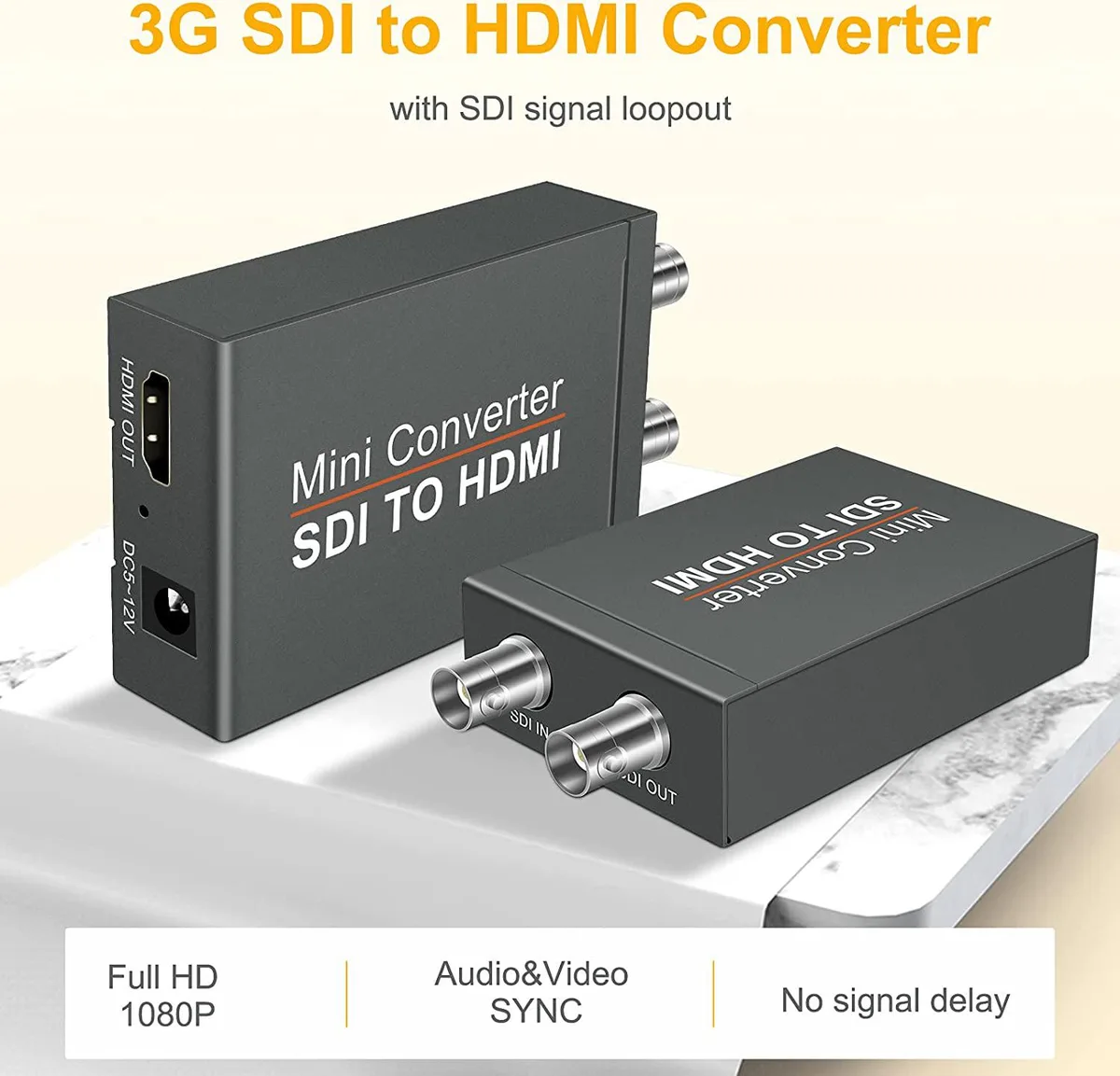

LUOM SDI to HDMI Converter with SDI Loopout (OZH5)

SKU CH-PRA2-FH0A1

Converts 3G, HD and SD-SDI to HDMI up to 1080P at 60 Hz with a loop-through SDI output

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts 3G-SDI, HD-SDI and SD-SDI to HDMI with auto format detection
  • Delivers simultaneous HDMI output and SDI loop-through for dual monitoring
  • Handles SDI data rates up to 2.97 Gbps and HDMI up to 1080P at 60 Hz
  • Supports wide input resolutions from 480i to 1080p at 24, 25, 30, 50, 60 Hz
  • Includes power adapter and USB charge cable for immediate setup

SDI to HDMI Converter with Loopout

This LUOM unit converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI while providing an SDI loop output for simultaneous monitoring. It auto-detects input formats and supports 1080P at 60Hz on the HDMI side with a 2.97Gbps SDI data rate. The package includes the converter, a power adapter and a user manual.

Check Your Signal and Power Setup

Verify that your source delivers a pure SDI signal over BNC; the converter does not accept RF, CVBS, AHD, TVI or CVI signals on the same connector. Ensure you have a free mains socket for the supplied power adapter, as the unit requires external power. Confirm your display accepts 720P or 1080P at 50Hz or 60Hz via HDMI 1.3.

Suits CCTV and Broadcast Monitoring, Not HDMI-to-SDI

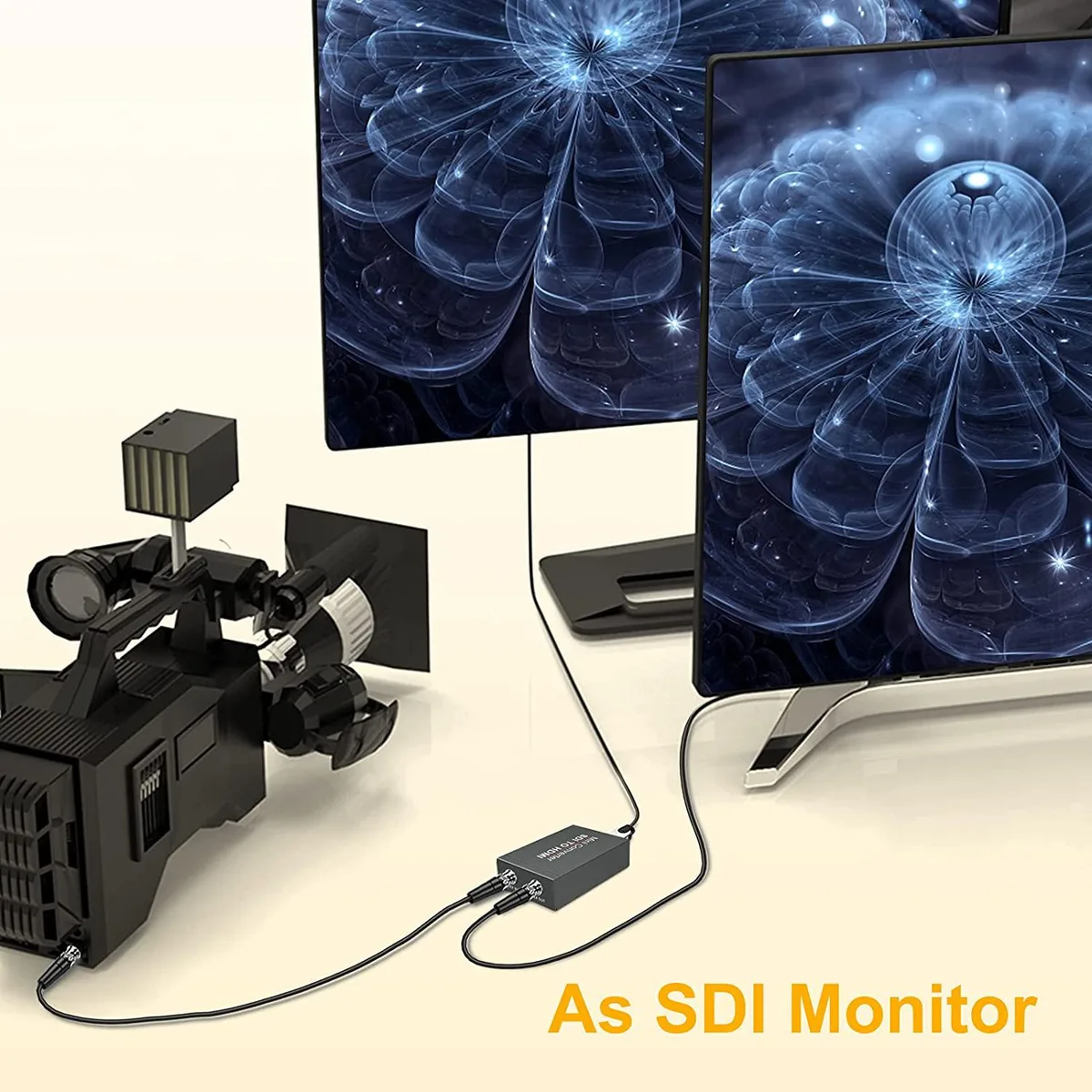

Installers who need to view SDI camera feeds on HDMI screens while keeping an SDI monitor in the chain will benefit from the loop-through design. It is not for users who want to send HDMI sources to SDI equipment, nor for setups that require conversion of analogue or other BNC-based formats.

Highlights

  • Converts 3G-SDI, HD-SDI and SD-SDI to HDMI with auto format detection
  • Delivers simultaneous HDMI output and SDI loop-through for dual monitoring
  • Handles SDI data rates up to 2.97 Gbps and HDMI up to 1080P at 60 Hz
  • Supports wide input resolutions from 480i to 1080p at 24, 25, 30, 50, 60 Hz
  • Includes power adapter and USB charge cable for immediate setup

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

Does the package include everything needed to power and connect the converter right away?

The box contains the converter, a power adapter and a USB charge cable so you can supply power without buying anything extra.

Which SDI signal standard should I match to my camera — SD, HD or 3G?

The unit auto-detects 3G-SDI, HD-SDI and SD-SDI, so any of those standards will work without manual selection.

What does the 1080P@60Hz HDMI output mean for my monitor or recorder?

It delivers a progressive 1080p picture at 60 frames per second over HDMI 1.3, matching the highest listed input frame rate.
