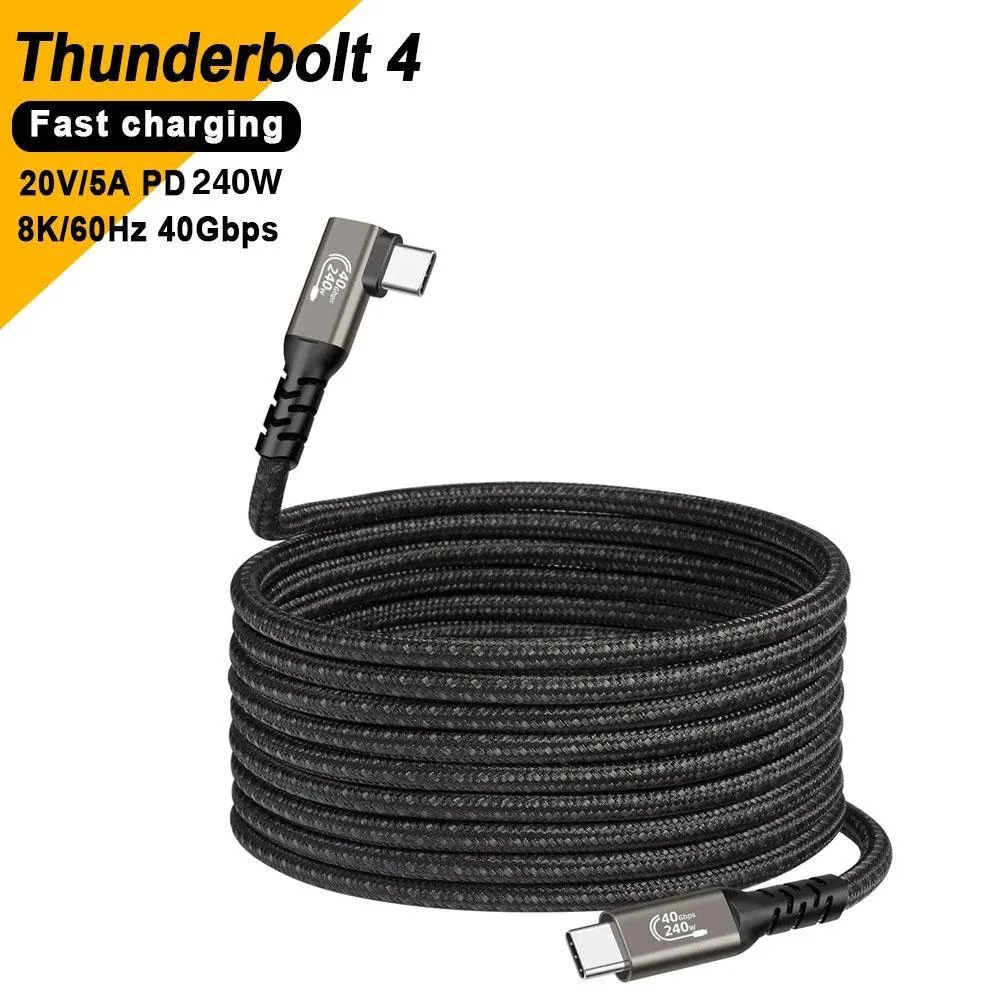

Black nylon-braided USB-C to USB-C cable with 90-degree right-angle connector, 5ft length

LUOM

LUOM PQ005 USB4 90-degree cable 40Gbps 240W 5ft

SKU CH-G5XX-009NF

Right-angled USB-C cable delivers 40 Gbps data, 240 W charging and 8K@60 Hz video in a 5 ft braided design

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 5 Feet

  • Charges devices up to 240W with PD 3.1 compatibility
  • Transfers data at 40Gbps using USB4 Gen3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • Works with Thunderbolt 3 and 4 hosts

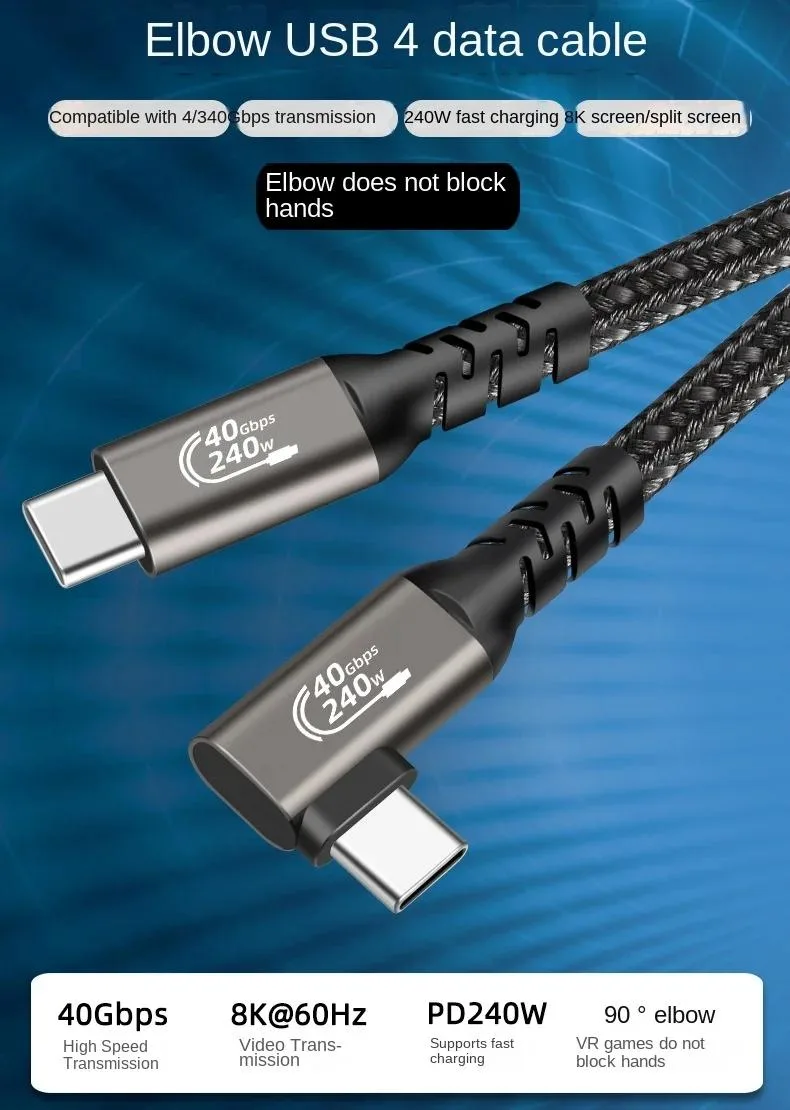

  • Right-angle connector eases tight-port installations

USB4 cable with 40Gbps bandwidth

The LUOM PQ005 is a USB4 Gen 3x2 cable that delivers up to 40Gbps bi-directional data transfer between two USB-C devices. It supports single 8K@60Hz or dual 4K@60Hz video output and carries up to 240W of power with PD 3.1. The 90-degree connector reduces strain on ports in tight spaces.

Sustained high-speed transfers and charging

At 40Gbps the cable can move large datasets such as 14 hours of HD video or 25000 photos in roughly one minute when both ends use USB4 Gen 3x2 ports. Power delivery negotiates down through 180W, 140W, 100W, 60W and 45W steps, so a single cable handles laptops, phones and accessories without overheating during long sessions.

Check your ports and power needs

Verify that your host and peripheral both expose USB-C ports capable of USB4 Gen 3x2 or Thunderbolt 3 to reach the 40Gbps ceiling; older USB 3.2 or 3.1 ports will limit bandwidth to 20Gbps or less. Ensure your charger supports PD 3.1 at 48V/5A if you require the full 240W rating for large laptops or docks.

Highlights

  • Charges devices up to 240W with PD 3.1 compatibility
  • Transfers data at 40Gbps using USB4 Gen3x2
  • Drives single 8K@60Hz or dual 4K@60Hz displays
  • Works with Thunderbolt 3 and 4 hosts
  • Right-angle connector eases tight-port installations

Specifications

BrandLUOM
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 90-degree USB4 cable get warm or draw noticeable power when it runs at 240W all day?

The cable is rated for up to 240W (48V/5A) power delivery and 40Gbps data transfer; heat and power draw depend on the connected charger and device, not on the cable itself.

What must I already own for this 5ft USB-C to USB-C cable to deliver 240W charging and 8K@60Hz video?

You need a USB-C power adapter that supports PD 3.1 up to 240W and a host device with a USB4 or Thunderbolt 3 port capable of 40Gbps and 8K output.

Will this 40Gbps USB4 cable work with my older laptop that only has USB 3.2 Gen 2 ports?

Yes, the cable is backward compatible with USB 3.2, 3.1 and 3.0 ports, but data speed will be limited to 20Gbps on Gen 2 and video output will follow the host port’s maximum capability.
