Black right-angle USB-C cable with straight connector on one end and L-shaped plug on the other, five feet long

LUOM

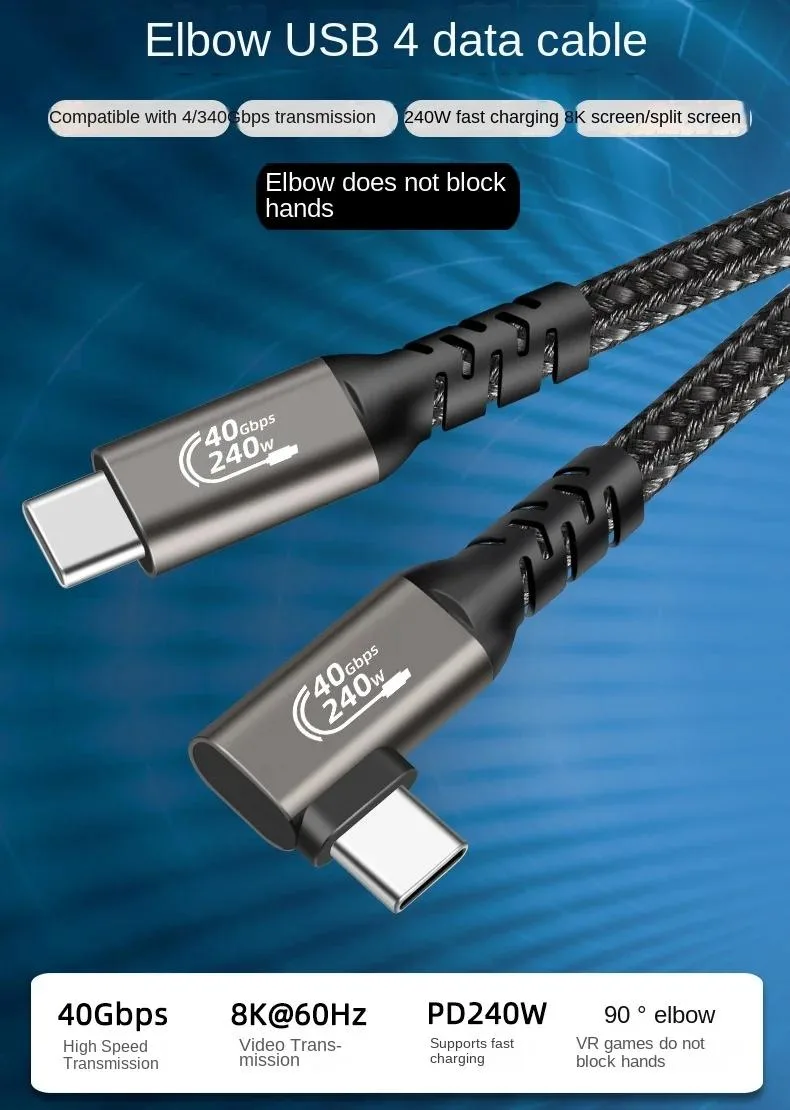

LUOM PQ005 USB4 40Gbps 240W USB C to USB C Right Angle Cable 5ft Black

SKU CH-E60B-BRF85

Right-angle USB-C cable delivers 240W charging, 40Gbps data and 8K@60Hz video over five feet

  • TypeUSB4
  • Connector TypeUSB C to USB C
  • ColorBlack
  • Thunderbolt 3Yes
  • Terminal GenderMale to Male
  • Apple CompatibleUSB-C port

Cable Length 5 Feet

  • Charges up to 240W with PD 3.1 EPR charger
  • Transfers data at 40Gbps using USB4 Gen 3x2
  • Drives 8K display at 60Hz over single cable
  • Right-angle USB-C connectors fit tight spaces
  • Works with Thunderbolt 3 and 4 hosts

What this cable is and who it serves

The LUOM PQ005 is a 5 ft USB4 Gen 3x2 cable with right-angle USB-C male connectors on both ends. It carries up to 40 Gbps of bidirectional data, supports 8K video at 60 Hz or 4K at 144 Hz, and delivers up to 240 W of power when paired with a PD 3.1 EPR charger and a compatible device.

What to check on your existing setup

Confirm that your host and peripheral both have USB-C ports able to negotiate the power and data rates you need. For 240 W charging you require a 240 W EPR PD 3.1 charger and a device that accepts 48 V at 5 A; lower power levels such as 140 W, 100 W or 60 W are also supported. Video output at 8K 60 Hz or dual 4K 60 Hz needs a source and display that advertise those modes. Thunderbolt 3 and 4 hosts work for data and video, but Thunderbolt 4 certification is not claimed.

How it fits into a build

The right-angle plugs reduce strain in tight spaces behind laptops, docks, or eGPU enclosures. The cable handles charging, high-speed storage transfers, and external-display signals in a single run, freeing you from carrying separate power and video leads. It is backward compatible with USB 3.2, USB 2.0 and legacy PD/QC protocols, so older USB-C gear still functions at its own rated limits.

Highlights

  • Charges up to 240W with PD 3.1 EPR charger
  • Transfers data at 40Gbps using USB4 Gen 3x2
  • Drives 8K display at 60Hz over single cable
  • Right-angle USB-C connectors fit tight spaces
  • Works with Thunderbolt 3 and 4 hosts

Specifications

BrandLUOM
ModelPQ005
TypeUSB4
Connector TypeUSB C to USB C
ColorBlack
Thunderbolt 3Yes
Terminal GenderMale to Male
Apple CompatibleUSB-C port
Specifications240W USB4 Cable
USB Standard: The Latest USB4 Gen 3x2
Connector Gender & Type: USB C Male to USB C Male, Bi-directional & Reversible.
Power Delivery: PD 3.1/PD 3.0 PPS/PD2.0, QC4.0/3.0, and AFC, SCP, FCP, etc.
Extended Power Range: Fully Supported, Backwards compatible with lower power requirements like 180W/140W/100W/60W and below.
Supported Maximum Wattage: 240W, Compatible with Apple 140W USB-C EPR Charger to power MacBook Pro 16'' with a full load of 140W (Requires a 240W EPR PD 3.1 charger and device to load 240W).
Supported Maximum Voltage: 48V, Voltage rating according to PD 3
Refresh Rate8K@60Hz
Features240W, Leading Fast Charging Tech: When our USB C to USB C cable paired with a compatible charger, it reaches the maximum power supported by the device, supporting up to 240W (48V/5A) power supply. Within the next 5 to 10 years, this USBC to USBC fast charging cable can completely meet the demands of fast charging, and could charge virtually any USB-C device from phones and accessories to gaming laptops.
Support 8K UHD Display: Support ultra HD video resolution, 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video, 40Gbps speed cables are suitable for eGPU and dual 4K

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes inside the LUOM PQ005 package and do I need any extra adapters?

The box contains the 5 ft right-angle USB-C to USB-C cable only. No separate adapters are included, so you must already have USB-C ports on both the host and the peripheral.

How do I choose between the supported power levels such as 240W, 140W or 100W?

The cable automatically negotiates the highest power both your charger and device support, up to 240W at 48V/5A, and falls back to 180W, 140W, 100W, 60W or lower without any manual selection.

What does the 40Gbps rating mean when I connect this cable to my laptop and an external SSD?

With USB4 Gen 3x2 devices the link runs at 40Gbps bi-directional, letting you move large video files or disk images in seconds; actual throughput depends on the drive and controller inside your machine.
