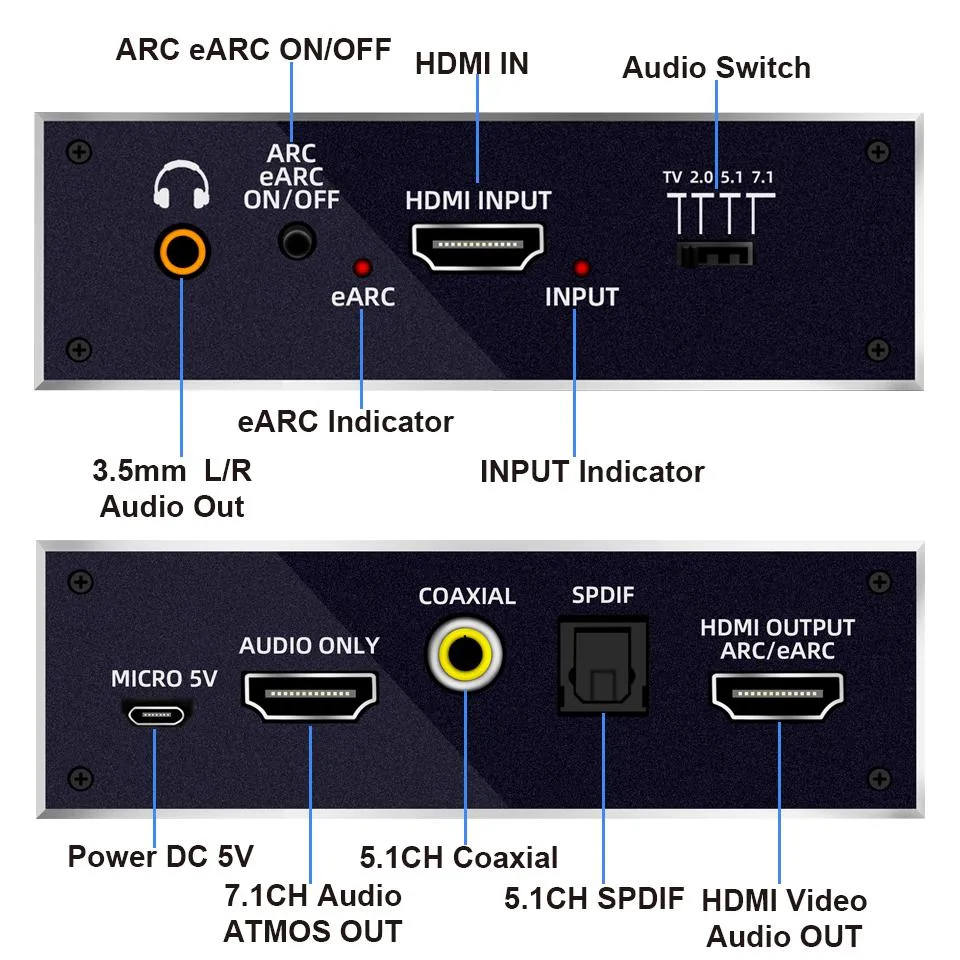

Black rectangular HDMI audio extractor with multiple output ports and toggle switch

LUOM

LUOM OZV8E eARC HDMI 2.0 Audio Extractor 4K@60Hz 18Gbps

SKU CH-52Y0-MDTSZ

Extracts audio from 4K 60 Hz HDMI to optical, coaxial, 3.5 mm and dedicated HDMI audio port with Dolby Atmos and DTS:X support

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extract audio to legacy gear via 3.5 mm, Toslink or coaxial while keeping 4K 60 Hz video intact
  • Switch between stereo, 5.1 and 7.1 with a four-position toggle for quick format matching
  • Pass 10-bit HDR and HDCP 2.3 through the HDMI loop-out without signal loss
  • Decode Dolby Atmos, TrueHD, DTS:X and Master Audio on the dedicated HDMI audio port
  • Compact 5.59 × 3.15 × 1.26 in enclosure powered by an included 5 V 1000 mA adapter

LUOM OZV8E eARC Audio Extractor

The LUOM OZV8E extracts audio from a single HDMI 2.0 source and delivers it through four analogue and digital outputs. It passes 4K video at 60 Hz with 10-bit HDR and HDCP 2.3 compliance while sending sound to a receiver, soundbar or headphones via 3.5 mm jack, Toslink, coaxial or a dedicated HDMI audio port. A four-position switch selects TV, 2.0, 5.1 or 7.1 channel modes for immediate compatibility.

Sustained 4K 60 Hz operation with HDR pass-through

The extractor maintains an 18 Gbps link continuously, so extended viewing sessions or gaming marathons do not introduce signal drop-outs or audio sync drift. HDMI loop-out preserves the original video path to a display while the audio-only port feeds multichannel formats including Dolby Atmos and DTS:X without re-encoding. The DC 5 V 1000 mA supply keeps the active circuitry stable under constant load.

Upgrade from basic ARC or optical-only connections

This unit replaces a TV’s limited ARC return or a simple stereo DAC when the source carries lossless 5.1 or 7.1 streams. The jump is worth it if your AV receiver lacks HDMI 2.0 inputs but accepts Toslink or coaxial multichannel, or if you need simultaneous analogue headphone and digital surround outputs. It does not add HDMI 2.1 bandwidth or variable refresh rate support.

Highlights

  • Extract audio to legacy gear via 3.5 mm, Toslink or coaxial while keeping 4K 60 Hz video intact
  • Switch between stereo, 5.1 and 7.1 with a four-position toggle for quick format matching
  • Pass 10-bit HDR and HDCP 2.3 through the HDMI loop-out without signal loss
  • Decode Dolby Atmos, TrueHD, DTS:X and Master Audio on the dedicated HDMI audio port
  • Compact 5.59 × 3.15 × 1.26 in enclosure powered by an included 5 V 1000 mA adapter

Specifications

BrandLUOM
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

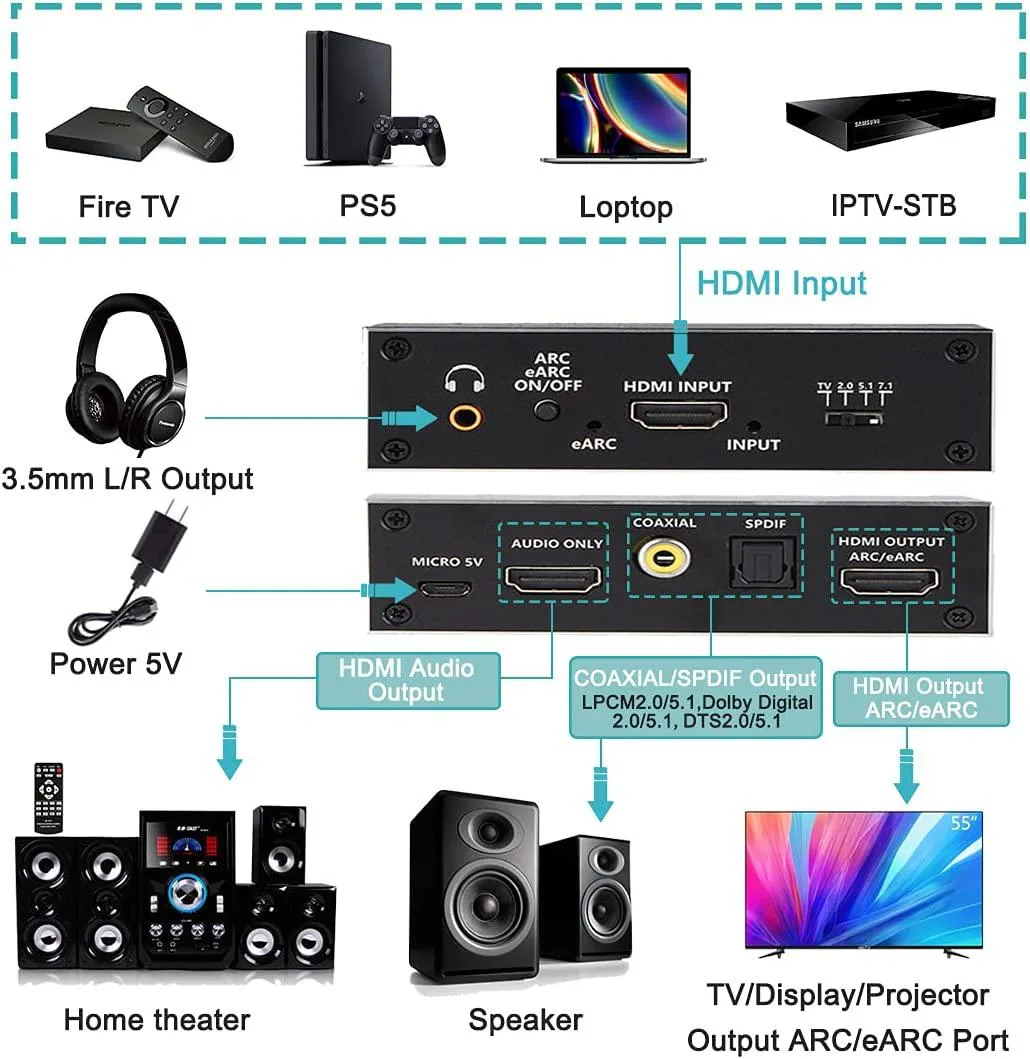

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

Does the LUOM OZV8E run hot or draw much power when left on all day?

It ships with a DC 5 V 1000 mA adapter, so maximum draw is only 5 watts and the small 5.59 × 3.15 × 1.26 in enclosure stays cool during continuous use.

What cables or devices must I already have to connect this extractor?

You need one HDMI source, one HDMI display or projector, and either a TOSLINK optical, coaxial or 3.5 mm analogue cable to reach your amplifier or active speakers.

Will the OZV8E pass 4K 60 Hz HDR through to an older 1080p AV receiver?

Yes — the HDMI loop‑out carries 3840 × 2160 @ 60 Hz with 10‑bit HDR and HDCP 2.3, while the audio ports down‑mix to PCM 2.0, 5.1 or 7.1 for legacy gear.
