Small black box with HDMI ports and a toggle switch

LUOM

LUOM OZV8E 4K 60Hz HDMI 2.0b Audio Extractor 18Gbps

SKU CH-KPBY-JYDEX

Extracts audio from 4K 60 Hz HDMI to 3.5 mm, Toslink, coaxial and HDMI audio ports with a four-position format switch

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • 4K 60 Hz video pass-through at 18 Gbps bandwidth
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio-only port
  • Toggle switch selects TV, 2.0, 5.1 or 7.1 channel output
  • Supports Dolby Atmos, TrueHD, DTS:X and other high-definition formats
  • Compact 5.59 × 3.15 × 1.26 inch unit powered by 5 V 1000 mA adapter

4K 60Hz HDMI Audio Extractor

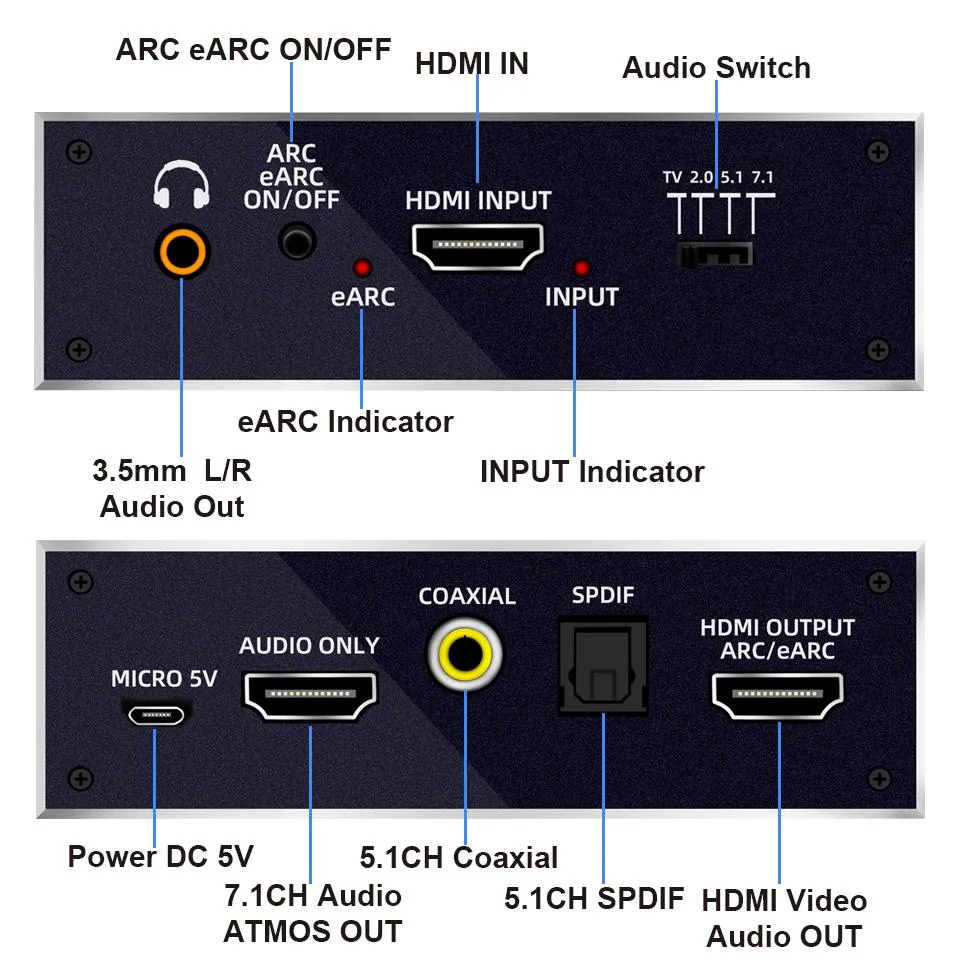

The LUOM OZV8E is an HDMI 2.0b audio extractor that takes a single HDMI input and provides one HDMI loop-through plus four separate audio outputs: 3.5 mm jack, Toslink SPDIF, coaxial and an HDMI audio-only port. It handles video up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and passes HDR and ARC signals. A four-position toggle selects TV, 2.0, 5.1 or 7.1 channel audio formats.

Home-theatre owners with legacy receivers

This extractor suits anyone who needs to split multichannel audio from a 4K source to an older amplifier, soundbar or headphone setup that lacks HDMI 2.0b inputs. It is not for installations that require switching between multiple HDMI sources, nor for users who need audio formats beyond the listed Dolby and DTS variants.

18 Gbps bandwidth at 4K 60Hz

The 18 Gbps ceiling determines whether the extractor can carry your source’s full video and audio payload; if your source demands higher bandwidth for 4K at greater than 60 Hz or for 8K signals, this unit will not pass the complete stream.

Highlights

  • 4K 60 Hz video pass-through at 18 Gbps bandwidth
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio-only port
  • Toggle switch selects TV, 2.0, 5.1 or 7.1 channel output
  • Supports Dolby Atmos, TrueHD, DTS:X and other high-definition formats
  • Compact 5.59 × 3.15 × 1.26 inch unit powered by 5 V 1000 mA adapter

Specifications

BrandLUOM
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

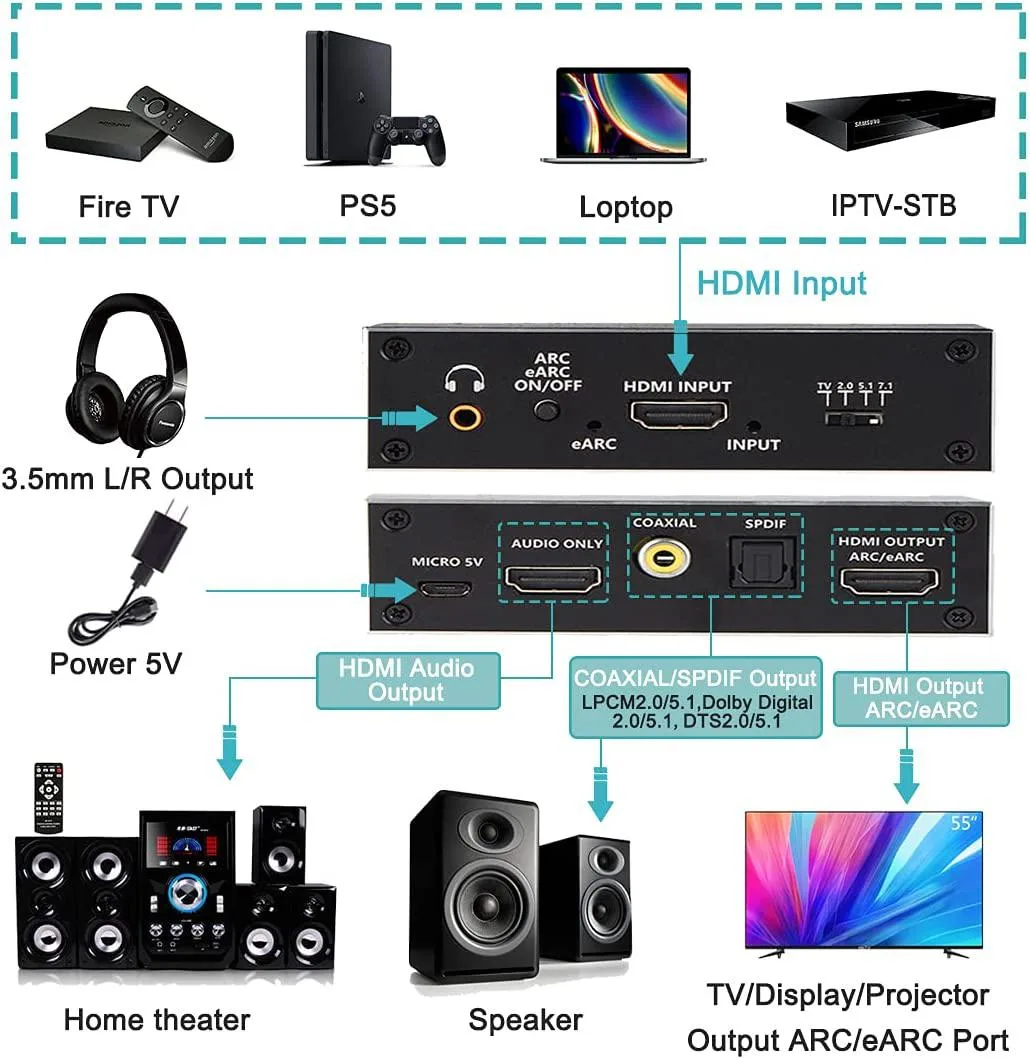

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

How can I verify the LUOM OZV8E is passing 4K 60Hz video correctly after connecting it?

Check that your display shows 3840 x 2160 at 60 Hz and that the source reports HDCP 2.3 handshake; the extractor supports 18Gbps bandwidth and 10-bit HDR pass-through, so the on-screen resolution and frame rate confirm video is working as intended.

Which cables and accessories are included with the LUOM OZV8E and what must I provide myself?

The box contains the extractor, a DC 5V 1000mA power adapter and a user manual; you must supply the HDMI cable for the input, the HDMI cable for the loop-out to your display, and any Toslink, coaxial or 3.5 mm audio cables for your receiver or speakers.

When should I choose the 2.0, 5.1 or 7.1 position on the four-way audio toggle switch?

Set the switch to TV for stereo pass-through, 2.0 for PCM stereo, 5.1 for Dolby Digital or DTS 5.1, and 7.1 for LPCM 7.1 or Dolby Atmos/DTS:X; match the position to the format your audio system can decode.
