Small black box with HDMI, optical and 3.5 mm ports

LUOM

LUOM OZV8C HDMI Audio Extractor 4K@60Hz Toslink 3.5mm

SKU CH-EZ5E-057BP

Extracts audio from a 4K 60 Hz HDMI signal to optical Toslink and 3.5 mm stereo outputs while passing video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to Toslink and 3.5 mm while passing 4K@60 Hz video
  • Three EDID modes — TV, 2.0CH, 5.1CH — match your sound system
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • Optical and analogue outputs work independently of the display
  • Compact 5.59 x 3.15 x 1.26 in enclosure fits behind equipment

What this extractor does

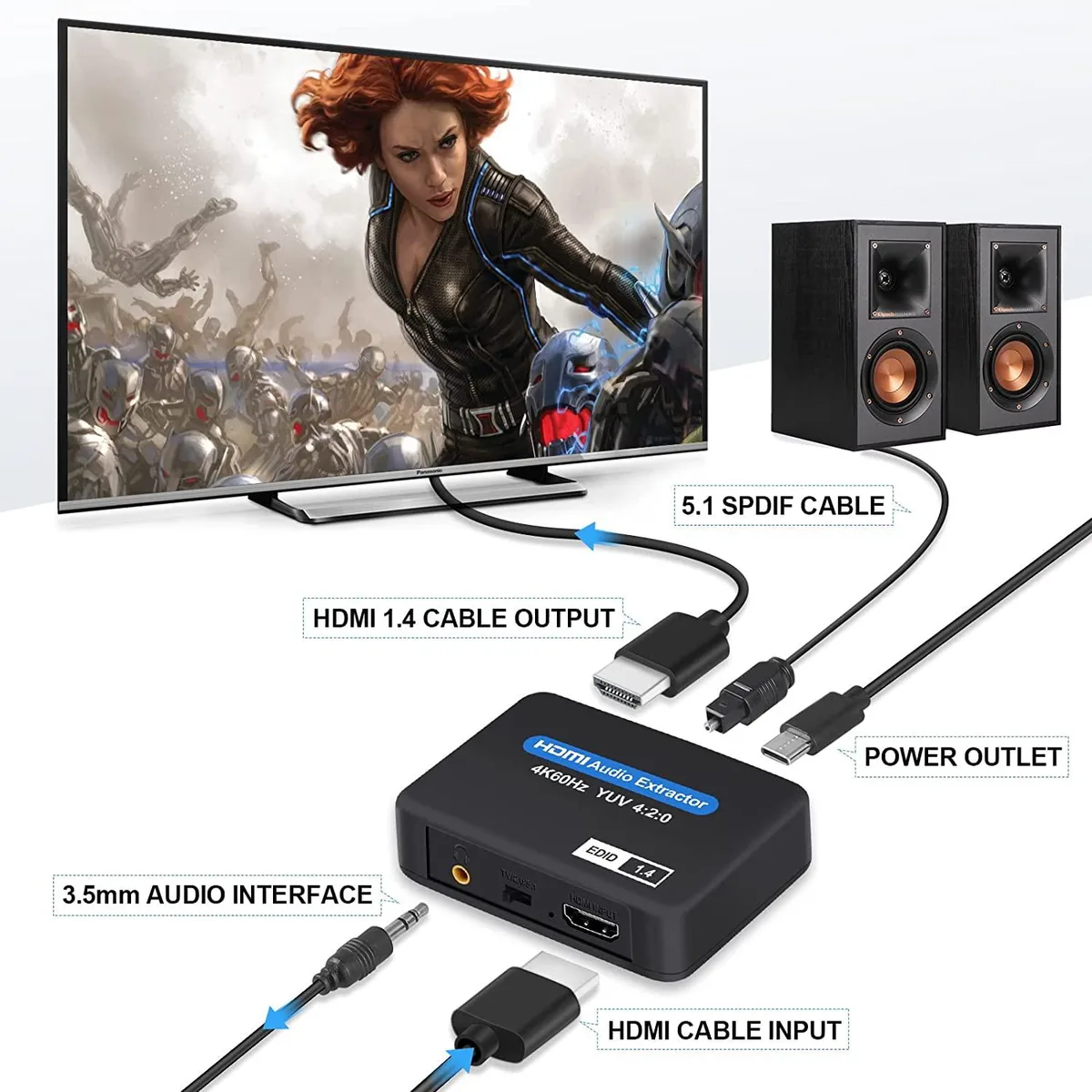

The LUOM OZV8C takes one HDMI source and delivers an identical HDMI video feed while splitting the audio to both an optical Toslink SPDIF port and a 3.5 mm stereo jack. It handles resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 1.4 compliance.

Who this suits and who should look elsewhere

Installers connecting a console, streamer or Blu-ray player to a TV while feeding a soundbar, amplifier or headphones will find the three EDID modes — TV, 2.0 CH and 5.1 CH — convenient. Buyers needing multiple HDMI outputs or audio formats beyond the listed DTS-HD, Dolby TrueHD, LPCM 7.1, DTS and Dolby-AC3 should consider other solutions.

The spec that decides fit

The extractor passes 4K at 60 Hz through its single HDMI output while simultaneously providing separate digital and analogue audio paths, so the key question is whether your source and display both operate within the 18 Gbps, HDCP 1.4 envelope.

Highlights

  • Extracts audio to Toslink and 3.5 mm while passing 4K@60 Hz video
  • Three EDID modes — TV, 2.0CH, 5.1CH — match your sound system
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • Optical and analogue outputs work independently of the display
  • Compact 5.59 x 3.15 x 1.26 in enclosure fits behind equipment

Specifications

BrandLUOM
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

What does the 4K@60Hz rating mean when I connect this between my source and display?

The extractor passes 3840 x 2160 at 60 Hz through its HDMI output while simultaneously sending audio to the optical and 3.5 mm ports, so the connected monitor or TV receives the full 4K 60 Hz signal without downscaling.

How does the HDMI 2.0 interface limit the audio formats I can extract?

The 18 Gbps HDMI 2.0 link carries up to 7.1-channel LPCM, DTS-HD, Dolby TrueHD and other listed formats, but the extractor cannot decode Dolby Digital Plus; the optical output is limited to 2.0-channel PCM or 5.1-channel bitstream, while the 3.5 mm jack outputs only 2.0-channel PCM stereo.

What physical space and power does the unit need to fit in my rack or behind the TV?

The black metal enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces; it requires the included 5 V power adaptor and has one HDMI input plus HDMI, Toslink and 3.5 mm outputs on the same face for straightforward cable routing.
