Small black box with HDMI, optical and 3.5 mm ports

LUOM

LUOM OZV8C HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-2TAK-J124X

Extracts audio from a 4K 60 Hz HDMI signal to optical SPDIF and 3.5 mm outputs while passing video through to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz without compression
  • Three EDID modes — TV, 2.0 CH, 5.1 CH — match your sound system
  • Optical and analogue outputs work independently of the display
  • Compact 5.59 x 3.15 x 1.26 in unit powered by included 5 V adaptor

4K 60 Hz HDMI audio extractor

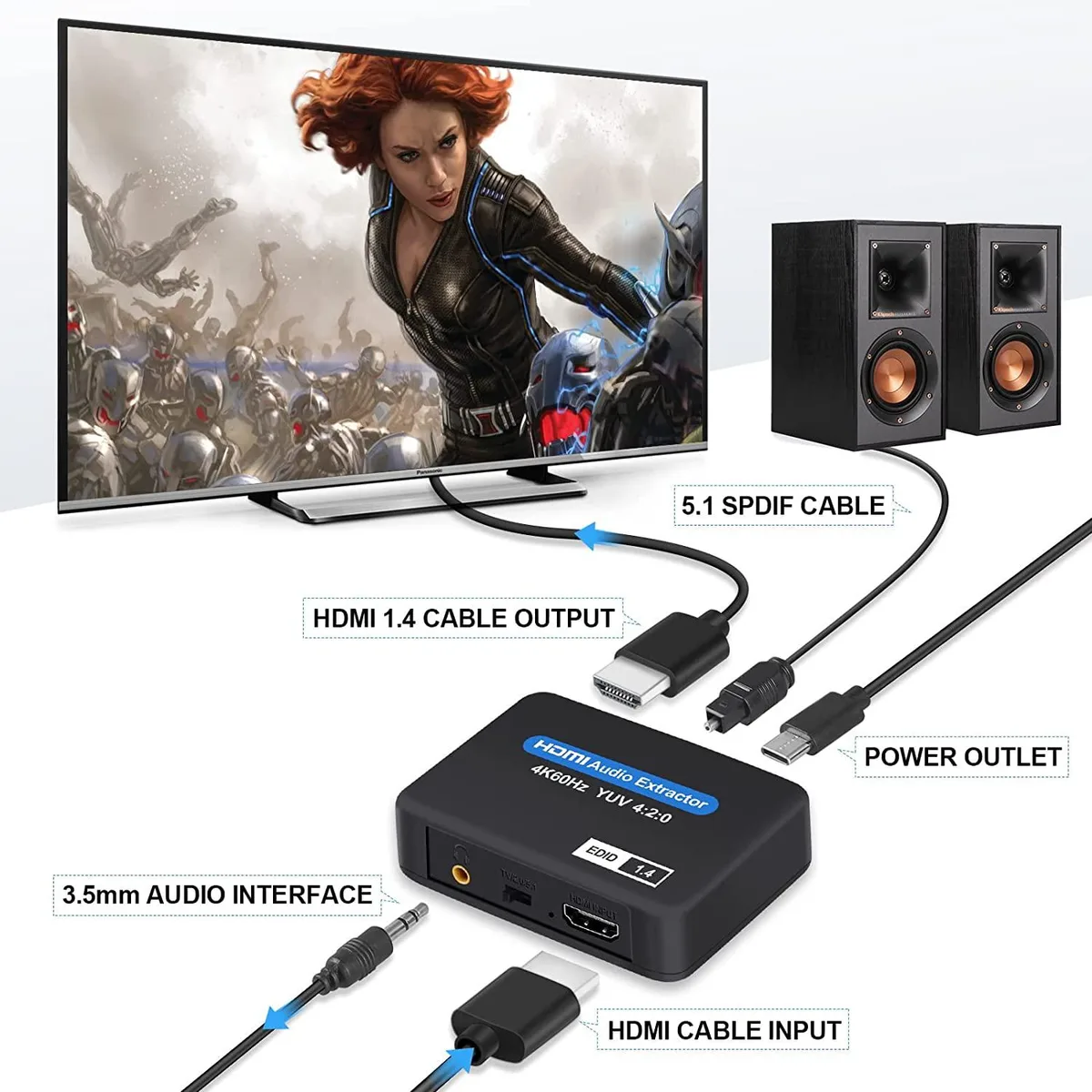

The LUOM OZV8C takes a single HDMI source and splits it into one HDMI video output plus separate optical Toslink SPDIF and 3.5 mm stereo audio outputs. It handles 3840 x 2160 resolution at 60 Hz with 18 Gbps bandwidth and supports HDCP 1.4 and 3D content. A 5 V power adapter is included for reliable operation.

For sound systems without HDMI input

Ideal when a projector, soundbar, amplifier or headphones lack an HDMI port but need the audio from a Fire Stick, Apple TV, Roku, game console or PC. The extractor cannot decode Dolby Digital Plus, so setups that require that format should look elsewhere. It also provides only one HDMI output, so multi-display installations need a different solution.

Capacity and headroom

The unit passes 4K at 60 Hz, 1080p at 60 Hz and 720p signals with colour depths up to 30 bit. Audio formats supported on the optical port include LPCM 7.1, DTS-HD, Dolby TrueHD, DTS and Dolby AC3; the 3.5 mm jack outputs 2.0 CH PCM only. Maximum cable reach is 32.8 ft per side using AWG 26 HDMI cable. Bandwidth above 18 Gbps or audio formats not listed will not pass through.

Highlights

  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz without compression
  • Three EDID modes — TV, 2.0 CH, 5.1 CH — match your sound system
  • Optical and analogue outputs work independently of the display
  • Compact 5.59 x 3.15 x 1.26 in unit powered by included 5 V adaptor

Specifications

BrandLUOM
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

Do I need an HDMI cable and a 5 V power adapter to use the LUOM OZV8C extractor?

Yes — the unit has one HDMI input and one HDMI output, so you supply two HDMI cables, and it ships with a 5 V power adaptor that must be connected.

Will my older 1080p display still pass video through the extractor at 60 Hz?

The extractor supports 4K at 60 Hz and down-scales to 1080p at 60 Hz, so a 1080p display works without changing the refresh rate.

How can I confirm the extractor is sending 5.1-channel audio through the optical port?

Set the EDID switch to 5.1CH, play multichannel content, and verify your amplifier or soundbar shows a 5.1 PCM or Dolby Digital signal on its display.
