Small black box with HDMI, optical and 3.5mm ports

LUOM

LUOM OZV8C HDMI 2.0 Audio Extractor 4K 60Hz HDMI Input HDMI Output Toslink Optical SPDIF 3.5mm Stereo

SKU CH-BRH7-DEEPQ

Extracts audio from a 4K 60 Hz HDMI source to optical SPDIF and 3.5 mm stereo while passing video through to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Three EDID modes — TV, 2.0 CH, 5.1 CH — match your sound system
  • 18 Gbps bandwidth carries 4K 60 Hz, 3D and deep colour up to 30 bit
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-res formats
  • Compact 5.59 × 3.15 × 1.26 in unit includes 5 V power supply

HDMI 2.0 Audio Extractor 4K 60 Hz

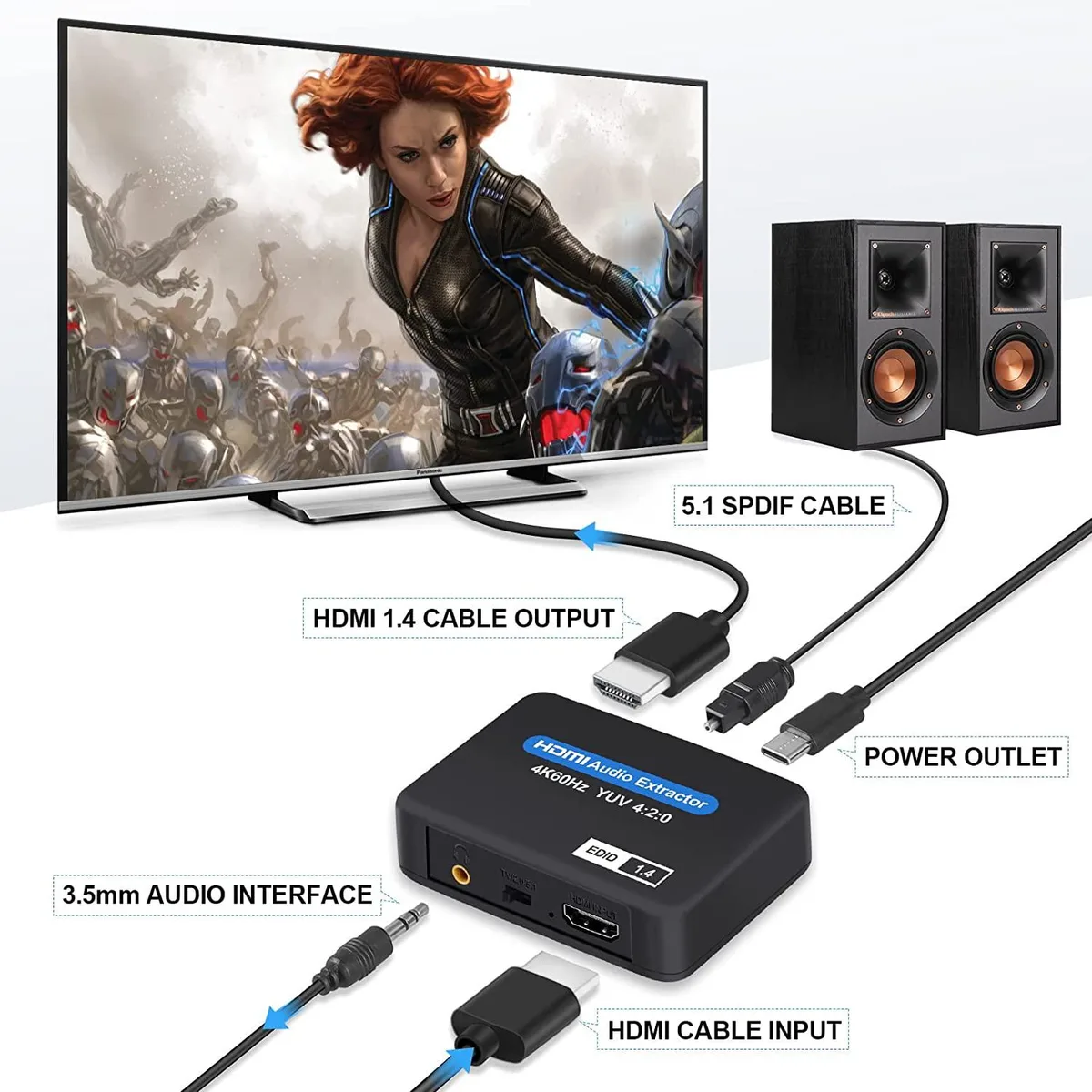

The LUOM OZV8C extracts audio from a single HDMI source and delivers it through optical Toslink SPDIF and 3.5 mm stereo outputs while passing the video signal unchanged to a display. It supports resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 1.4 compliance. The unit includes a 5 V power adapter and offers three selectable audio EDID modes: TV, 2.0 CH and 5.1 CH.

Suits setups that need separate audio paths

Buyers connecting a game console, streaming stick or Blu-ray player to a TV while routing sound to a soundbar, amplifier or headphones will find the dual audio outputs convenient. The extractor does not decode Dolby Digital Plus, so systems that require that format on the optical or analogue outputs should look at a different device. It also provides only one HDMI input, so installations needing switching between several sources are not supported.

Maximum resolution 3840 x 2160 at 60 Hz

This single specification determines whether the extractor matches the source and display capabilities. If the installation requires 4K at higher refresh rates, HDR metadata pass-through or HDCP 2.2, this unit will not meet those needs.

Highlights

  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Three EDID modes — TV, 2.0 CH, 5.1 CH — match your sound system
  • 18 Gbps bandwidth carries 4K 60 Hz, 3D and deep colour up to 30 bit
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and other high-res formats
  • Compact 5.59 × 3.15 × 1.26 in unit includes 5 V power supply

Specifications

BrandLUOM
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

How far can the HDMI cables run at 4K 60 Hz before signal loss becomes the limiting factor?

With AWG26 standard cables the input and output can each reach 32.8 ft at 4K 60 Hz.

Does the extractor draw enough power to need active cooling or generate noticeable heat during all-day use?

The unit ships with a 5 V power adaptor and has no fan; typical operation stays cool enough for continuous use.

What source device and display must I already own to use the HDMI input and HDMI output?

Any HDMI source up to 4K 60 Hz and an HDMI display or projector with an HDMI port.
