Small black box with HDMI, optical and 3.5mm ports

LUOM

LUOM OZV8C 4K@60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-ZY80-3Z3S4

Extracts audio from a 4K 60 Hz HDMI source to optical SPDIF and 3.5 mm stereo outputs while passing video through unchanged

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to SPDIF and 3.5mm while passing 4K@60Hz video
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and 5.1CH via optical output
  • Three EDID modes — TV, 2.0CH stereo, 5.1CH surround — match your audio gear
  • 18Gbps bandwidth carries 3840 x 2160 at 60Hz with 30-bit deep colour
  • Compact 5.59 x 3.15 x 1.26in unit powered by included 5V adapter

What this device does

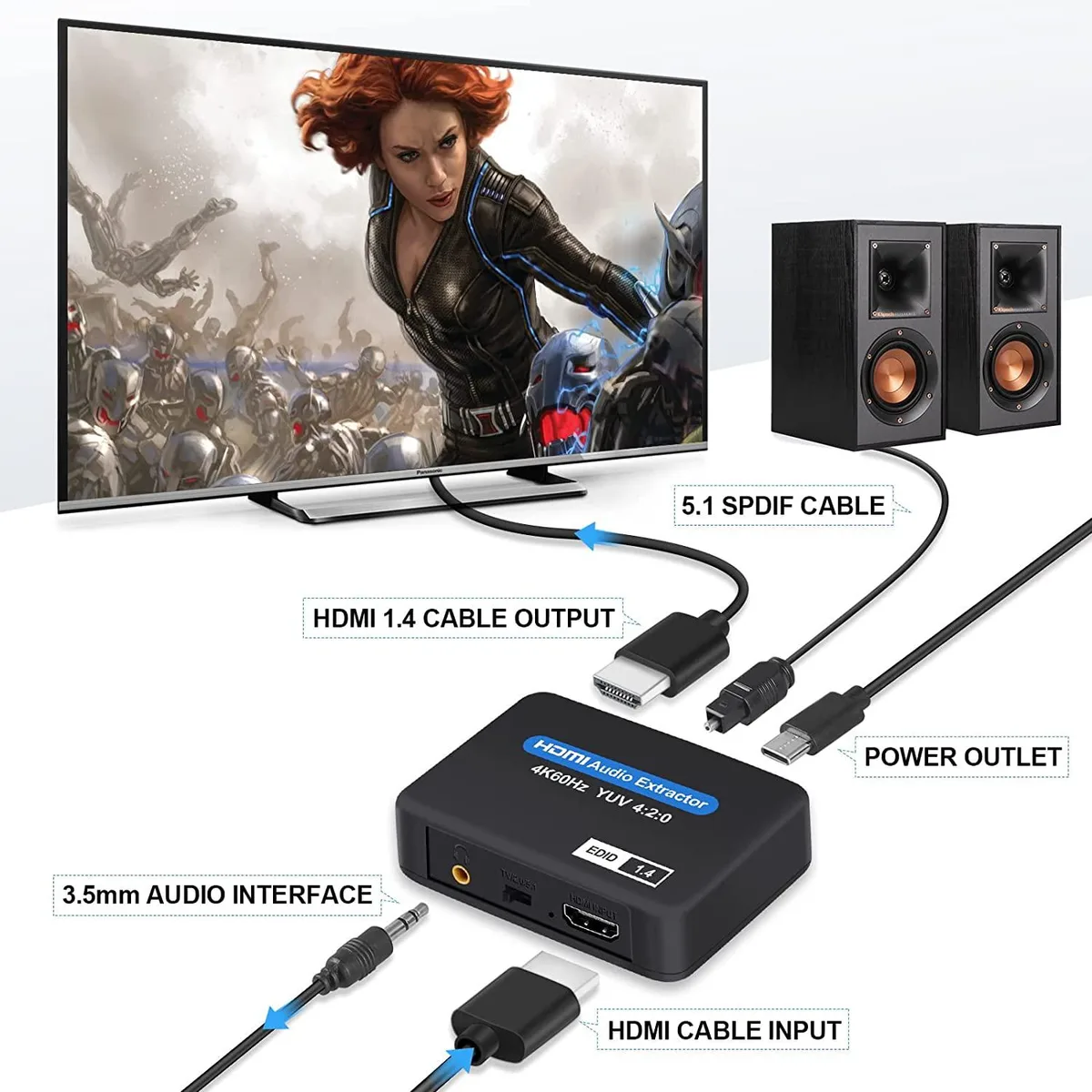

The LUOM OZV8C extracts audio from a single HDMI source and delivers it through both an optical Toslink SPDIF port and a 3.5 mm stereo jack while passing the video onward through an HDMI output. It handles resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and supports 3D, HDCP 1.4 and deep colour up to 30 bit.

Check your source and cables

Verify that your source device outputs HDMI and that the audio format you need is among the supported types such as LPCM 7.1, DTS-HD or Dolby TrueHD; Dolby Digital Plus is not supported. The extractor requires the included 5 V power adaptor, and cable runs up to 32.8 ft are possible with AWG26 HDMI leads.

Who this suits and who it does not

This unit suits users who need to send audio from a streaming stick, console or laptop to a soundbar, amplifier or headphones while keeping the display connected. It is not for installations that require Dolby Digital Plus decoding, HDCP 2.2 compliance or more than one HDMI input.

Highlights

  • Extracts audio to SPDIF and 3.5mm while passing 4K@60Hz video
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and 5.1CH via optical output
  • Three EDID modes — TV, 2.0CH stereo, 5.1CH surround — match your audio gear
  • 18Gbps bandwidth carries 3840 x 2160 at 60Hz with 30-bit deep colour
  • Compact 5.59 x 3.15 x 1.26in unit powered by included 5V adapter

Specifications

BrandLUOM
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

What comes in the box and do I need any extra cables?

The package includes the extractor, a 5 V power adaptor and a user manual. You will need to supply your own HDMI cables and either an optical Toslink or 3.5 mm audio cable for the extracted sound.

How do I choose between the TV, 2.0 CH and 5.1 CH audio modes?

Select TV mode to pass the display's native format, 2.0 CH for stereo PCM on both optical and 3.5 mm outputs, or 5.1 CH to send multichannel audio through the optical port while the 3.5 mm jack stays stereo.

What does the 4K at 60 Hz rating mean for my setup?

It supports 3840 x 2160 at 60 Hz with 18 Gbps bandwidth, HDCP 1.4 and 30-bit deep colour, so a 4K source such as a Fire Stick or Xbox can drive a 4K display while audio is split to a soundbar or amplifier.
