Black rectangular HDMI audio extractor with HDMI, optical and 3.5mm ports

LUOM

LUOM OZV8 HDMI Audio Extractor 4K 60Hz 18Gbps SPDIF 3.5mm AUX

SKU CH-EHAP-NPS3K

Extracts audio from a 4K 60 Hz HDMI 2.0 signal to optical SPDIF and 3.5 mm AUX while passing video through at 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to soundbar via optical or 3.5 mm jack
  • Pass 4K 60 Hz video untouched at 18 Gbps
  • Switch EDID between pass-through stereo and 5.1 channels
  • Deep colour 24 30 36 bit with HDR10 support
  • Compact 5.59 x 3.15 x 1.26 inch unit powered by 5 V adapter

Audio extraction for 4K 60 Hz sources

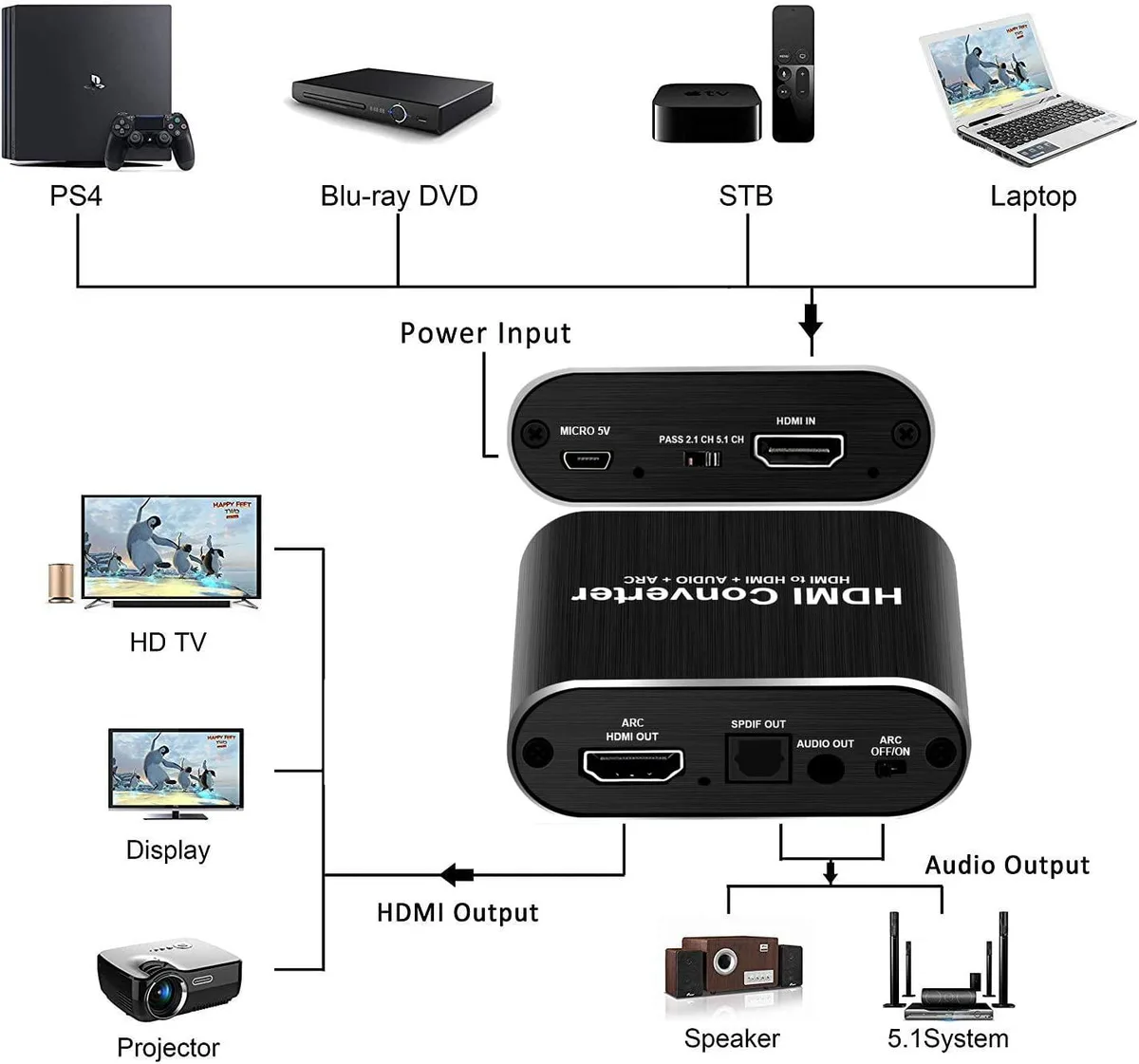

The LUOM OZV8 splits one HDMI 2.0 input into a mirrored HDMI output plus separate optical Toslink and 3.5 mm analogue audio feeds. It handles 4K at 60 Hz with 18 Gbps bandwidth and supports 24-bit, 30-bit and 36-bit deep colour. EDID switches select pass-through, 2-channel or 5.1-channel audio modes. A 5 V power adapter and HDMI cable are included.

Suited for soundbars and amplifiers lacking HDMI

Installers connecting a 4K source to a display while routing digital or analogue audio to an external receiver will find the dual audio outputs convenient. The extractor does not work with Bluetooth headsets and cannot accept an AV receiver as the HDMI source device. Users needing HDMI ARC return-channel extraction or more than one HDMI output should consider other solutions.

18 Gbps bandwidth at 4K 60 Hz

The single most decisive specification is the 18 Gbps maximum data rate, which allows full 4K 60 Hz 4:4:4 signals to pass through the HDMI output while audio is simultaneously extracted to optical and 3.5 mm ports. If the source or display cannot meet 4K 60 Hz requirements the extractor will fall back to lower supported resolutions.

Highlights

  • Extract audio to soundbar via optical or 3.5 mm jack
  • Pass 4K 60 Hz video untouched at 18 Gbps
  • Switch EDID between pass-through stereo and 5.1 channels
  • Deep colour 24 30 36 bit with HDR10 support
  • Compact 5.59 x 3.15 x 1.26 inch unit powered by 5 V adapter

Specifications

BrandLUOM
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack

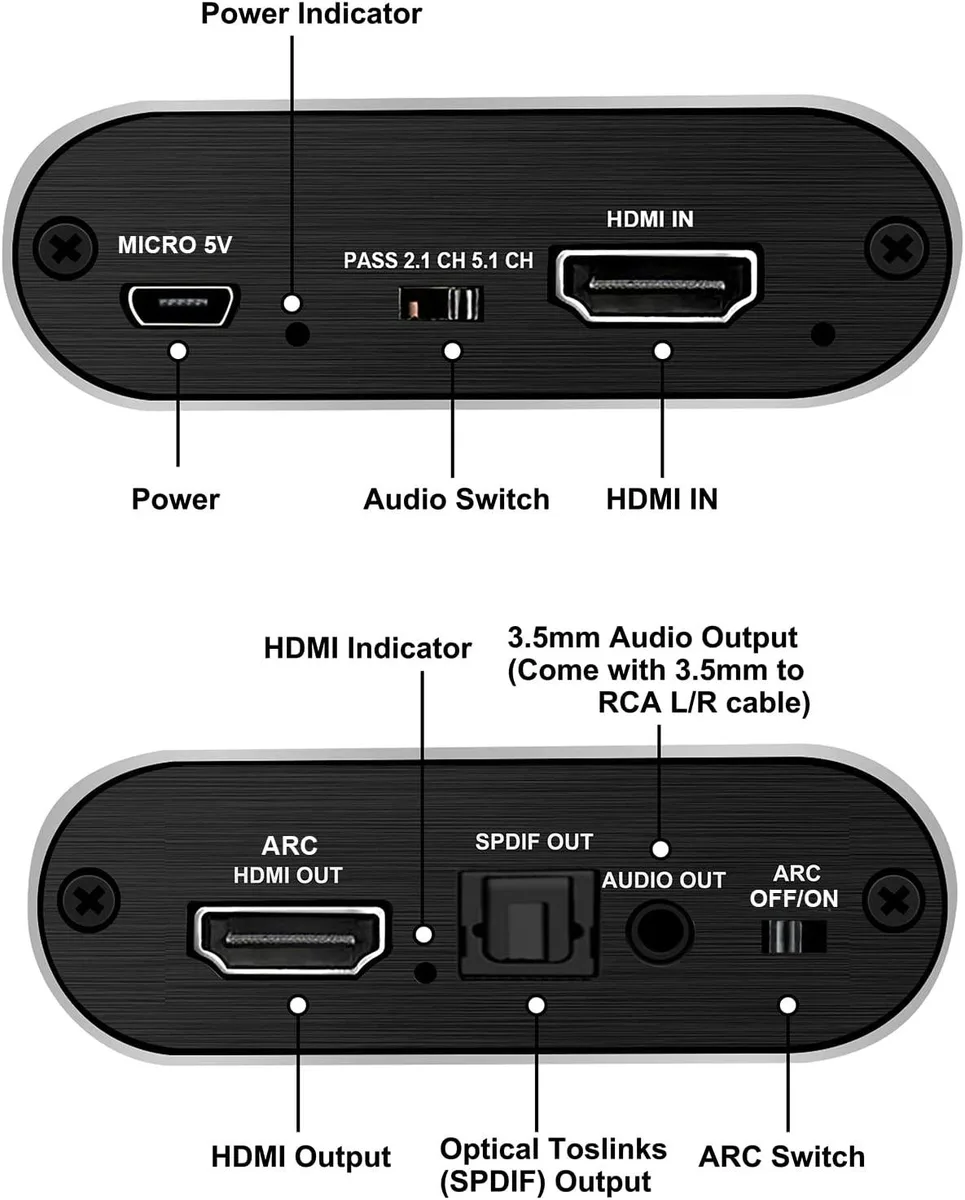

SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Should I choose the Pass, 2CH or 5.1CH EDID setting on the OZV8?

Use Pass to keep the source audio format unchanged, 2CH for stereo-only devices such as a soundbar or headphones, and 5.1CH when your receiver or amplifier supports Dolby Digital or DTS surround sound.

What does the 18Gbps bandwidth mean when I connect a 4K 60Hz source?

It carries the full 4K 60Hz 4:4:4 signal with HDR10 and deep colour up to 36‑bit without compression, so the HDMI output remains identical to the input.

Does the HDMI 2.0 interface limit the audio formats I can extract?

HDMI 2.0 passes multi‑channel PCM, Dolby Digital and DTS to the optical and 3.5mm ports, but it cannot transport newer object‑based codecs such as Dolby Atmos or DTS:X.
